- Description

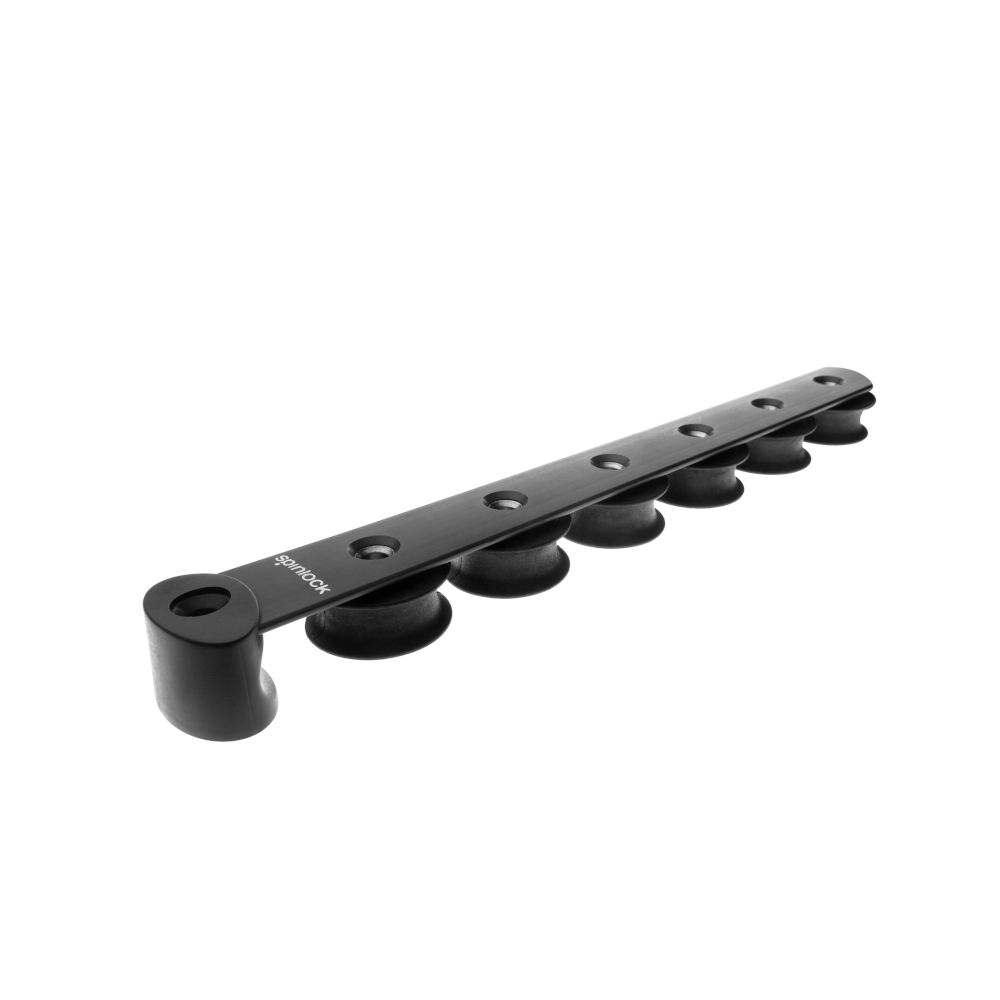

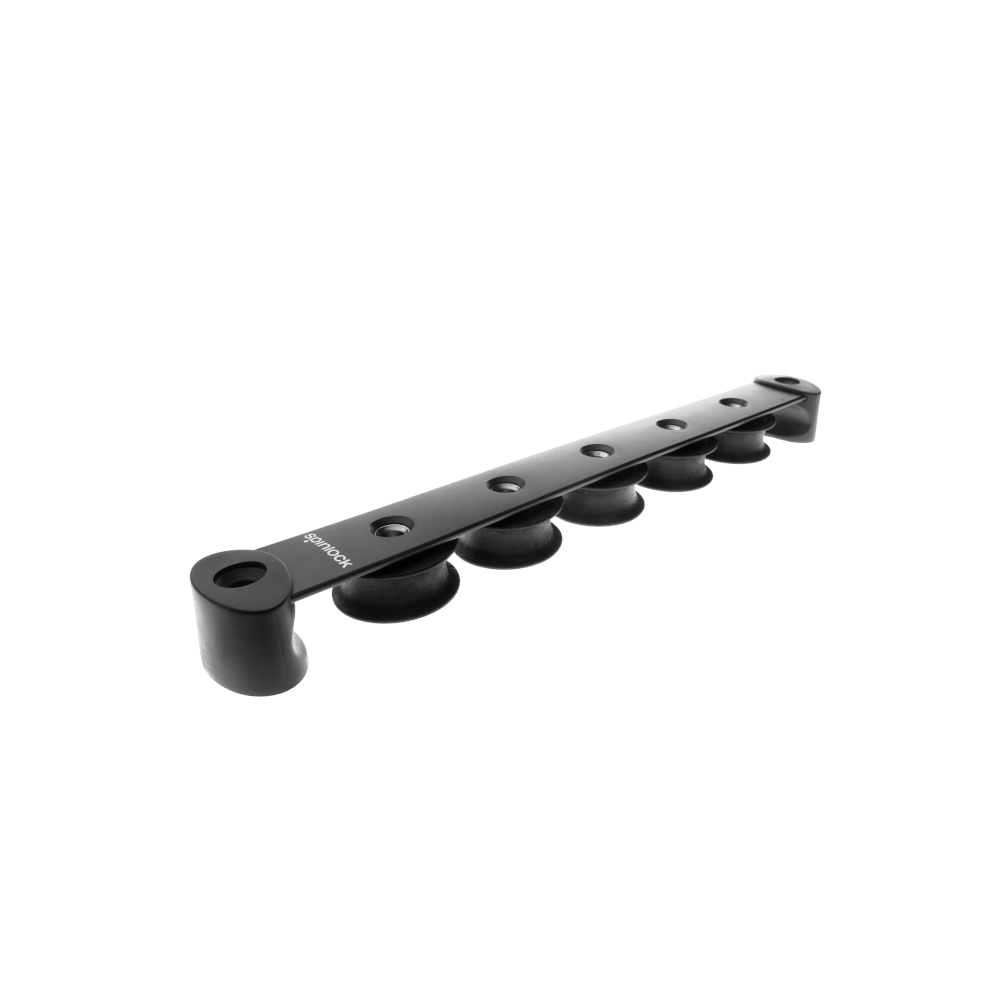

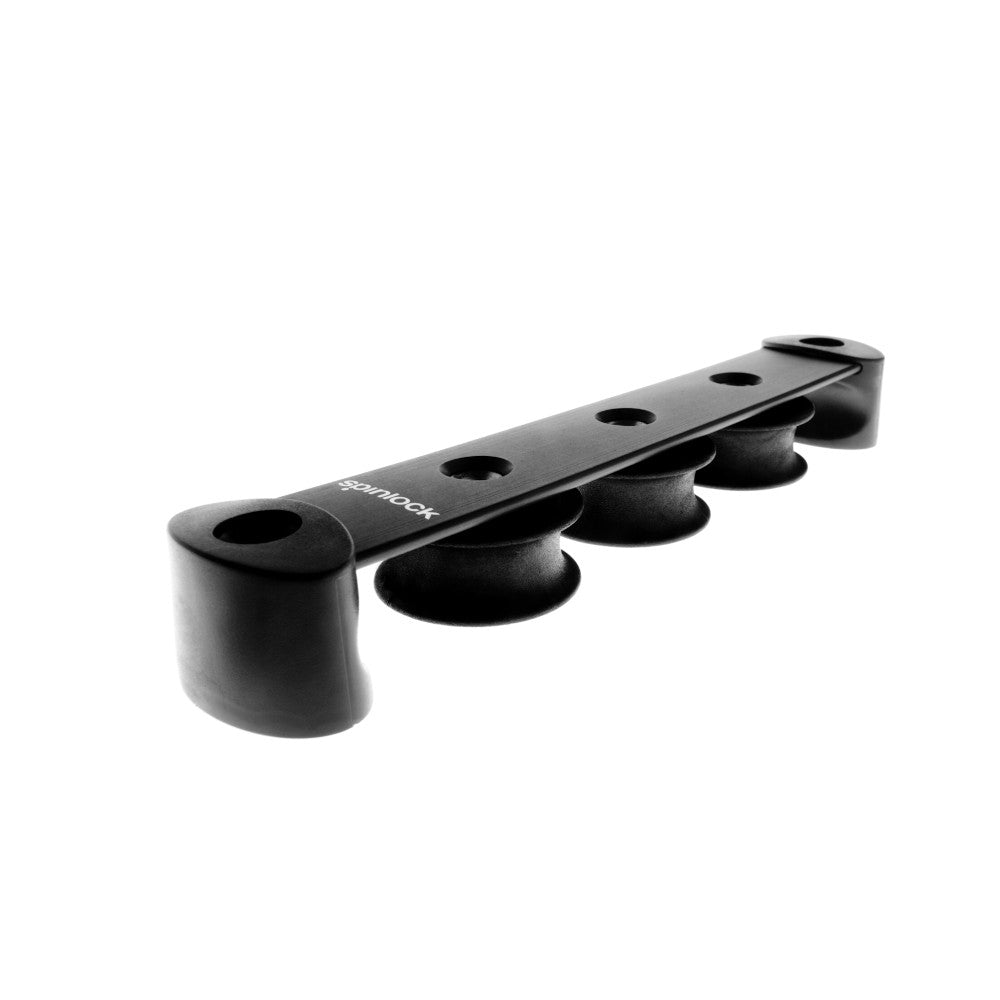

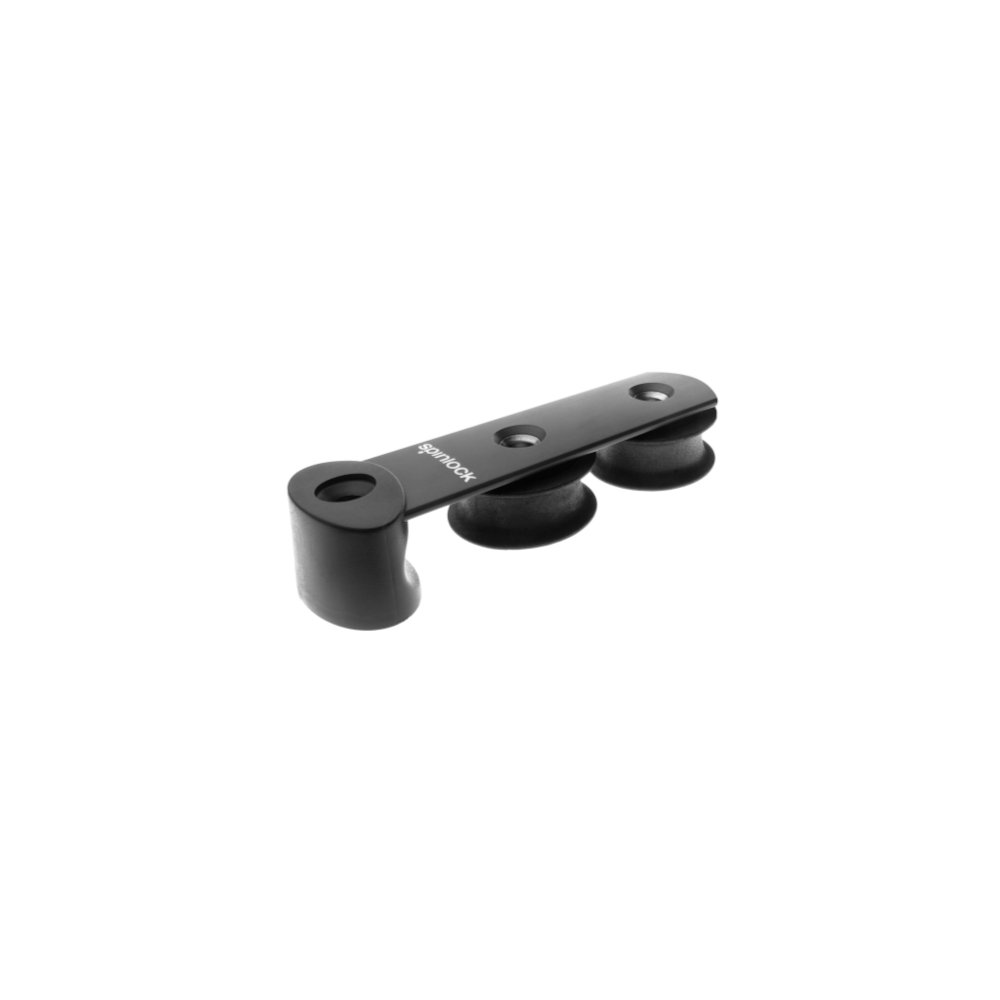

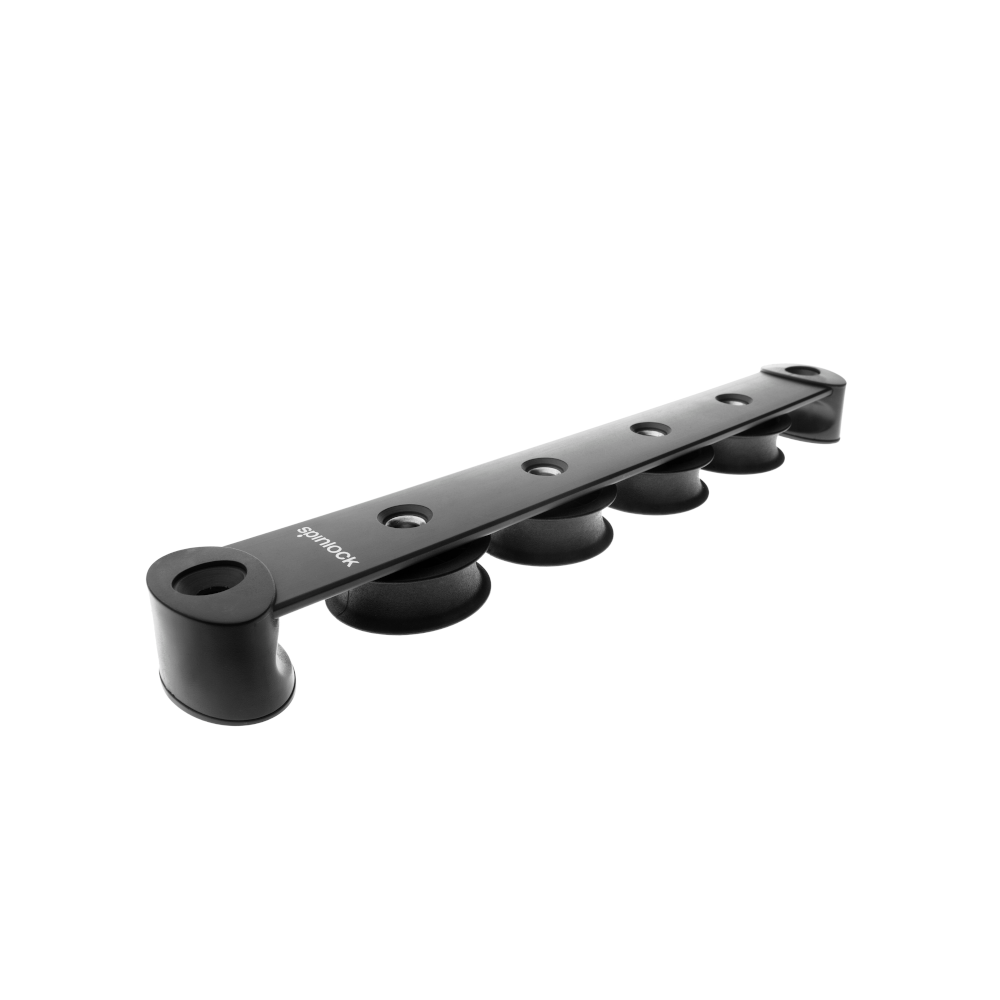

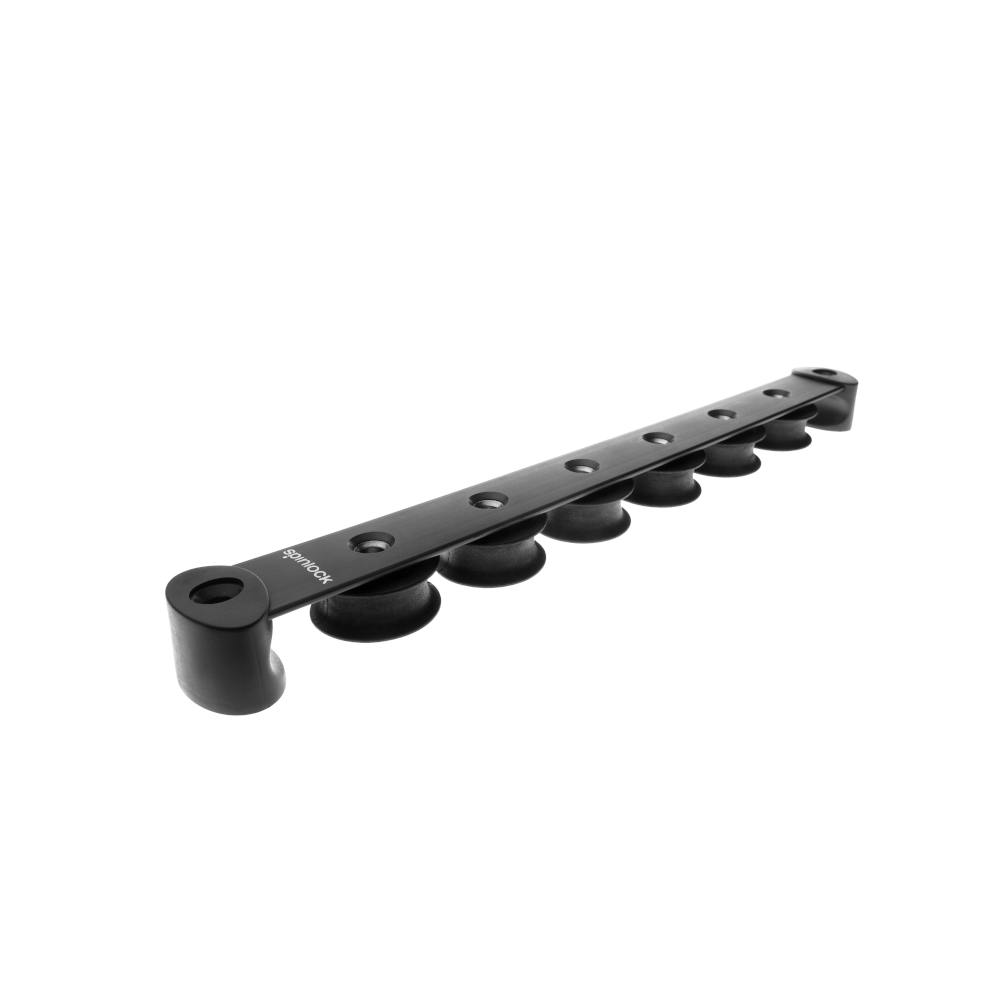

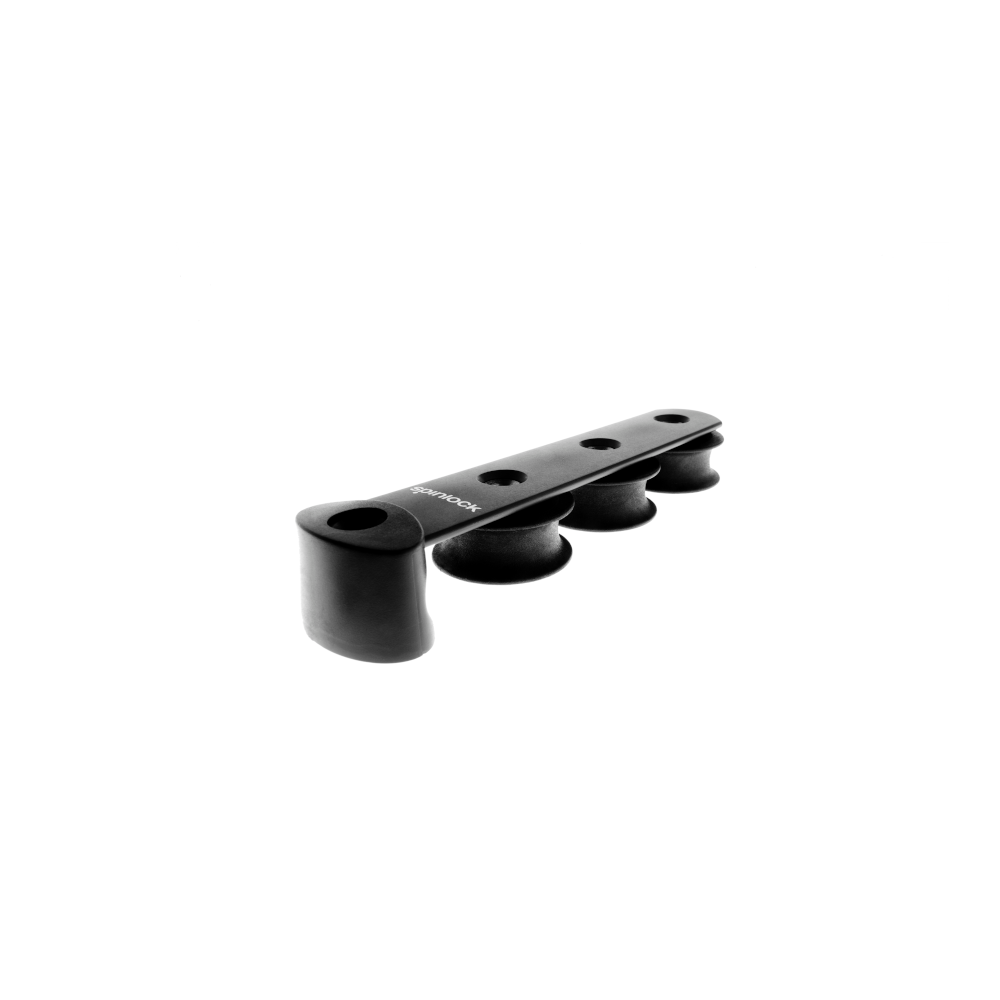

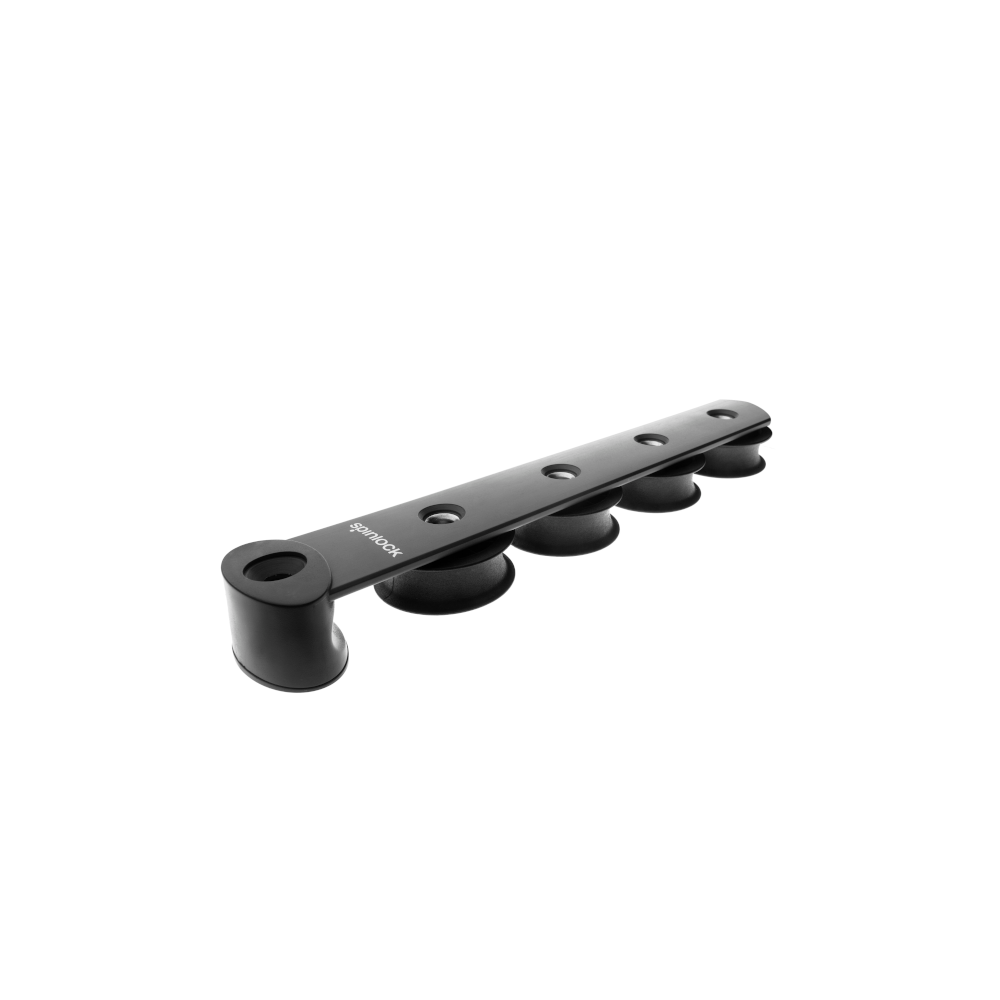

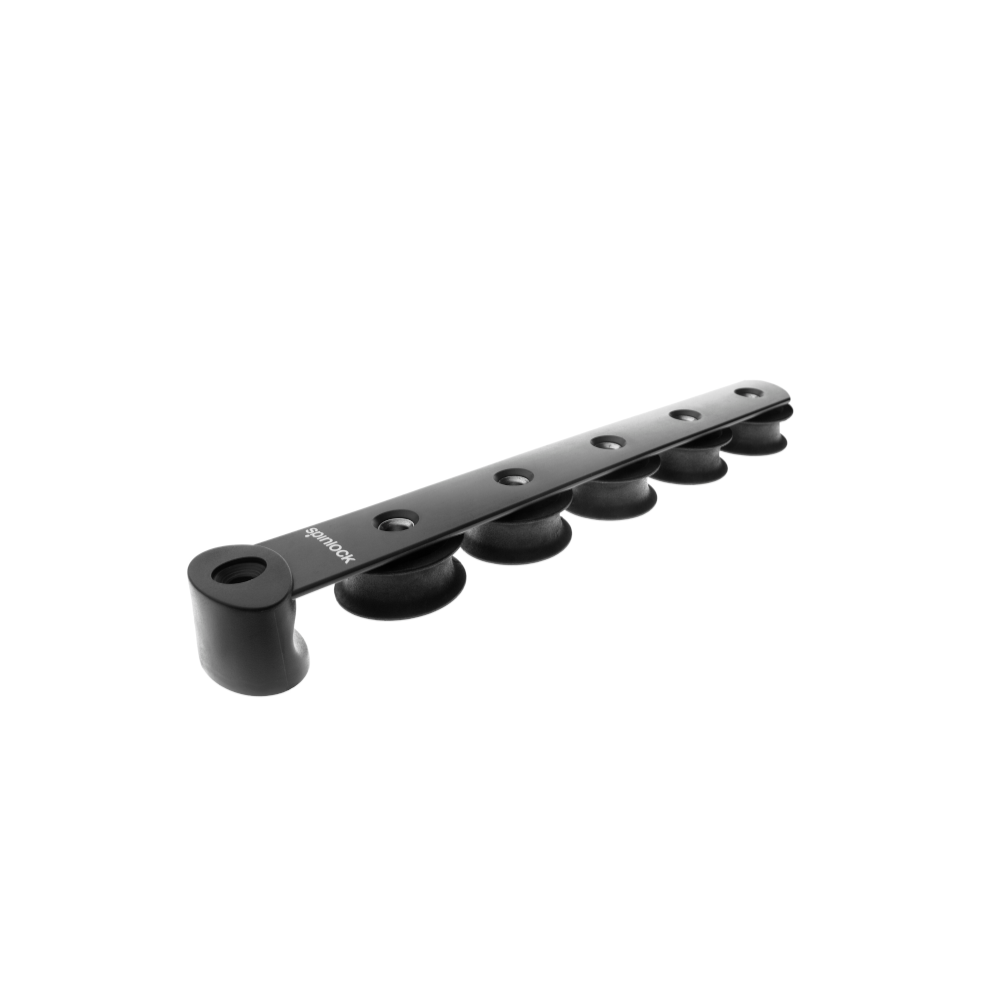

Spinlock T38 Organisers
T-Series Organisers lead multiple lines back from the mast to banks of powerclutches
Features
- Minimal overall length
- Efficient bearings surface reduces winch effort and increases halyard life
- Integral end fairings for safe side loading
- Asymmetric version reduces deck footprint and saves weight
- Can ‘stack’ for limited deck area or adding extra capacity.
- Vari-camber feature: Designed to follow the curve of the deck when fitted
- 50mm sheave versions, T50, available
Specifications
Sheave Diameter/Type
- 38mm (1 1/2") composite
SWL per sheave
- 600kg (1320lbs)
Total SWL per unit
- No of sheaves x 300kg (660lbs)
Line Diameter
- Up to 12mm (1/2")
Weights
- 115g (4.0oz) for 2 sheave organiser
- 30g (1.1oz) per extra sheave
Fasteners
- 2 x M6 (1/4") CSK (not supplied)
(Special Order Item)
Price Per: 1 EA
