- Description

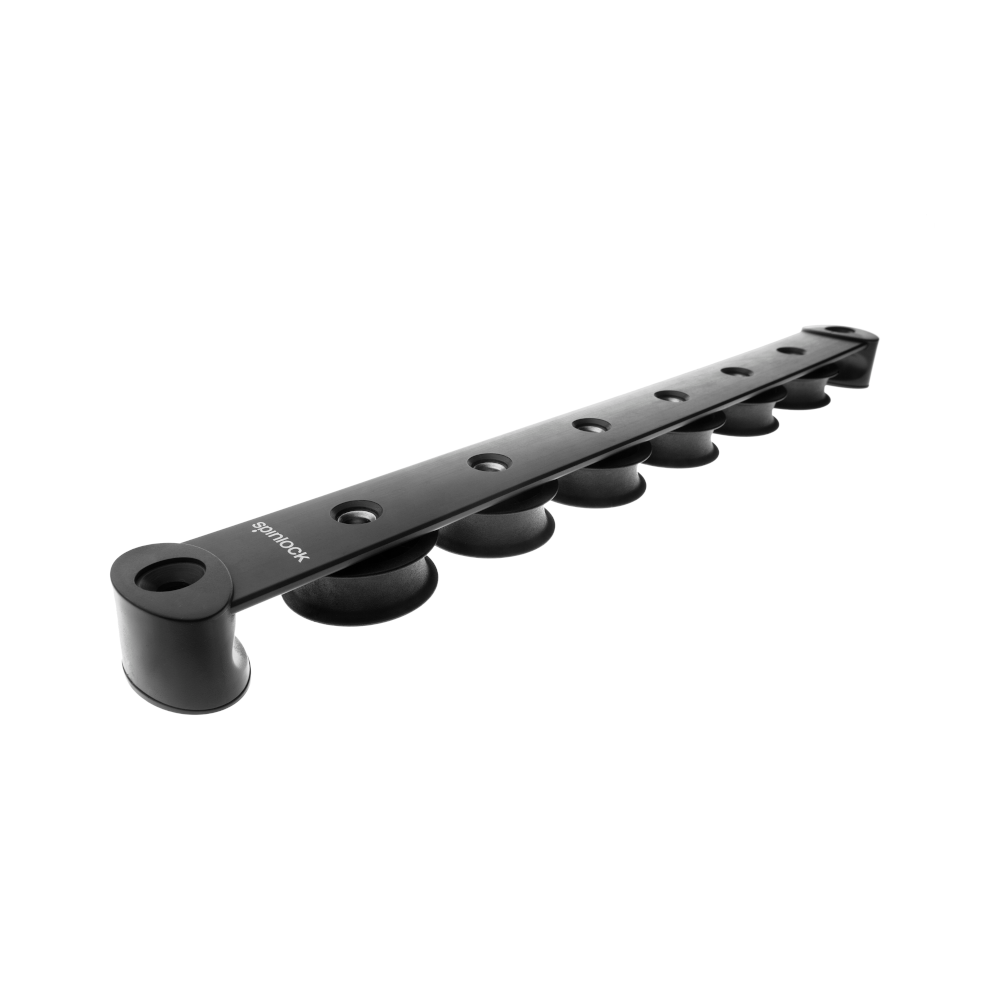

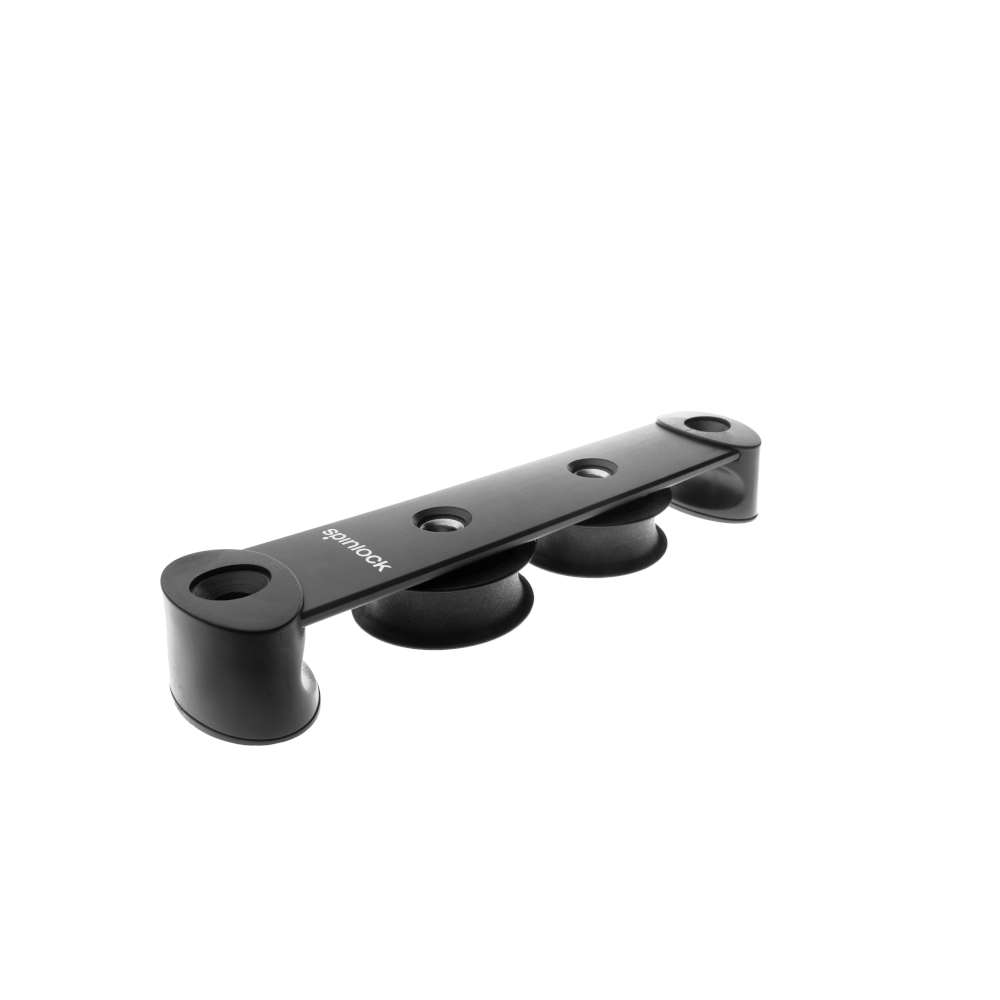

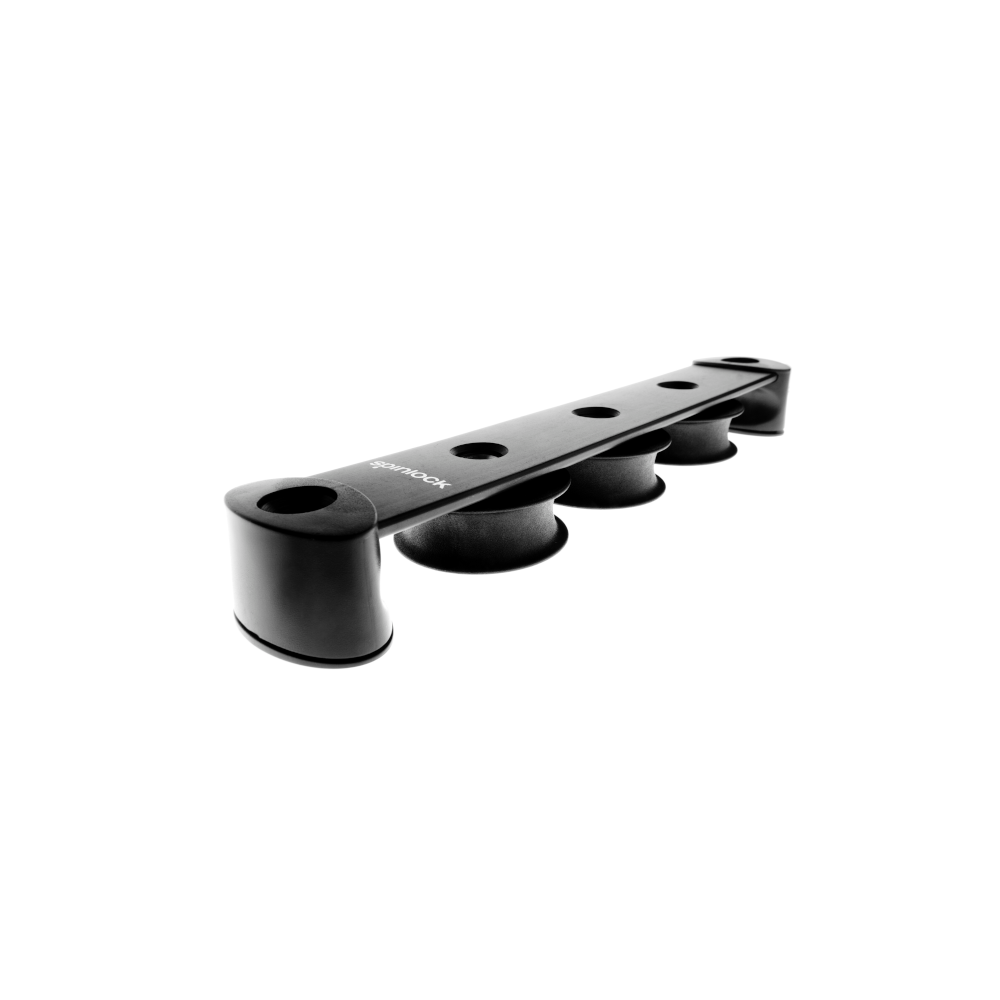

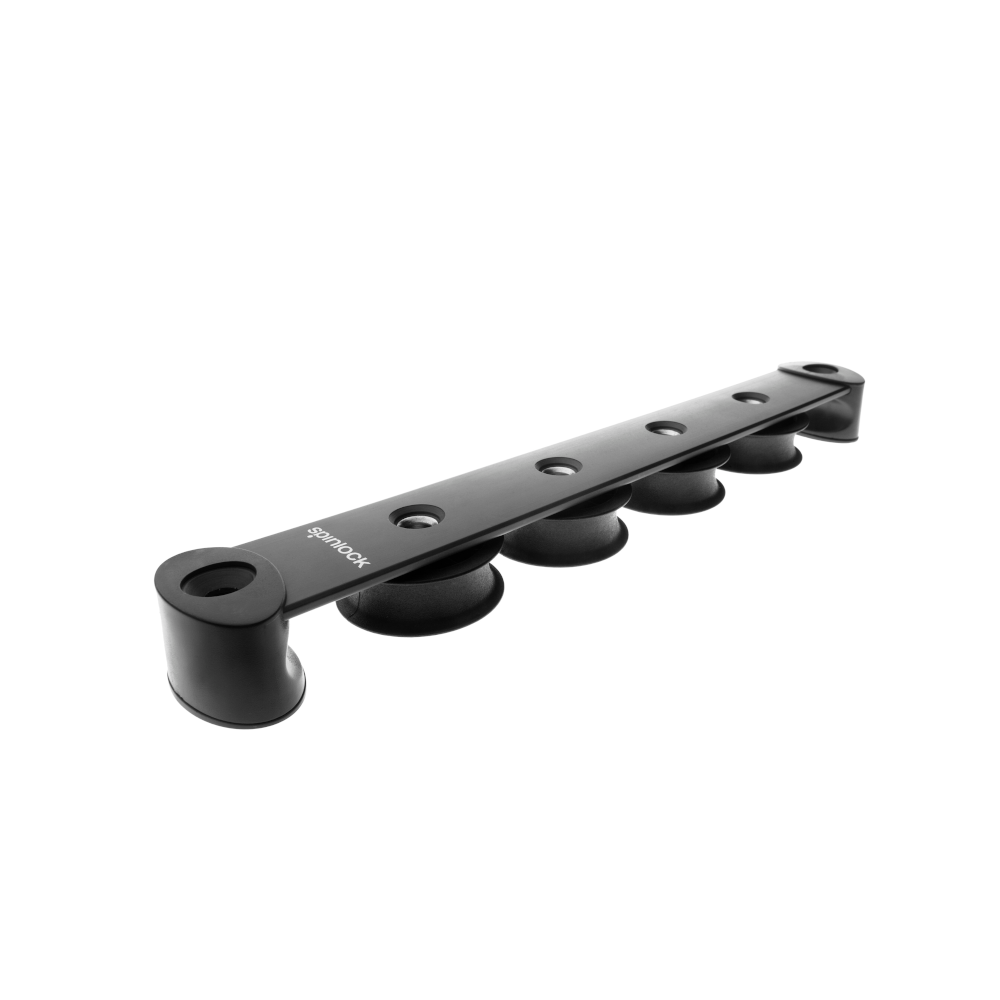

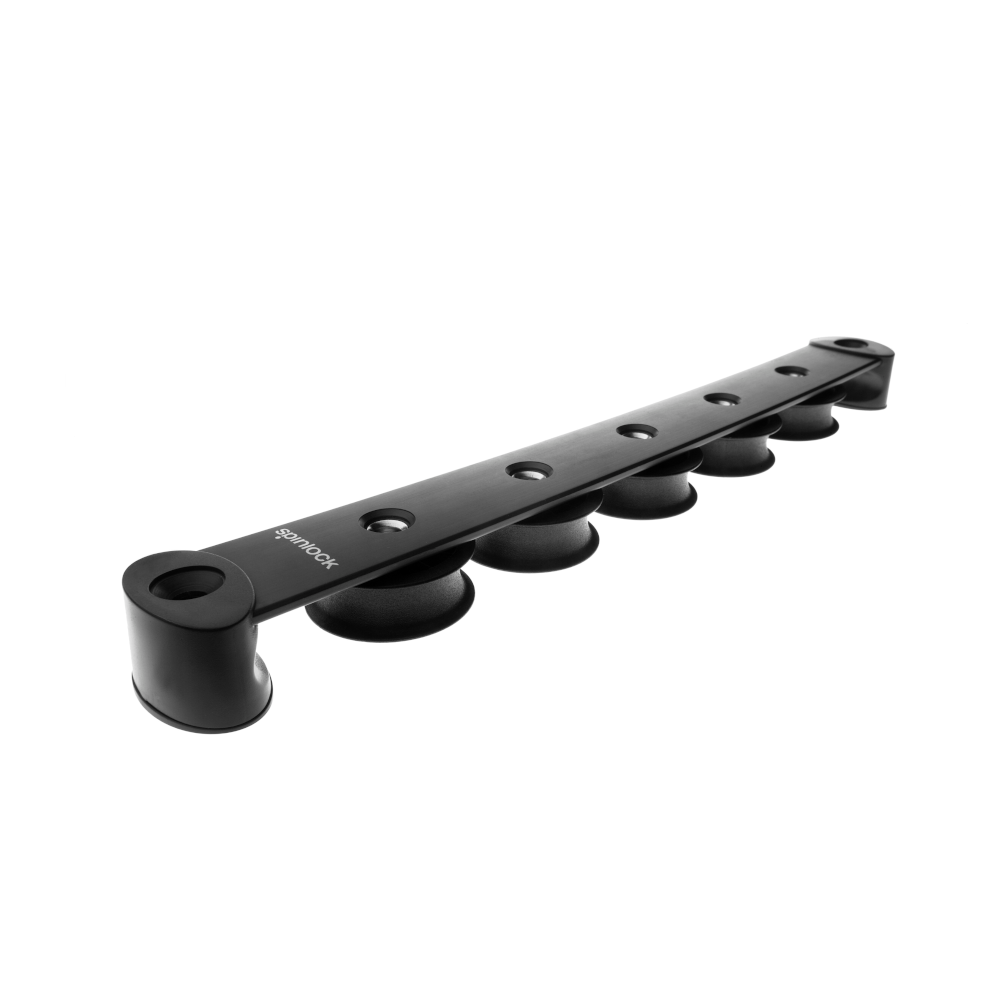

Spinlock T50 Organisers
T-Series Organisers lead multiple lines back from the mast to banks of powerclutches
Features
- Minimal overall length
- Efficient bearings surface reduces winch effort and increases halyard life
- Integral end fairings for safe side loading

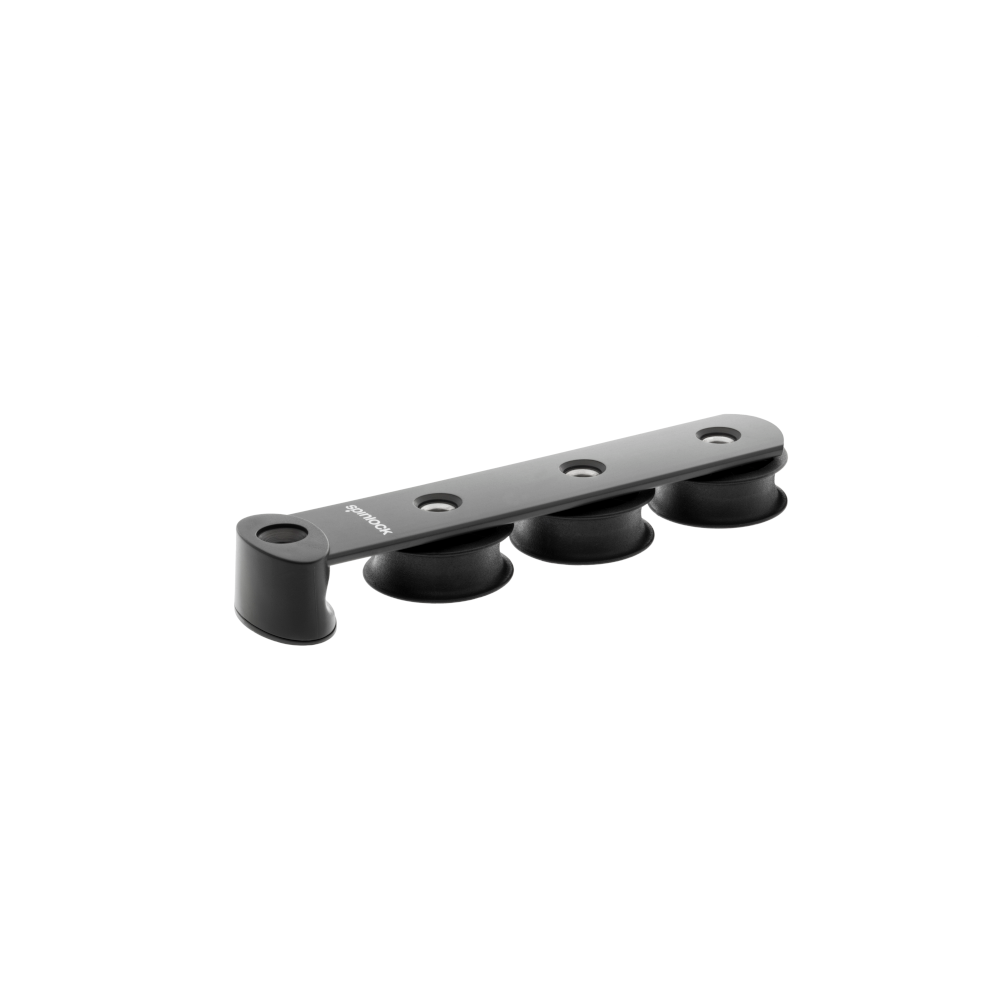

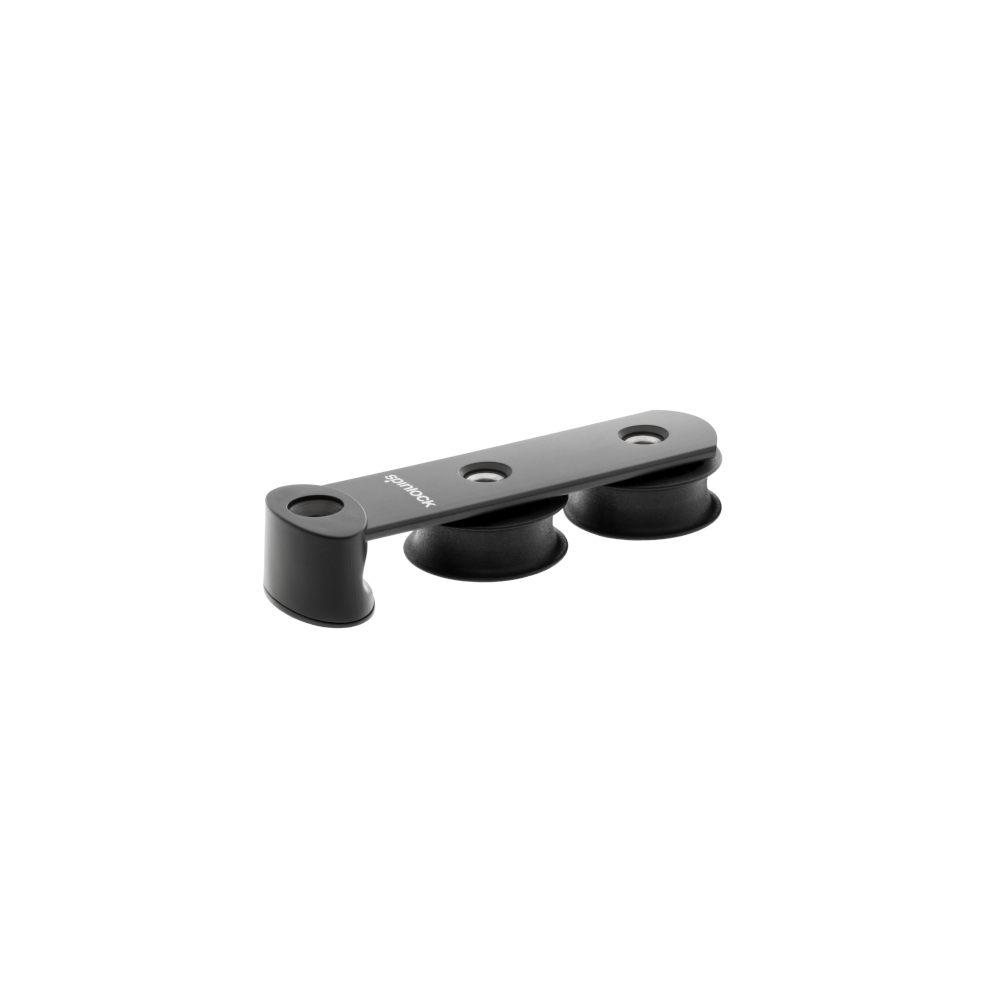

- Asymmetric version reduces deck footprint and saves weight
- T50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
- Vari-camber feature: T50 Organisers are designed to follow the curve of the deck when fitted
Specifications
Sheave Diameter/Type
- 50mm (2") composite
SWL per sheave
- 1000kg (2200lbs)
Total SWL per unit
- No of sheaves x 500kg (1100lbs)
Line Diameter
- Up to 14mm (9/16")
Weight
- 195g (6.89 oz) for 2 sheave organiser
- 65g (2.29 oz) per extra sleeve
Fasteners
- M8 (1/4") CSK (not supplied)
(Special Order Item)
Price Per: 1 EA
