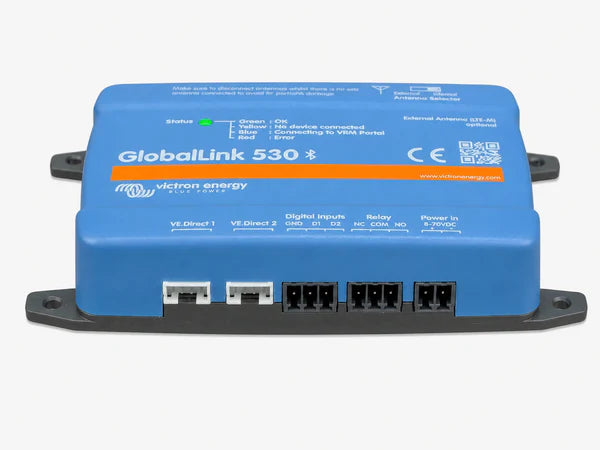

Victron GlobalLink 530 - ASS030543030

Reliable Off-Grid System Visibility Without a Full GX Device

The Victron GlobalLink 530 provides a streamlined path to VRM remote monitoring for installations where a full GX device is not required. It connects compatible Victron equipment directly to the Victron Remote Management portal over 4G LTE, giving you access to live and historical data such as battery voltage, state of charge, solar yield, and temperature readings. This makes it an effective solution for off-grid solar monitoring, caravan power systems, marine installations, remote pumps, telemetry sites, and other unattended locations.

By bridging the gap between simple local readouts and full system control, the GlobalLink 530 helps reduce site visits, lower maintenance costs, and improve fault response times. It is purpose-built for users who need dependable data access without the complexity or expense of a larger monitoring platform.

Factory-Fitted 5-Year Prepaid SIM

One of the standout features of the GlobalLink 530 is the factory-installed 1NCE SIM with 5 years of 4G LTE connectivity included. This eliminates the need to source, activate, and manage a separate data plan, simplifying deployment and reducing ongoing administrative overhead. The device supports LTE Cat 1 with up to 10 Mbps download and 5 Mbps upload, as well as fallback to GSM, GPRS, and EDGE networks. For installations in areas with weak signal, an SMA connector for an optional external antenna is provided, allowing you to improve reception with a separately available outdoor antenna.

Flexible Connectivity for Victron Ecosystems

The GlobalLink 530 features two isolated VE.Direct ports for hard-wired connection to compatible Victron devices such as MPPT solar chargers, battery monitors, and inverters. In addition, Bluetooth Low Energy (BLE) support allows you to bring in data from up to 10 Victron Smart products and compatible RuuviTag sensors for environmental monitoring (temperature, humidity, air pressure). Two digital inputs and a NO/NC relay (rated up to 30 VDC / 2 A or 125 VAC / 0.5 A) extend its utility for basic status monitoring and simple switching tasks.

Key Features

• 5-year prepaid 4G LTE SIM included for out-of-the-box connectivity
• Dual isolated VE.Direct ports for direct wired device connections
• Bluetooth Low Energy supports up to 10 Victron Smart devices and RuuviTag sensors
• Wide 8–70 VDC supply range compatible with 12V, 24V, and 48V systems
• Compact wall-mount design (123 x 67 x 23 mm) with internal antenna and SMA external antenna option
• Digital inputs and NO/NC relay for status monitoring and control
• Custom SIM support for regions or networks not covered by the prepaid SIM

Built for Harsh and Remote Environments

With an operating temperature range of -20°C to +50°C and a robust, compact enclosure, the GlobalLink 530 is engineered to perform in challenging conditions. Its low power consumption (as low as 5 mA at 48V with Bluetooth disabled and relay open) makes it suitable for energy-constrained off-grid sites. The device is configured via the VictronConnect app over Bluetooth, allowing straightforward setup without additional tools.

Applications

• Caravans and RVs: Keep track of battery health and solar performance while on the road
• Marine and coastal installations: Monitor essential systems on boats and remote docks
• Off-grid sheds and cabins: Verify system status without travelling to the site
• Telemetry and pumping stations: Receive alerts and log data from unattended equipment
• Backup and standby systems: Ensure generators and battery banks are ready when needed

Take Control of Your Remote Energy System

Add the Victron GlobalLink 530 to your installation and gain immediate access to critical system data through VRM. Whether you are managing a single off-grid site or a fleet of mobile power systems, this gateway delivers the visibility you need to make informed decisions and reduce downtime. Order yours today and experience the confidence that comes with reliable remote monitoring.
