- Description

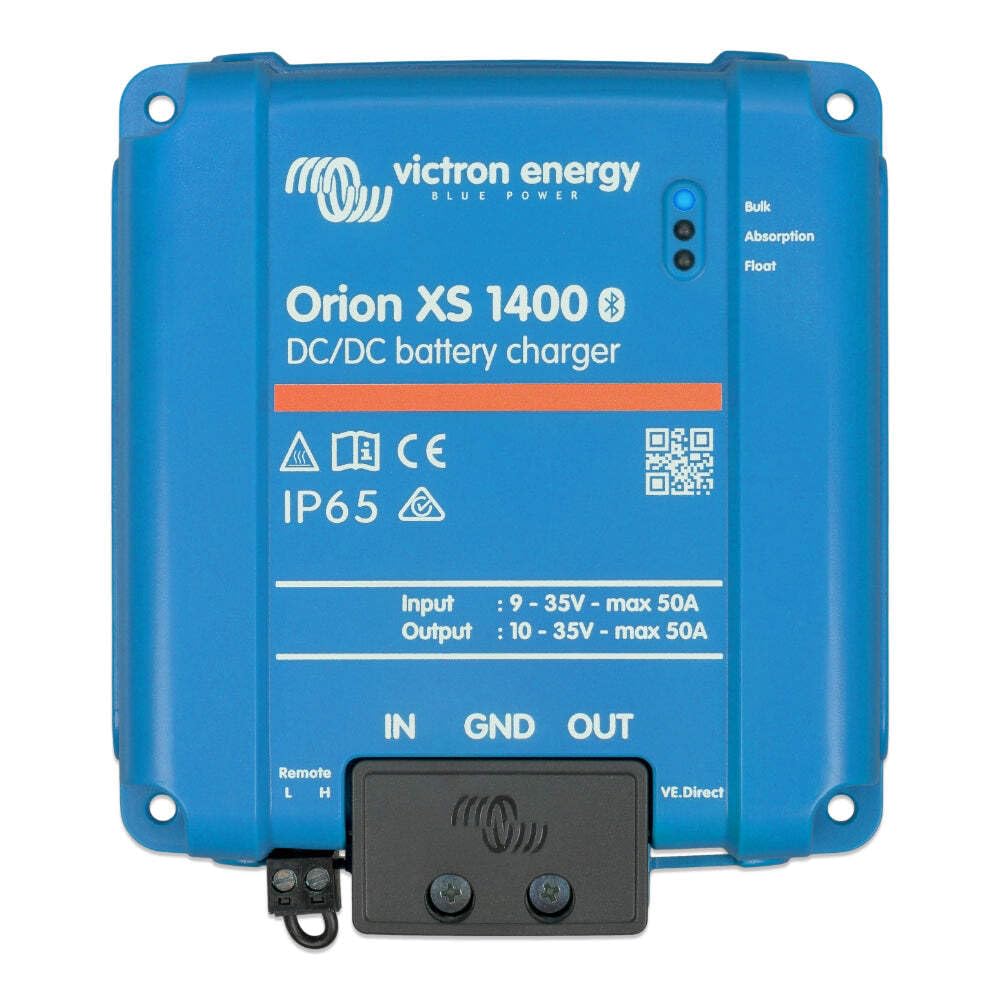

Victron Energy Orion XS 1400 DC-DC Battery Charger, 1400 (Dual Voltage: 12 & 24V) - ORI242417040
The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.
This device not only ensures top-tier performance but also safeguards your system.
Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminium circuit board technology means less heat, without the need for fans.
The XS 1400 can handle both 12V and 24V input and output, while the standard XS is limited to 12V to 12V applications.
The power of a truly smart
DC/DC charger
In parallel, to increase the output current
An unlimited number of Orion XS devices can be connected in parallel, for easy output current scaling to meet system requirements.
Smart alternator compatibility
With its built-in engine running detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps in retrieving a proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.
Adaptive charge algorithm
The Orion XS features customizable and preset charging algorithms for lithium and lead-acid batteries, ensuring optimal recharging, for both shallow and deep discharges.
Complete electronic protection
The Orion XS comes equipped with comprehensive electronic protection against overload, short circuit, and excessive temperatures. It will automatically reduce the output power when the maximum product temperature is reached.
Low temperature shutdown & undervoltage protection
To prevent damage to lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.
Dust & waterproof
The Orion XS is designed to withstand dust and water pollution and has an IP65 classification.
Safely combine any alternator with any battery
Configurable Charging
Precisely adjust input and output currents using simple controls. This safeguards alternators from overloading and ensures 12V or 24V service batteries are charged correctly, particularly with intelligent alternators.

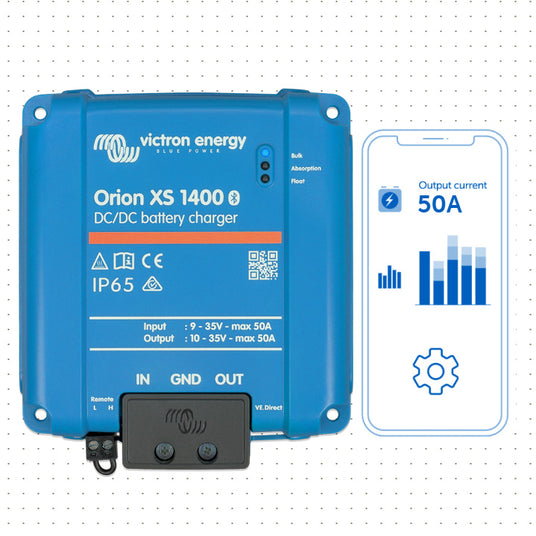

Smart has never looked so simple.
With multiple automated safety and efficiency features, the Orion XS is truly a smart addition to any vehicle or marine system with dual batteries. That doesn’t mean that it should be a complicated one. We made sure that integrating and controlling are as simple as can be.
