- Description
The BMV-700H is a high-precision battery monitor that has been
specially designed for systems with a high battery voltage ranging from
60 to 385 Volts.
These battery monitors calculate the state of charge of a battery and
keep track of the ampere-hours consumed by the battery by integrating
the current flowing in or out of the battery.

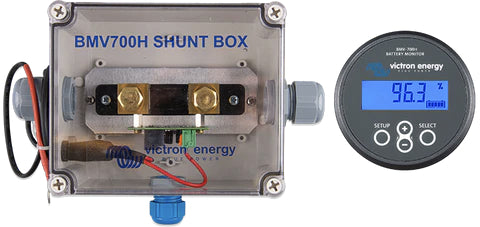

They come with a round head unit, a square bezel overlay, a screw ring
for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a
500A/50mV shunt. Because of the high voltage application, the shunt is
housed in a special enclosure.
