- Description

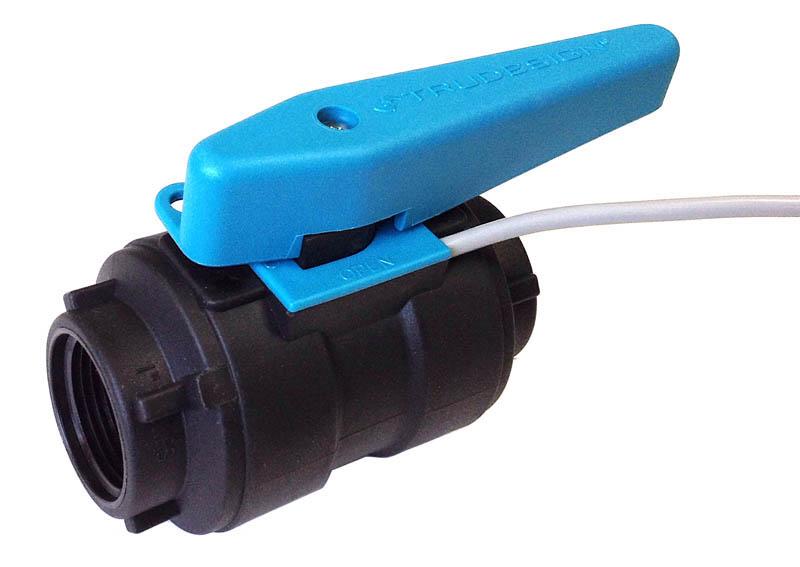

The Tru-Design Position Monitored Ball Valve is designed for marine applications, built from corrosion-resistant, glass-reinforced nylon composite. This valve features position monitoring for remote control and is perfect for both above and below the waterline. It’s chemical, UV, and temperature resistant, ensuring long-lasting performance in harsh marine environments.
Key Features:
- Corrosion & UV Resistant: Made from glass-reinforced nylon for durability and resistance to electrolysis, UV, and chemicals.
- Position Monitoring: Enables remote monitoring of valve position; ideal for engine interlock systems.
- Temperature Range: Performs in temperatures from -40°C to 100°C.
- Lightweight & Strong: Lightweight design with high tensile strength, perfect for marine environments.
- Lockable: Can be locked in the closed position, suitable for toilet waste outlets.
Specifications:
- Size: 1-1/4" NPS
- Material: Glass-reinforced nylon composite (Body), PTFE polymer (Ball & Sealing Rings)
- Thread Type: BSP or NPS Parallel
- Operating Temperature: -40°C to 100°C
- Compliance: IMCI & Bureau Veritas approved to ISO 9093-2, ABYC H-27 compliant
- Locking Feature: Yes, lockable in closed position
