- Description

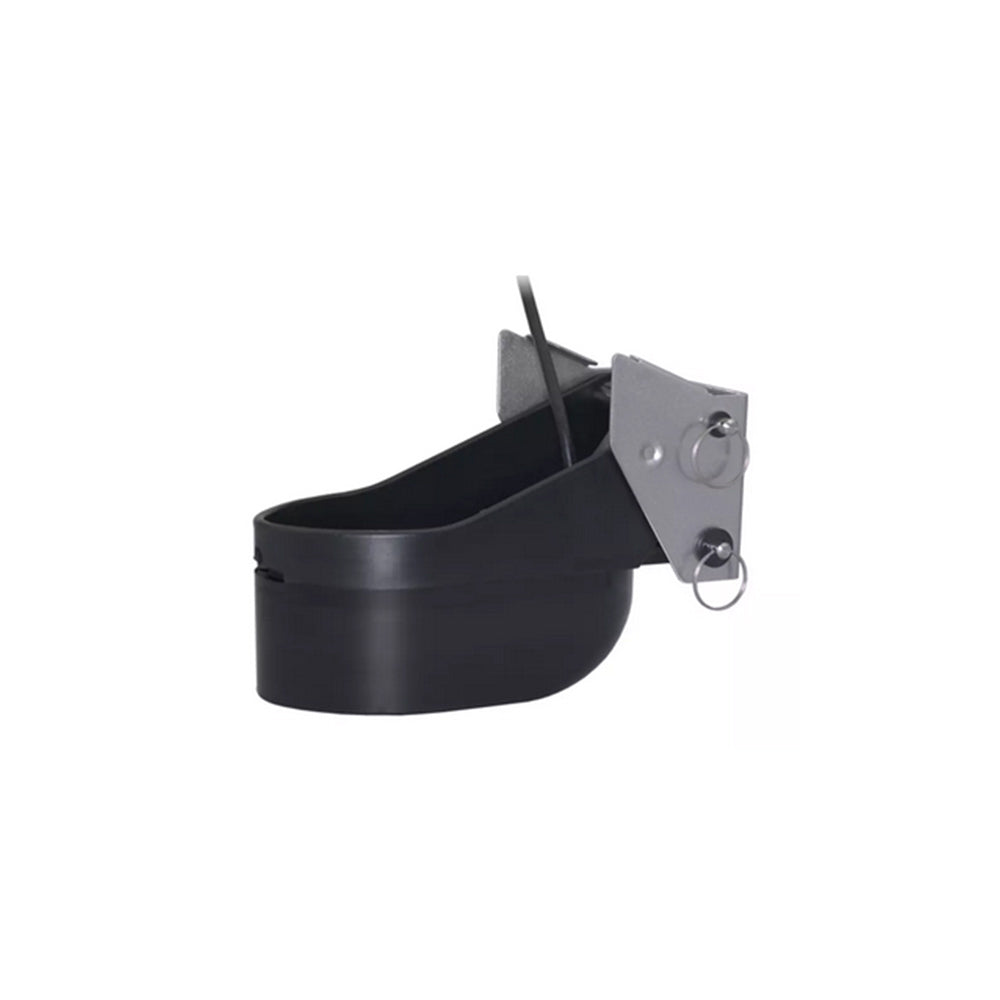

The TM265 brings CHIRP technology into a transom transducer. With up to 103kHz of CHIRP range and 8 internal ceramics, this transducer can provide great target separation in both shallow and deep water.
TM265 comes in either a Low/High (LH) configuration or a Low/Medium (LM) configuration.
The medium element will provide better shallow water coverage under the vessel, while the high element will provide better shallow water resolution.
Use the low element for deep-water detection of bottom and fish as deep as 3,000 meters (10,000 feet.)
The TM265 is fitted with an 11-pin CHIRP transducer connector that mates directly to Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470, CP570, and legacy CHIRP sonar modules.
Details
- Max Depth (Ft): 3,000 (L) / 1,000 (H)
- Frequency (KHz): 42-65 (L) / 130-210 (H)
- Beam Width: 25/16 Degrees (L) / 10/6 Degrees (H)
