- Description

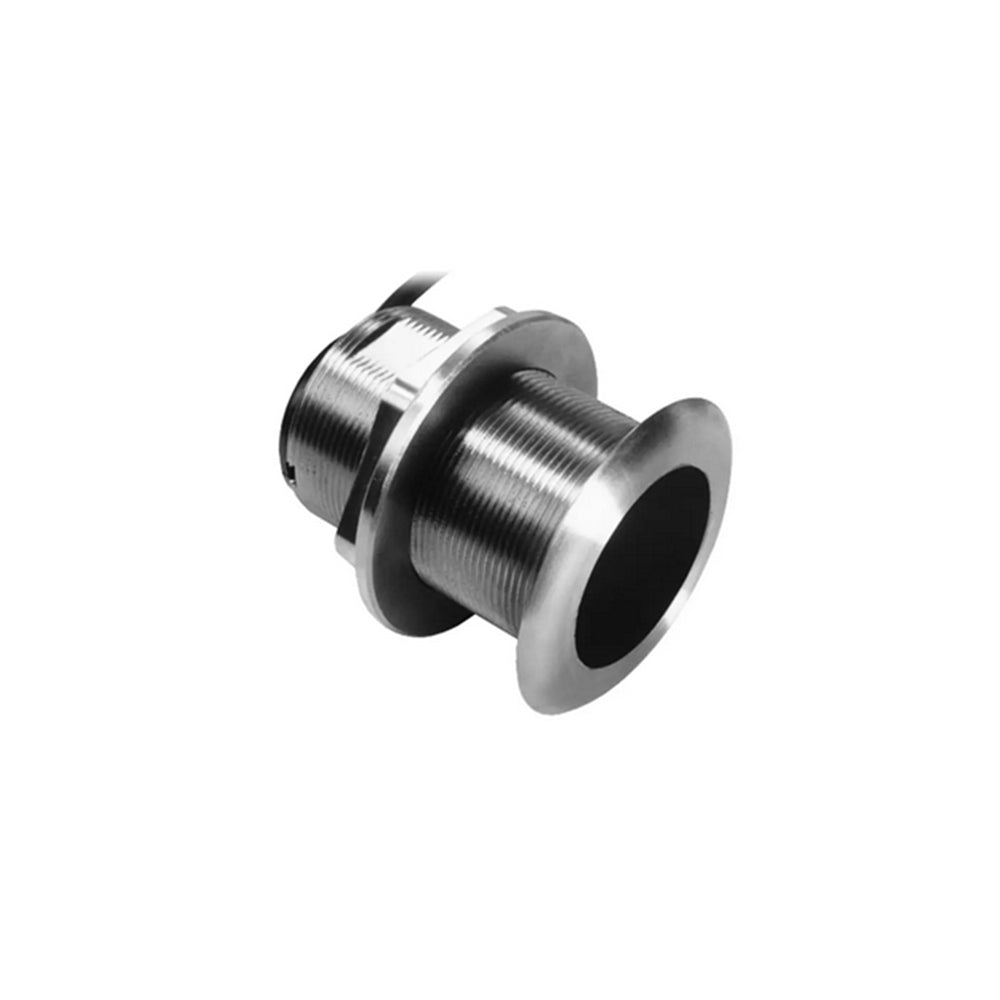

The SS60 is a stainless steel, dual-frequency (50/200 kHz) through-hull transducer with tilted element technology that compensates for the boat's hull deadrise, eliminating the need for a fairing block. The transducer mounts flush to the boat's hull, reducing drag and improving water flow. Built-in deadrise compensation keeps the main focus of the sonar beam pointing straight down, resulting in strong echo returns and accurate depth readings. A built-in water temperature sensor provides reliable seawater temperature readings.
The SS60 is ideal for inshore or coastal fishing in shallow to medium depths. Its combination of frequencies and beams makes it ideal for slow trolling, structure fishing, and drifting. This is also an excellent choice for deep-water lake fishing. The stainless steel through-hull fitting is ideal for most metal, wood, or fiberglass hulls.
The SS60 is fitted with a Raymarine 8-pin "DSM-style" connector that is directly compatible with the CP370 sonar module and legacy CP300, DSM300, DSM30, and DSM250 modules. SS60 can be adapted to work with other systems using optional transducer adapter cables, sold separately.
Specifications
- Mount: Through-Hull
- Material: Stainless Steel
- Power (RMS): 600W
- Max Depth: 1,200 Ft. (L) / 700 Ft. (H)
- Frequency: 50 / 200 kHz
- Beam Width: 45° / 12°
- Records: Depth / Temperature
- Hull Material: Fiberglass / Wood
- Cable Length: 33 Ft. / 10 M.
