- Description
This jammer block is for situations where a fixed foot block can’t help: peeling spinnakers, or changing a sheet winch
Features
- Controlled spinnaker handling
- Attached with webbing strop, positioned on a toe rail or padeye
- No drilling and no clutter on deck
- CAM profiled to hold loads up to 20% of the block SWL
- Plain bearing sheave provides smooth running at low loads
- Excellent durability at high loads
- Strop allows fullest rotation for spinnaker sheet use
- CAM has three distinct operating modes
Specifications
Sheave Diameter / Type

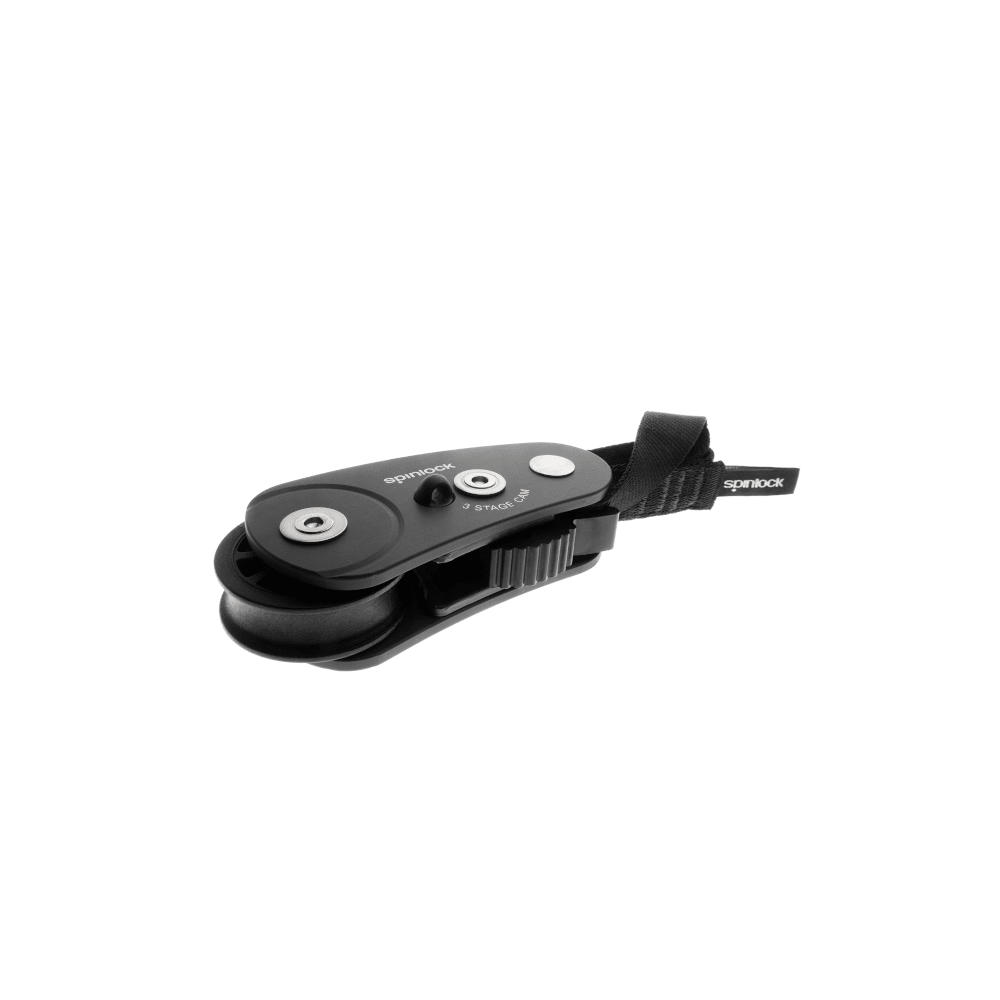

- BRS/50 - 50mm (2") composite

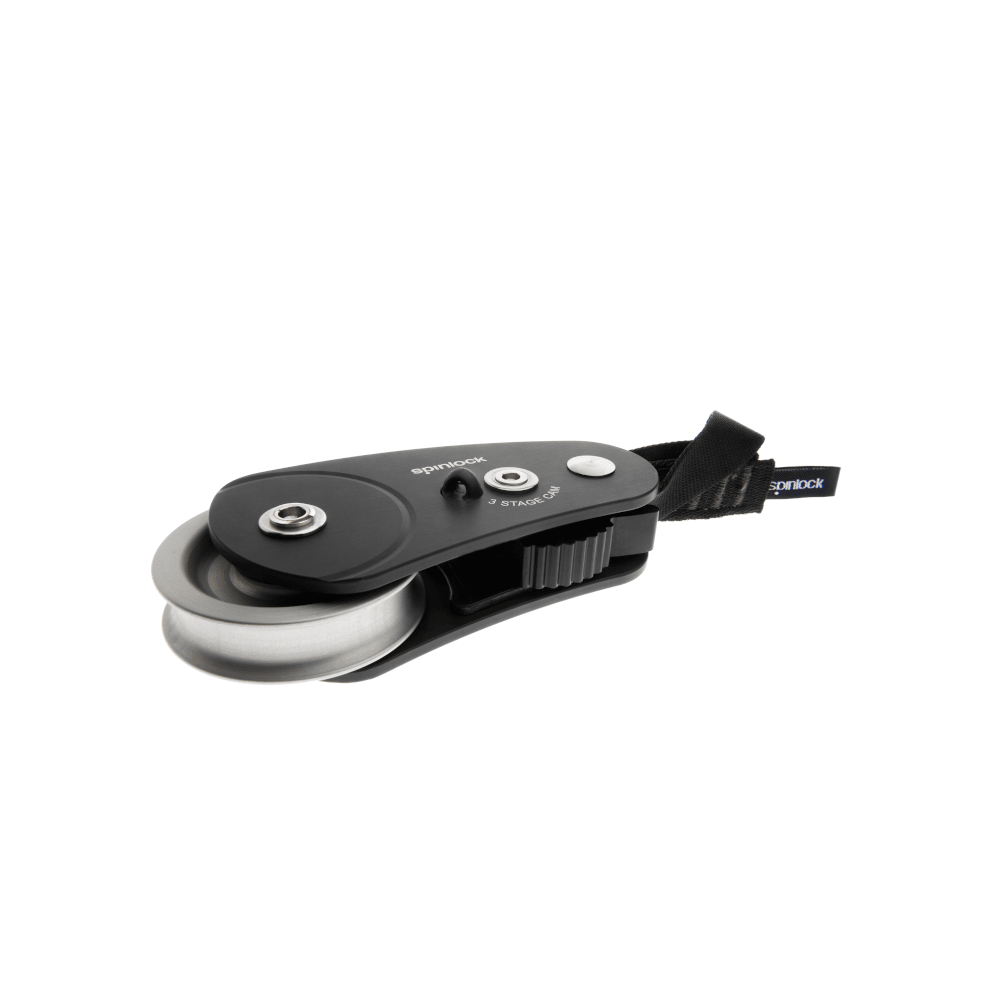

- BRS/63 - 63mm (2 1/2") alloy
SWL Sheave
- BRS/50 - 800kg (1760lbs)
- BRS/63 - 1200kg (2640lbs)
Safe Cam Load
- BRS/50 - 160kg (352lbs)
- BRS/63 - 240kg (528lbs)
Line Diameter
- BRS/50 - 6-10mm (1/4-3/8")
- BRS/63 - 8-12mm (5/16-1/2)
Weights & Fasteners
Weight
- BRS/50 - 250g (8.8oz)
- BRS/63 - 365g (12.8oz)
Fasteners
- Soft fastening (attached)
Price Per: 1 EA
