- Description
Raceboat Throttle Control Solution
Features
- Converts a standard Teleflex™ throttle to a flush socket unit
- Proven raceboat throttle control solution

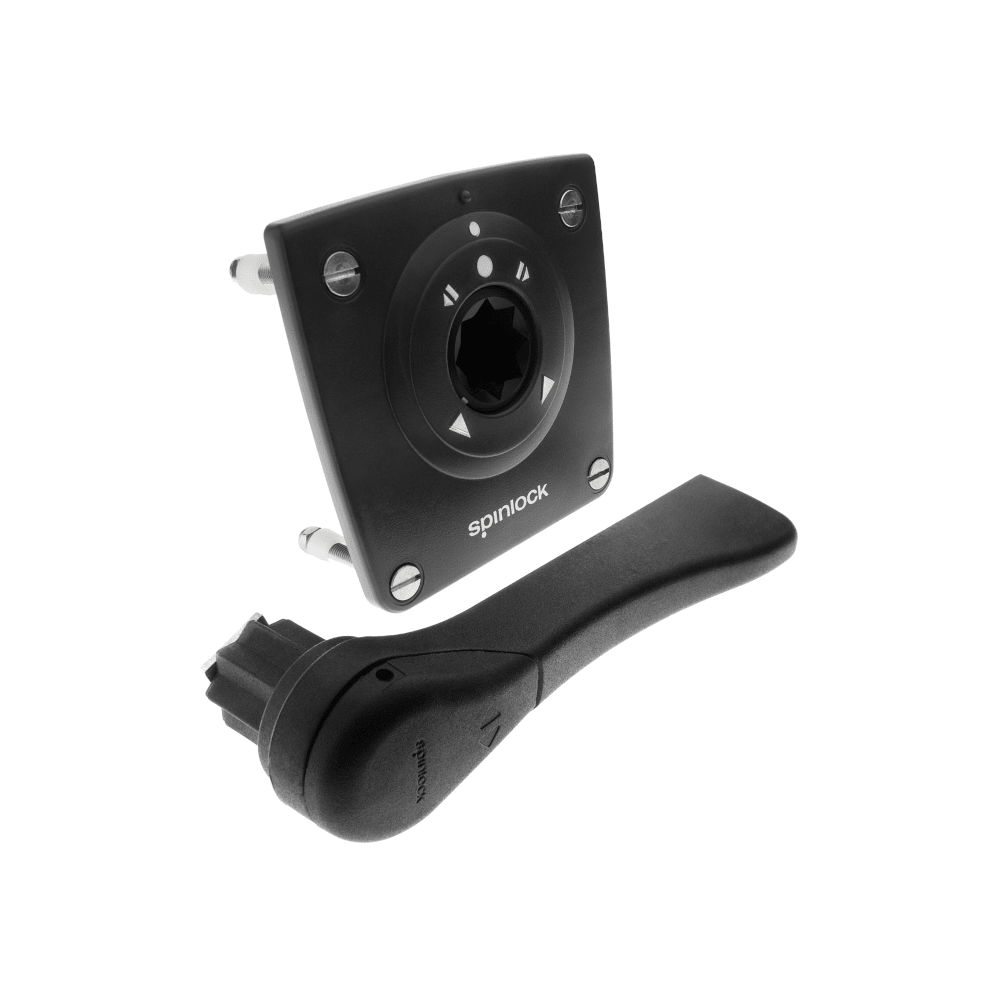

- Removable handle eliminates the risk of lines snagging when sailing
- Allows engine control to be located in the best position for the helmsman

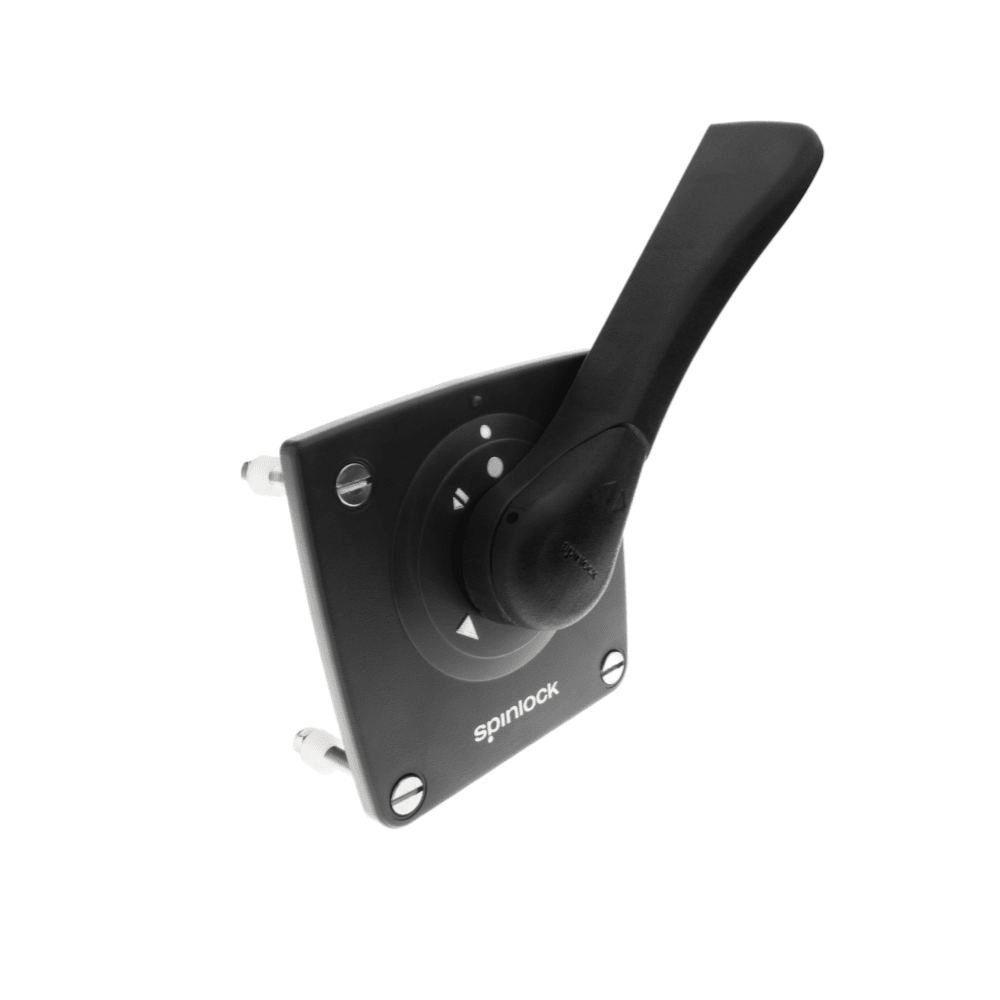

- ATCU-LVR handle option recommended for a perfect fit
- Full assembly instructions are supplied
Specifications
- The Spinlock ATCU/1 is a conversion kit to work with the Teleflex B700-B throttle mechanism (sometimes referred to as TX172152)
- The B700-B is sourced separately by the customer and is NOT supplied with the Spinlock ATCU/1 or any variant
- Compatible with: Seastar: 700 SM, 700 SS, B80/S, C80/L, CH2100P, CH2600P, and the VETUS: AFSTZIJ
- Other makes and models also use the B700-B mechanism – Please check with your manufacturer
Weights & Fasteners
Weights
- ATCU/1 - 260g (6.0oz)
- ATCU/1+ (includes handle) - 380g (13.3oz)
Fasteners
- ATCU/1 - 4 x M5 (3/16") CSK Head (Supplied)
- ATCU/1+ - 4 x M5 (3/16") CSK Head (Supplied)
Price Per: 1 EA
