- Description

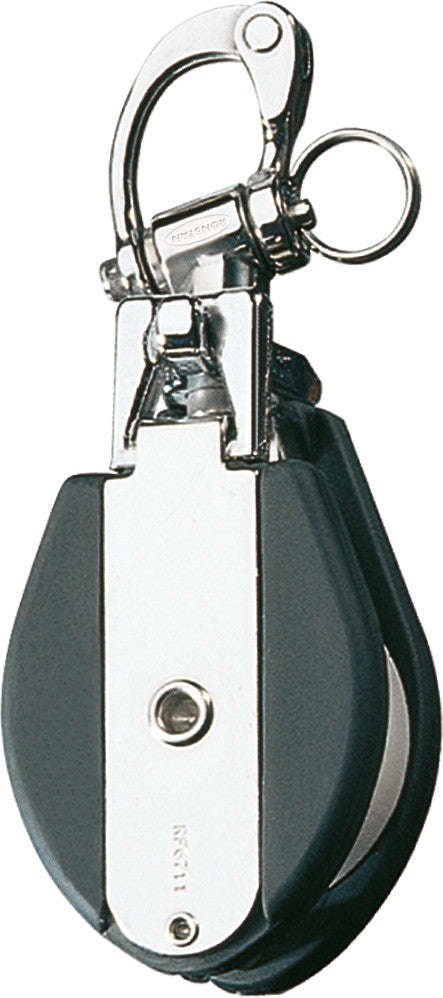

SNATCH BLOCK, WITH TRUNNION
2200 LB.BREAKING, 7/16"
SNATCH BLOCKS
Acetal Sheave
FEATURES
- Easily operated latch mechanism
- Lightweight
- Soft resilient cheeks
| Sheave Ø | 51 mm |
|---|---|
| Max. Rope Ø | 12 mm |
| Max. Cable Ø | - mm |
| Pin Ø | - mm |
| M.W.L. | 425 kg |
| B. L. | 850 kg |
| Weight | 260 g |
PRODUCT INFORMATION
Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360A°. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.Spare Parts; RF6161 Replacement Plunger Pin Kit
APPLICATIONS
- Temporary sheeting point while changing sheets for boats up to 10m (33ft)
- Temporary reefing block for boats up to 10m (33ft)
- Spare or replacement block for general use on larger boats depending on line angle and load
MATERIALS
- U.V. stabilised Acetal sheaves
- Grade 316 stainless steel frame and load strap
- Soft thermoplastic rubber cheeks
- Investment cast Grade 15-5PH stainless steel snap shackle
