- Description

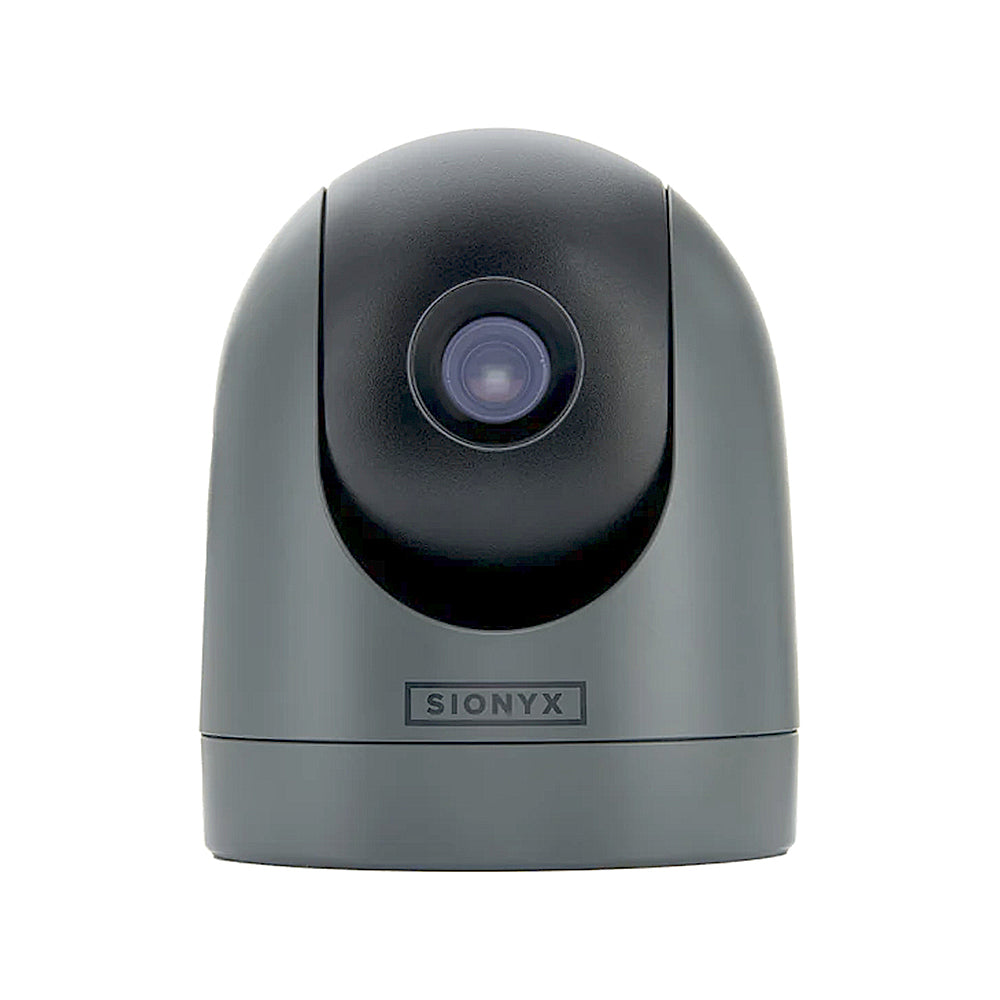

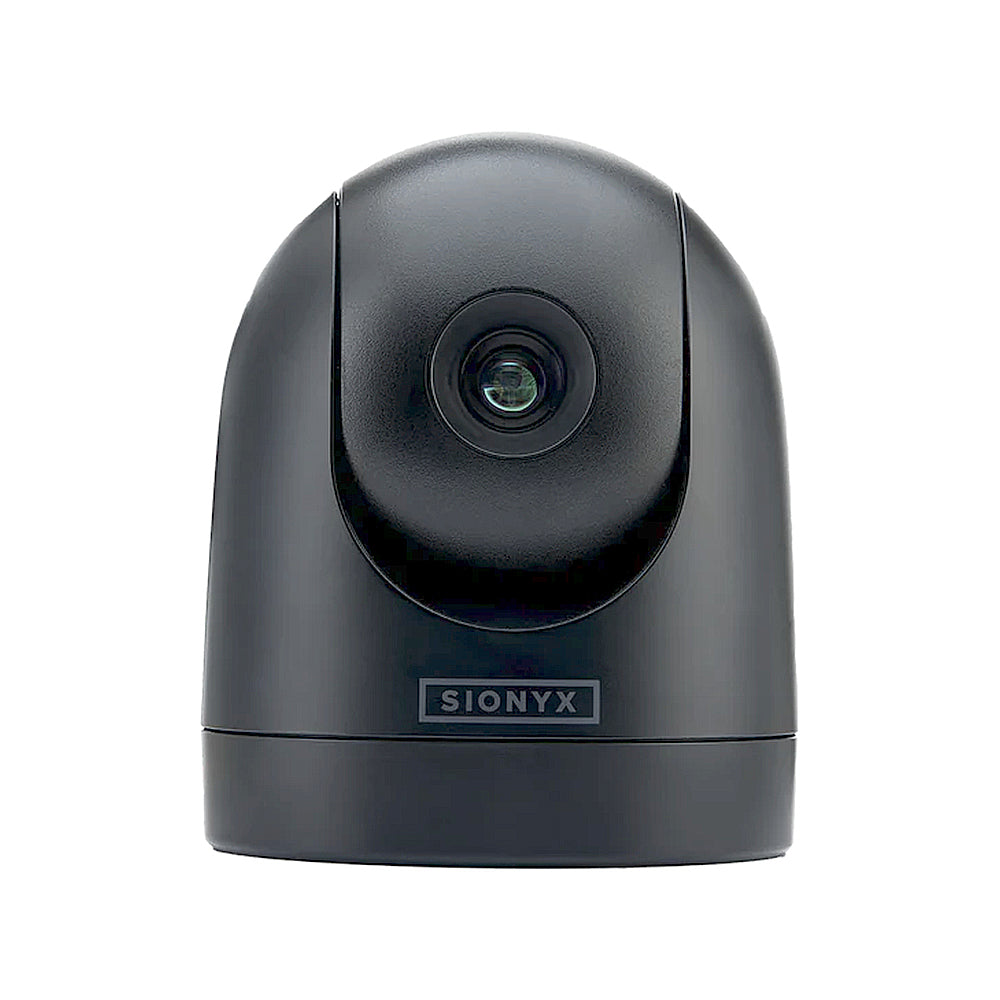

MARINE COLOR DIGITAL NIGHT VISION CAMERA
Nightwave is an ultra low-light marine navigational camera built around SIONYX’s patented Black Silicon CMOS sensor. It allows mariners of all levels to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras – navigating safely, avoiding collisions, and maximizing time on the water. With flexible mounting options and easy setup, Nightwave connects to other hardware via analog output, displaying clear color digital night vision.
CONNECTED: Seamless integration with major brand MFDs via the analog video output. Convenient installation flexibility and WiFi communication for command and control.RUGGED: IP67 rating protects against water, sand, salt, and dust. Dry nitrogen is purged to prevent lens fogging. Safely use Nightwave in inclement weather conditions.CAPABLE: <1 MLX MOONLESS STARLIGHT sensitivity allows you to see well beyond human eyesight.AWARE: A 44-degree field of view increases situational awareness to spot unexpected obstacles, debris, markers, vessels, and more.
CAMERA
Sensor Type: XQE1350 BSI CMOSResolution: 1280 X 1024
Frame Rate: 30 Hz
Horizontal FOV: 44°
Visible Spectrum: 400-1200NM
Focus Range: 10M TO INFINITY
Lens: 16MM F/1.4CAMERA - PHYSICALWeight: 870 G [1.9 LBS]
Dimensions: 127 X 127 X 152 MM [5" X 5" X 6"]
Mounting Options: Tripod or Rammount
Single 1/4” 20 Center Mount
Bulkhead Mount: 4 X M6 Blind Holes Top-Down Mounting HolesMaterial: UV Resistant PolycarbonateSYSTEM
Video Out: NTSC (640 X 480 @ 30 HZ)
Video Connection: SMA / BNC/ RCA
Wireless Communications: Wi-Fi + BluetoothPower In: 12V DC
Power Connection: Tinned Copper WireENVIRONMENTALIngress Protection: IP67 Water/Dust Resistant
Shock & Vibration: IEC60945 [V15G | H:9G] | IK08
Operating Temperature: -20°C TO +50°C
Storage Temperature: -20°C TO +80°CINCLUDEDCameraCable (5M)SMA to BNC AdapterBNC to RCA AdapterPower Fuse & Fuse HolderDigital Video Cable USBBase GasketMounting HardwareInstall TemplateUser Manual
