Sierra 3434 Yamaha Water Pump Repair Kit without housing
Replaces : O.E.# 63D-W0078-01-00, 63D-44311-00-00
Fits: 40/50(1995-03), P40(1998), C40 3 cyl(1997-02), C50(1999-01), F40 2.6L(1999), F50(1995-03), P50(19995-96), F60(2002-03)

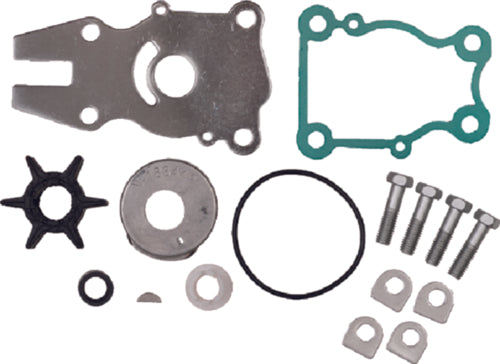

Kit Contains:
(1) 18-0483 - Gasket, Pump Case -O.E.# 63D-44316-00-00
(1) 18-3069 - Impeller -O.E.# 697-44352-00-00
(1) 18-3186 - Plate, Wear -O.E.# 63D-44323-00-00
(1) 18-3297 - Key, Impeller -O.E.# 90280-03M03-00
(1) 18-3449 - Cup, Insert - O.E.# 63D-44322-00-00
(1) 18-8400-9 - Bolt (Set of 4) - O.E.# 90119-08M15-00
(1) NSS - Cover, Pump Housing -O.E.# 63D-44312-00-00
(4) NSS - Washer, Bolt -O.E.# 90209-08M02-00
(1) NSS - O-Ring O.E.# 93210-59MG7-00
(1) NSS - Seal, Water -O.E.# 663-44366-00-00
For kit with housing, order 18-3415
