RF41712

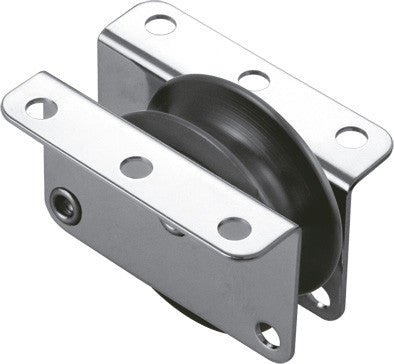

Series 40 High Load Exit Box
40mm Nylatron® sheave, suitable for wire or rope, external mount. Use 6 x 5mm (3/16") fasteners.
SPECIFICATIONS
| B.L. (kg) | 1000 |
|---|---|
| M.W.L. (kg) | 500 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 75 |
| Wire Ø (mm) | 5 |
| Fastener Ø (mm) | 5 |
| P.L. B.L. (kg) | 2700 |
| U.D.L. B.L. (kg) | 3600 |
| Qty. Fasteners | 6 |
| Notes: | Use 6 x 5mm (3/16") fasteners |
Product Information
Ronstan manufactures an extensive range of sheave boxes for use with rope and wire. Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered.
TECHNICAL INFORMATION
SPECIFICATION DETAILS
| A (mm) | 54 |
|---|---|
| B (mm) | 33 |
| C (mm) | 17 |
| D (mm) | 5 |
APPLICATIONS
Ideal for applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimising friction and chafing.
MATERIALS
Nylatron® sheave.
Grade 316 stainless steel housing.
