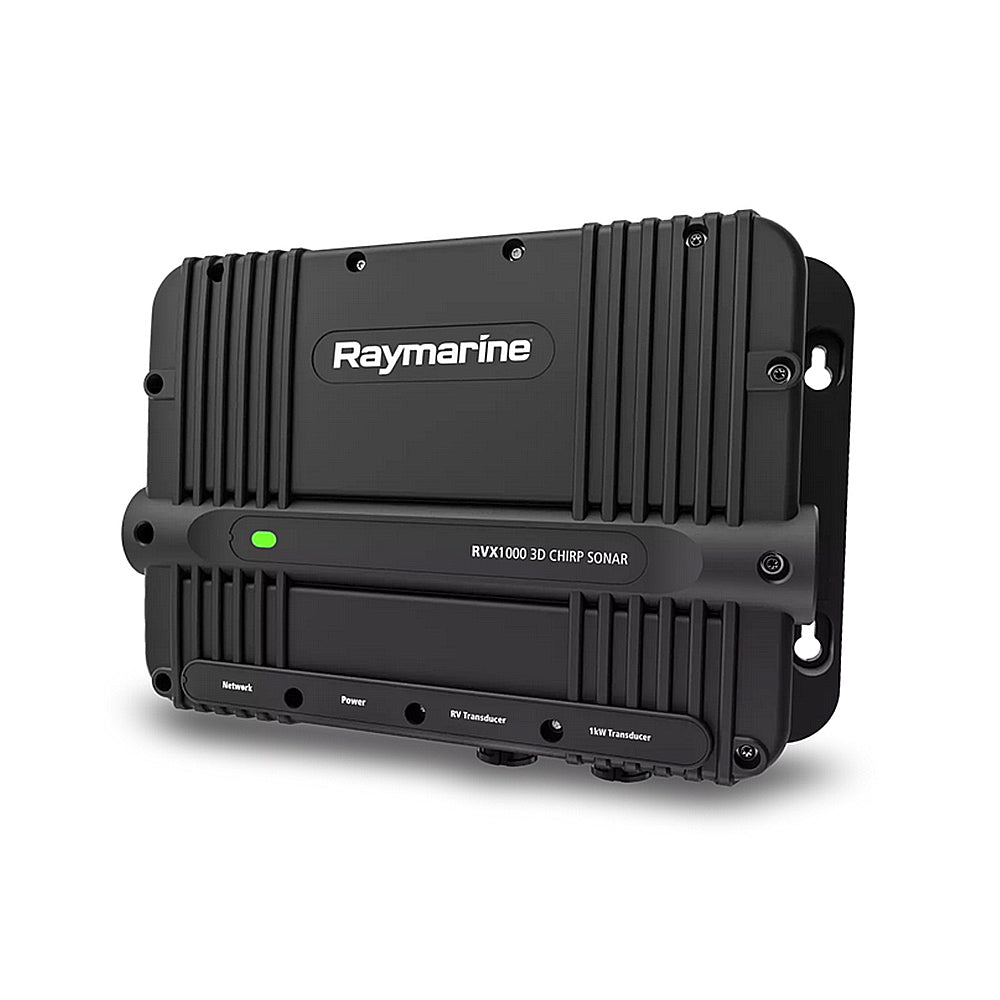

High-Performance 3D CHIRP Sonar Module
The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award-winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high-powered 1kW dual-channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.
Features
- RealVision 3D
- CHIRP SideVision
- CHIRP DownVision
- Low-power, high-frequency CHIRP
- 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz)
- Sonar Scroll Back - rewind, pause, and playback up to 10 minutes of recorded sonar history to take a closer look at fish and structure, and easily plot waypoints.
- TruZoom™ magnification reveals extra target detail without loss of resolution.
- The GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world in real-time.
- The RVX1000’s dedicated quad-core processor allows previous-generation MFDs to run multiple sonar channels simultaneously without any compromise in performance.
Specifications
- Connections: Power connection, Network connection (RayNet connector) 10 / 100 Mb/s, Transducer connection x 2
- Dimensions: Height: 188.0 mm (7.40 in), Width: 299.4 mm (11.79 in), Depth: 84.4 mm (3.32 in)
- Weight: 1.59 kg (3.49 lbs)
Box Includes
- Sonar module
- Power cable 1.5 m (5 ft)
- Fixing screws (No. 8) x 4
- Documentation
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
