- Description

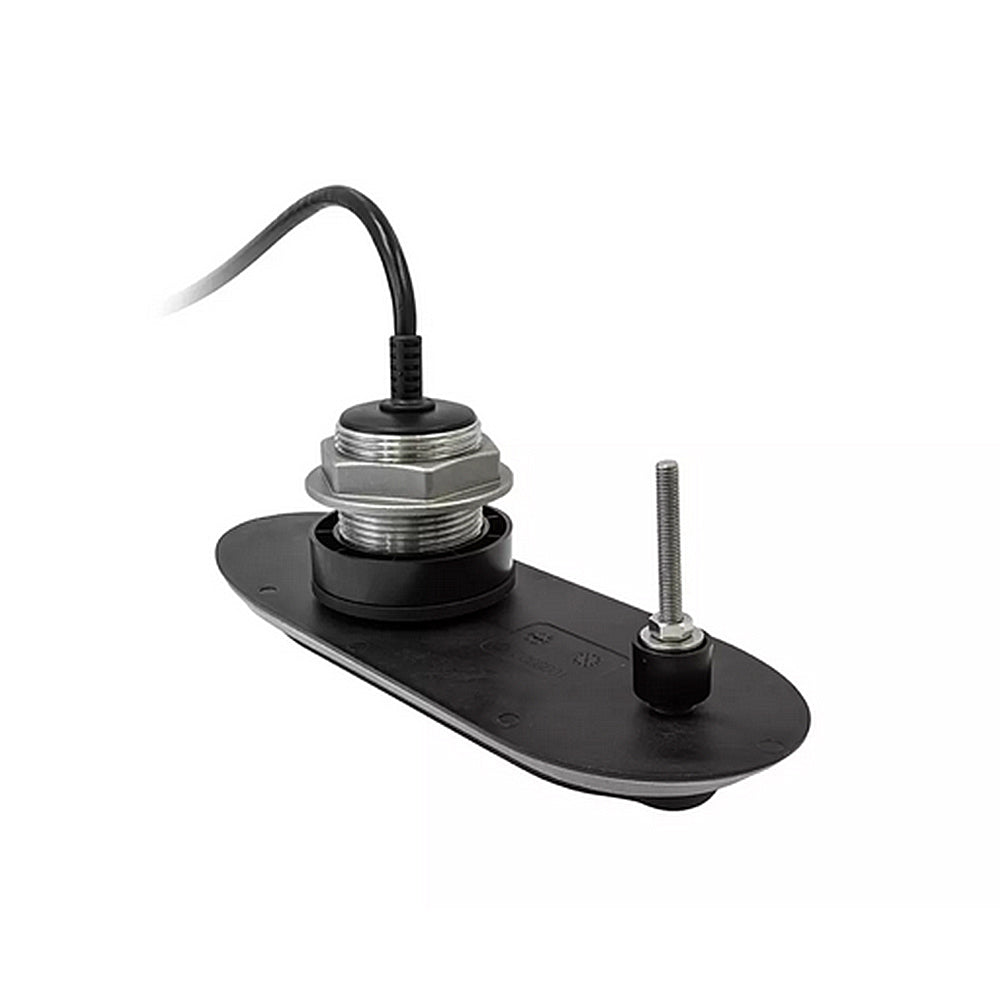

Raymarine’s RV-400 stainless steel all-in-one through-hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-400 is a 4-channel, wide-spectrum CHIRP transducer with DownVision, SideVision, conical CHIRP fish targeting, and RealVision 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-400 also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RV-400 features a rugged stainless steel through-hull body suitable for fiberglass, wood, or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 even works great on trailered boats, and with no fairing block to cut, installation is a breeze.
Features
- 12-Degree Offset
- Stainless Steel
- Through-Hull Mount
- RealVision 3D
- 2-Meter Extension Cable
Box Includes
- Documentation
- Locking Collar Kit (for transducer cable connector), consisting of: 2 x Split rings (includes spare), 1 x O-ring, 1 x Locking collar, 1 x Split ring fitting tool
- Bronze Hull Nut
- Cable Protector
- Large Internal Isolator Sleeve
- Nut for Anti-Rotation Bolt
- Small Washer for Anti-Rotation Bolt
- Rubber Washer
- Small Internal Isolator Sleeve
- External Isolator Plate
- External Isolator Sleeve
- High Speed Nose Cone
- Transducer (Including Cable)
- Anti-Rotation Bolt
- Protective Cap for Anti-Rotation Bolt
