- Description

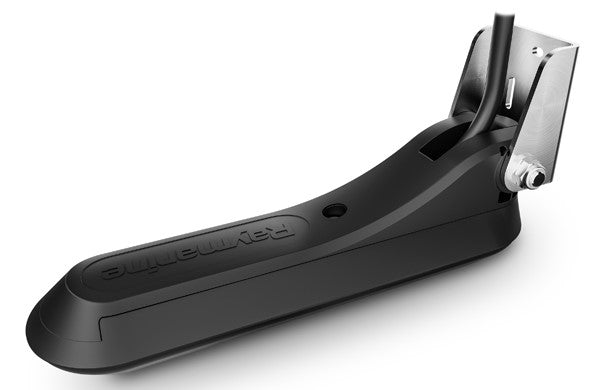

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high-frequency CHIRP fish targeting, and RealVision 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (A80479, sold separately.)
Box Includes
- Escutcheon plate
- Cable clips x5
- 9 x Self tapper screw (3.9x13) (4 x for escutcheon and 5 x for cable clips)
- 3 x Self-tapper screw (4.2x18) (for transducer mounting bracket installation)
- Transducer mounting bracket
- Cable connector kit, consisting of: O Ring, Split ring x 2 (1 x spare), Locking collar, Split ring fitting tool
- Documentation
- M10 x 65 serrated bolt
- M10 serrated nylock nut
- Transducer (including 8 m / 26.2 ft cable)
