- Description

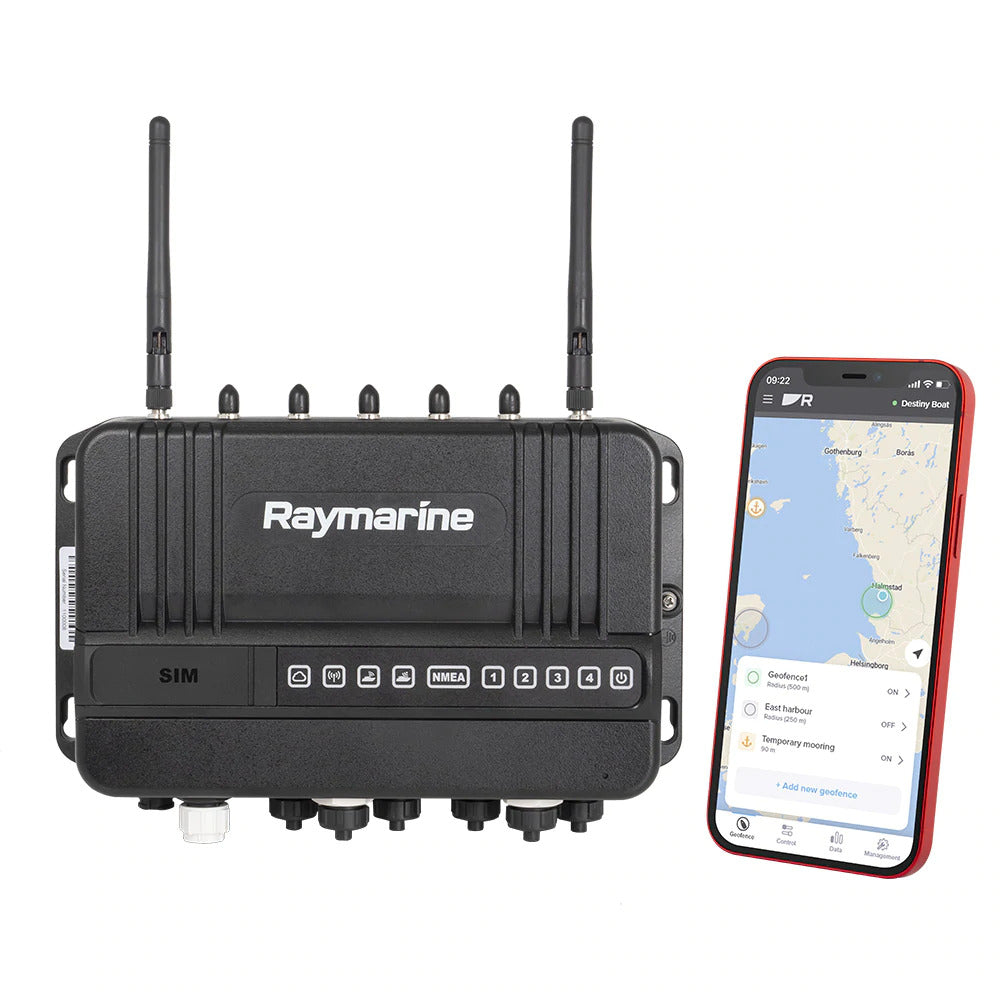

YachtSense Link Marine Mobile Router
YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect AxiomÌ?åÇåÎÌâ displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.
Remote Monitoring
GeoFence provides alerts and notifications if your vessel moves in or outside a safety zone.Low power consumption mode supports GeoFence remote monitoring (subscription required)x4 input and output low voltage digital switching channelsEasy DIY setup using a web browser or Axiom displayAlways Connected
Connect Raymarine equipment, tablets, smart TVs, and other wireless devices to a unified onboard networkMobile broadband connection to 4G (LTE) networks (SIM card and data plan required)Supports dual SIM cards for seamless connectivity to international mobile networksIntegrated GPS with a range extending 4 in 1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi)Stay Informed
Connect and view real time instrument and navigation data on board or remotelyx4 Raynet Ethernet ports for connecting Raymarine devicesSeaTalkNG/NMEA2000 portRugged IPX6 enclosure is shock and vibration resistantPOWER SPECIFICATION
Nominal supply voltage: 12 / 24 V dcÌ?åÇÌ??Operating voltage range: 8 V dc to 32 V dcENVIRONMENTAL SPECIFICATIONÌ?åÇÌ??
Operating temperature range: -25Ì?åÇåÎ̤C (-13Ì?åÇåÎ̤F) to + 55Ì?åÇåÎ̤C (131Ì?åÇåÎ̤F)Storage temperature range: -30Ì?åÇåÎ̤C (åÎå?Ì??Ì?̍22Ì?åÇåÎ̤F) to + 70Ì?åÇåÎ̤C (158Ì?åÇåÎ̤F)Humidity: up to 93% @ 40Ì?åÇåÎ̤C (104Ì?åÇåÎ̤F)Water ingress protection: IPx6PHYSICAL SPECIFICATION
Dimensions (w x h x d): 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in)Weight: 1.03 Kg (2.26 lb)WIRELESS NETWORKS SPECIFICATION
Boat Wi-Fi: Wi-Fi access point mode frequencies:Ì?åÇÌ??
2.4 GHz (2412 MHz to 2472 MHzÌ?åÇÌ??2422 MHz to 2462 MHz): 13.28 dBmDock WLAN: Wi-Fi station mode frequencies:Ì?åÇÌ??
2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBmÌ?åÇÌ??5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBmÌ?åÇÌ??5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBmÌ?åÇÌ??Cellular / Diversity: 2G/3G/4G frequencies:Ì?åÇÌ??
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28Ì?åÇÌ??LTE-TDD: B38/B39/B40/B41Ì?åÇÌ??WCDMA: B1/B2/B4/B5/B6/B8/B19Ì?åÇÌ??GSM: B2/B3/B5/B8
