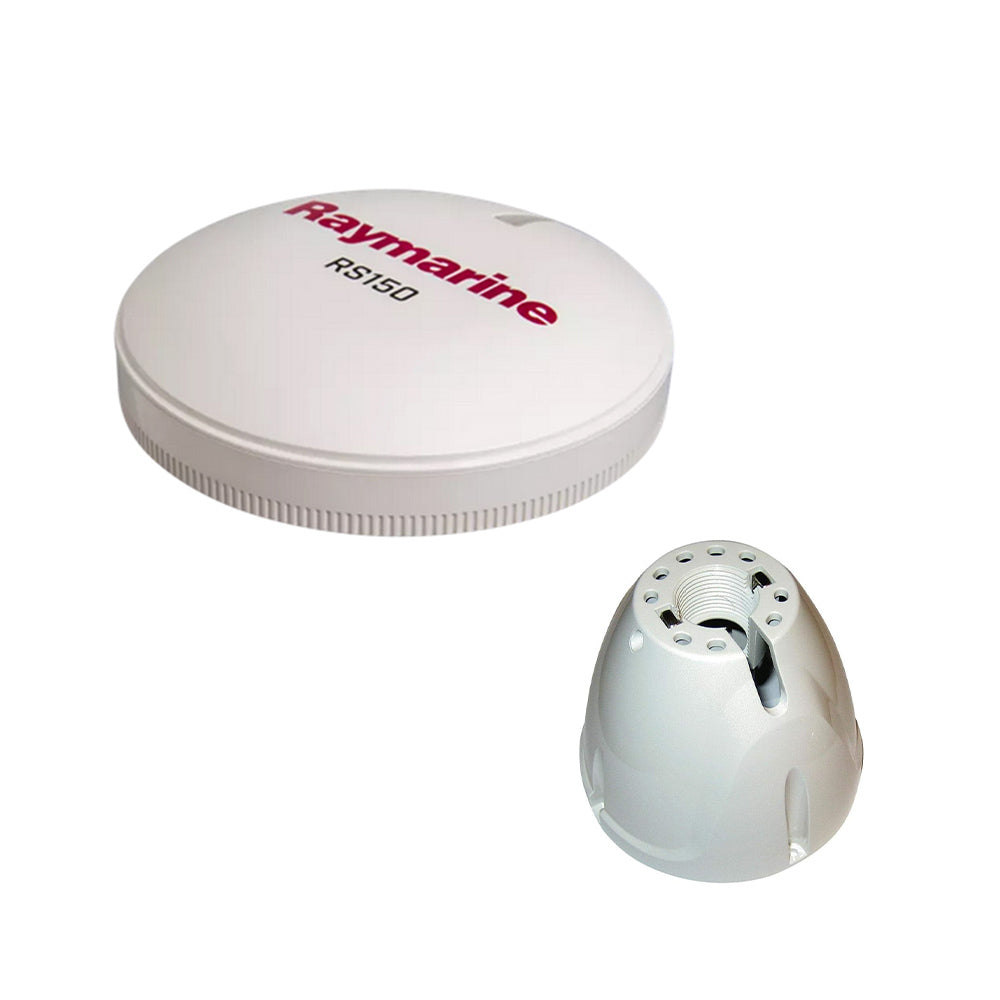

Raymarine Raystar 150 10Hz GPS/Glonass Antenna (STng) w/ Pole Mount

Raymarine Raystar 150 10Hz GPS/Glonass Antenna (STng) w/ Pole Mount

MPN # T70327 SKU # Sku 038533

UPC : 723193813058

$545.99 CAD
Regular price Sale price $545.99 CAD
Shipping calculated at checkout.
ONLINE ORDERS Online orders are processed and shipped out in a timely manner as per the stated timelines of our mail order department.
STORE PICKUP However if you wish to pickup an item at the store, please call or email ahead and verify that that item is in stock at the store, if not we will gladly order it in and call you when it is ready to be picked up.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free shipping on most orders over $120 across Canada exceptions apply
View full details
  • Description

The RS150 GPS is a high-performance, self-contained, remotely mounted GPS/GNSS sensor for Raymarine navigation systems.
Features
72-channel GPS receiver
Fast 10Hz position updates
Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
A GNSS receiver with GLONASS compatibility
Low power consumption: 30mA (1 LEN)
SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
Designed for low-profile surface mounting or optional pole mounting
Specifications
Positions Accuracy: Without SBAS: 15 metres 95% of the time, With SBAS: 5 metres 95% of the time
Geodetic Datum: WGS84
Satellite Differential Type (SBAS): WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India)
GNSS Compatibility: BeiDou and Galileo ready (supported by future software update)
Differential Acquisition: Automatic
Signal Acquisition: Automatic
Sensitivity: -163 dBm (tracking), -147 dBm (acquisition)
Time to First Fix from Hot Start: < 8 seconds
Time to First Fix from Cold Start: < 2 minutes (< 45 seconds typical)
Speed Accuracy (95%): < 0.3 knots
Channels: 72
Other Details
Includes Pole Mount
Model: T70327
