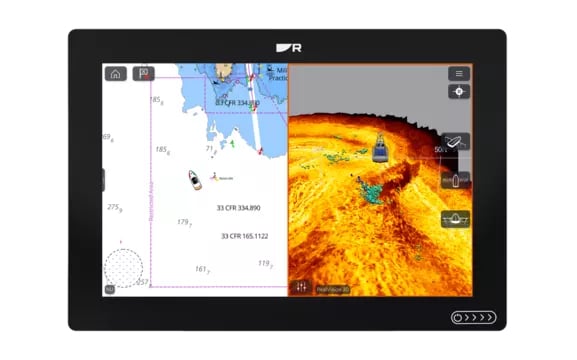

THE ALL-IN-ONE CHARTPLOTTER AND MORE
Axiom®+ is a new generation of Axiom chartplotters upgraded with all-weather, higher resolution displays that are 25 percent brighter than the previous generation. Axiom+ displays are equipped with a powerful quad-core processor for industry-leading speed and responsiveness.
Seamlessly redraw charts and expand Axiom+ with solid state radar, and FLIR thermal cameras, or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ features the renowned LightHouse operating system, so you can easily navigate and expand your system.
Physical Specifications
- Axiom+ 12"" Dimensions (Trunnion Mounted):
- Width: 314 mm (12.36 in)
- Height: 217 mm (8.54 in)
- Depth including cables: 178 mm (7.01 in)
- Axiom+ 12 Dimensions (Flush Mounted):
- Width: 314 mm (12.36 in)
- Height: 226.72 mm (8.93 in)
- Depth including cables: 178 mm (7.01 in)
- Accessory Connection: USB Micro B
- Ethernet Connection: RayNet (10/100 Mbits/s)
- External Storage: MicroSDXC Card Slot x1
- NMEA 2000 Connection: DeviceNet (Male Connector Built into Power Cable)
- Wireless Connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
- Internal Storage: 16 GB Solid State (14 GB Usable)
- Transducer Connection: 25-Pin RealVision Type Connector. Requires the A80490 Adaptor Cable for CPT-S style transducers
Model: E70639
"
