- Description

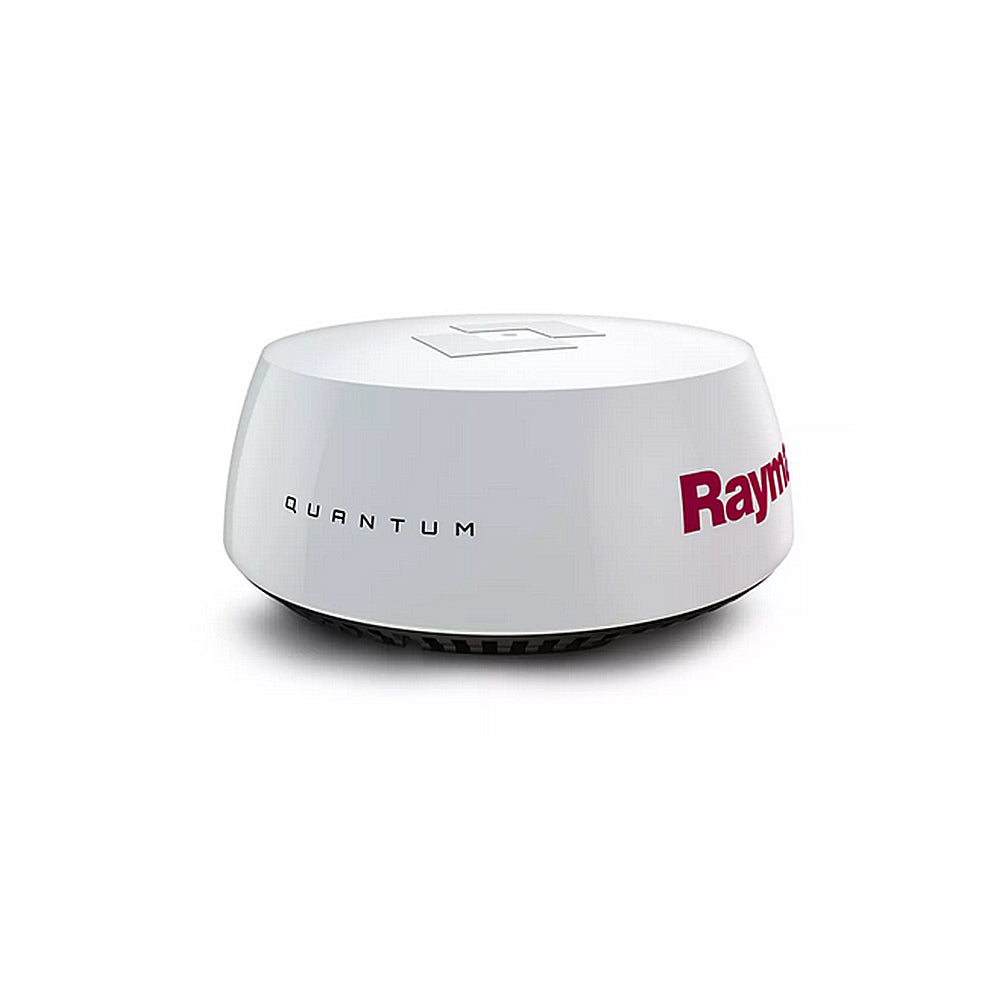

Quantum radar technology brings you exceptional short-range detection and remarkable target detail with a minimal 18' (6m) range. The use of CHIRP Pulse compression technology means that more energy is delivered to targets, ensuring that you get superior imaging even at long distances.
Ideal for a variety of vessels, including sailboats, RIBs, and smaller powerboats, Quantum offers broad utility. Installation is a breeze, and for those upgrading, existing cables can be repurposed with a simple adapter, making Quantum a convenient and versatile choice.
Specifications
- Dimensions (Width/Height): 541.0mm / 209.5mm
- Weight: 5.6kg
- Supply Voltage: Either 12V dc or 24V dc nominal
- Operating Voltage Range: Minimum: 10.8 V dc / Maximum: 31.2 V dc
- Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
- Waterproofing: IPX6
- Operating Temperature Range: -10°C to +55°C
- Storage Temperature Range: -25°C to +70°C
- Additional Storage Information: Store upright; do not block vents on the underside
- Humidity: Up to 95% at 35°C
- Maximum Wind Speed: 100 kts
- Range Scales: 1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, and 24 nautical miles
Box Includes
- Quantum Radome
- Power Cable
- M8 Mounting Bolts w/ Spring Washers and Flat Washer x4
- Documentation
