- Description
RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats. The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM chartplotters.

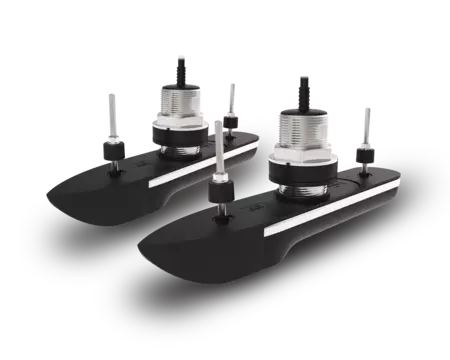

The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise.
The RVM-412 and RVM-420 transducer pairs feature tilted offset sonar elements inside their surface-mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.
Features:
- 20-Degree Offset
- Stainless Steel
- Through Hull Mount
- RealVision MAX
- 8-Meter Extension Cable
- 2-Meter Y-Cable
Box Includes
- Documentation
- Locking collar kit (for transducer cable connector), consisting of: 2 x Split rings (includes spare), 1 x O-ring, 1 x Locking collar, 1 x Split ring fitting tool
- Hull Nut
- Cable Protector
- Large Internal Isolator Sleeve
- Rubber Washer
- External Isolator Plate
- High Speed Nose Cone
- Transducer (Including Cable)
- 2 x Nuts for Anti-Rotation Studs
- 2 x Small Washers for Anti-Rotation Studs
- 2 x Small Internal Isolator Sleeves
- 2 x External Isolator Sleeves
