Muir

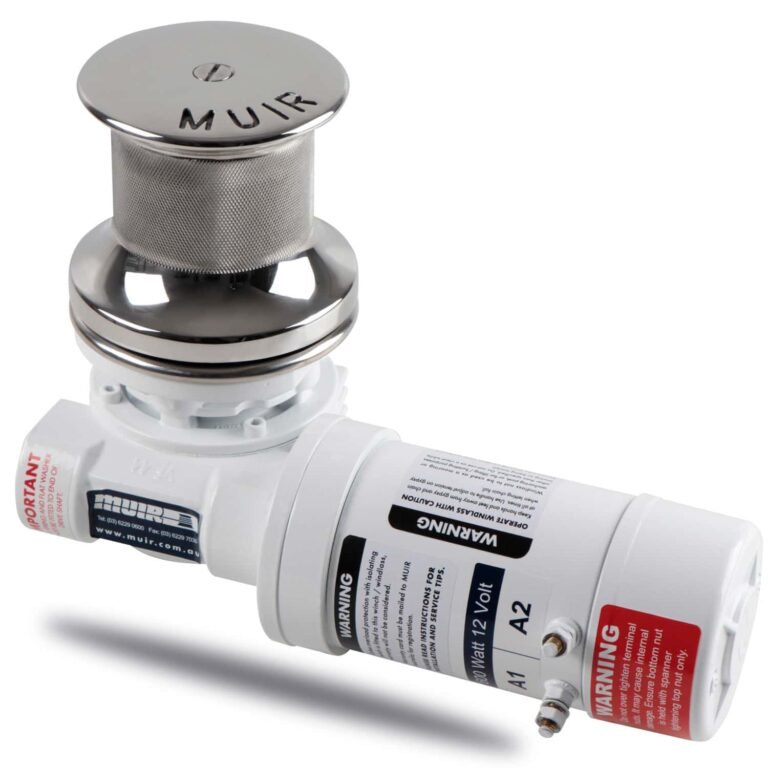

Muir Vertical Capstan VC2500 – 1500W

Muir Vertical Capstan VC2500 – 1500W

Category: Muir Windlasses & Accessories
MPN # MUR:VC2500-12
$4,940.00 CAD
$4,940.00 CAD
Shipping calculated at checkout.

⚠️ Important Pickup Information

While our retail store carries a wide selection of products shown on this website, it is not possible to stock all 80,000+ products in-store.

Please place your order online or call us before driving to the store to confirm inventory availability.

If the item is not available in-store, we can usually transfer it from our warehouse within 3–5 business days, and we'll notify you as soon as it is ready for pickup or delivery .

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free shipping on most orders over $120across Canada exceptions apply
View full details
  • Description

The Muir VC2500 Vertical Capstan is a heavy-duty line-handling solution designed for larger vessels requiring strong and reliable performance. It is built for demanding marine environments and provides consistent operation for docking, mooring, and hauling applications.

This model features a 1500W motor and supports both electric and hydraulic configurations for enhanced flexibility and performance.

Specifications
Model VC2500. Power supply 12V / 24V / 48V DC or Hydraulic. Motor output 1500W. Maximum load 1185kg. Working load 395kg. Maximum line speed 15m/min. Rope size 12mm (1/2”) or 19mm (3/4”). Net weight 25kg (DC).

Standard Package (Included)
Capstan unit, mounting hardware, installation/operation booklet.
