- Description

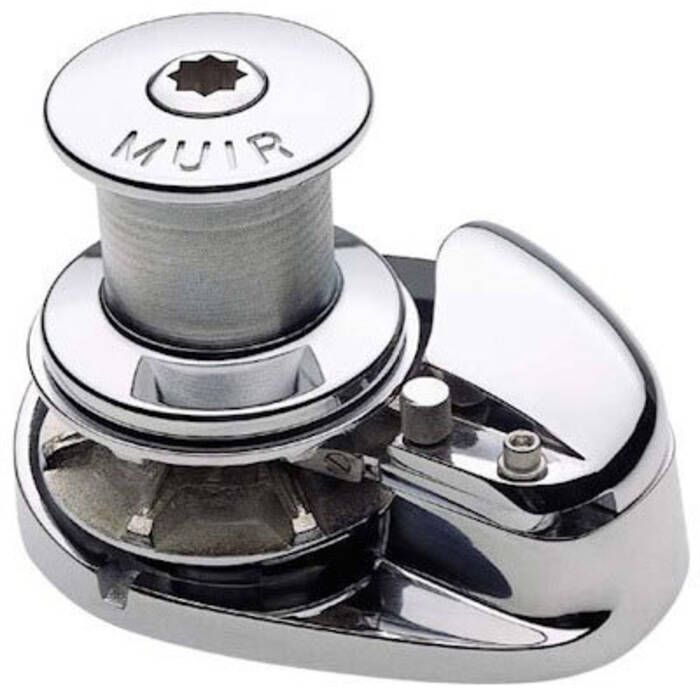

The Muir Storm VRC850 Vertical Windlass is a powerful and versatile anchoring system designed for vessels between 8 and 11 metres (26–37 feet). Built with polished marine-grade stainless steel components, it delivers reliable anchor handling along with added functionality through its integrated capstan.
This capstan model allows for both anchor handling and auxiliary line handling, making it ideal for docking, mooring, and general deck operations. Its vertical configuration enables below-deck motor installation, maintaining a clean deck layout while protecting key components from harsh marine conditions.
Equipped with a 12V DC 800W motor, the VRC850 is configured to suit 5/16" (8mm) G4 chain and supports rope-chain combinations for smooth and efficient anchoring performance.
Specifications
Model VRC850
Vessel length 8–11m (26–37ft)
Power supply 12V DC
Motor output 800W
Circuit breaker requirement 80A (12V)
Amps work load 75/40A
Maximum load 450kg
Working load 150kg
Maximum line speed 26m/min (85ft/min)
Chain size 6mm (1/4”), 8mm (5/16”), 10mm (3/8”)
Rope/chain combinations
- 12mm rope with 6mm chain
- 14mm rope with 8mm chain
- 16mm rope with 10mm chain
Auto anchor compatible Yes
Net weight DC VRC 16.5kg
Manual operation MOS (standard on most gypsy sizes)
Max deck thickness 75mm (standard) or 155mm (with extension)
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy-duty dual-direction motor
- Superior oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Capstan for additional line handling
- Independent gypsy and capstan operation
- Suitable for multiple global chain standards
- Deck isolation pad included
Standard Package (Included)
Circuit breaker and mounting panel
Deck switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation and operation booklet
Manual Operation System (MOS)
