- Description

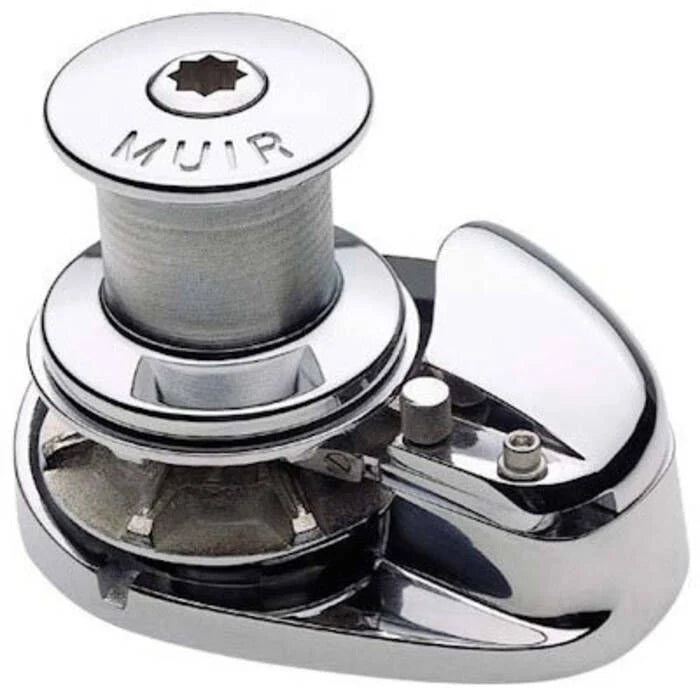

The Muir Storm VRC2200 Vertical Windlass is a heavy-duty anchoring system designed for vessels between 12 and 15 metres (38–50 feet). Built with polished marine-grade stainless steel components, it delivers powerful and reliable anchor handling along with added versatility through its integrated capstan.
This capstan model allows for both anchor handling and auxiliary line handling, making it ideal for docking, mooring, and general deck operations. Its vertical configuration enables below-deck motor installation, maintaining a clean deck layout while protecting key components from harsh marine environments.
Equipped with a 12V DC motor rated at 1500W, the VRC2200 is configured to suit 5/16" (8mm) G4 chain and supports rope-chain combinations for smooth and efficient anchoring performance.
Specifications
Model VRC2200
Vessel length 12–15m (38–50ft)
Power supply 12V DC
Motor output 1500W
Circuit breaker requirement 150A (12V)
Amps work load 150/70A
Hydraulic pressure 10MPa (1450 PSI)
Hydraulic flow 15L/min (4 gal/min)
Maximum load 1101kg
Working load 367kg
Maximum line speed 30m/min (98ft/min)
Chain size 6mm (1/4”), 8mm (5/16”), 10mm (3/8”)
Rope/chain combinations
- 12mm rope with 6mm chain
- 14mm rope with 8mm chain
- 16mm rope with 10mm chain
Auto anchor compatible Yes
Net weight DC VRC 25kg
Manual operation MOS (standard on most gypsy sizes)
Max deck thickness 75mm (standard) or 155mm (with extension)
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy-duty dual-direction motor
- Superior oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Capstan for additional line handling
- Independent gypsy and capstan operation
- Suitable for multiple global chain standards
- Deck isolation pad included
Standard Package (Included)
Circuit breaker and mounting panel
Deck switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation and operation booklet
Manual Operation System (MOS)
