- Description

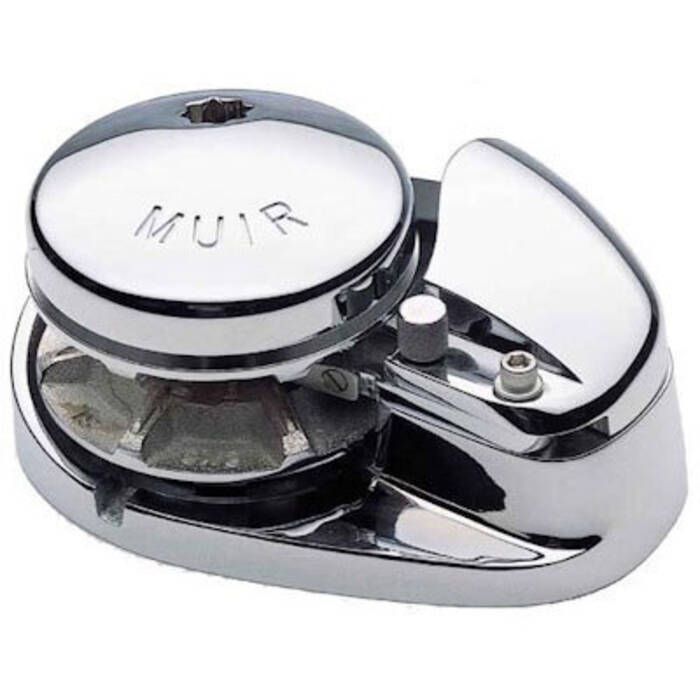

The Muir Storm VR850 Vertical Windlass is a powerful and reliable anchoring system designed for vessels between 8 and 11 metres (26–37 feet). Built with polished marine-grade stainless steel components, it delivers smooth and dependable anchor handling in demanding marine environments.
Its vertical configuration allows the motor and gearbox to be mounted below deck, maintaining a clean deck layout while improving protection from exposure. The integrated rope-chain gypsy and Rope Chain Management System (RCMS) ensure efficient handling of rope and chain combinations for consistent anchoring performance.
This model features a 12V DC motor rated at 800W and is configured to suit 5/16" (8mm) G4 chain, making it an ideal solution for mid-size boats requiring strong and consistent anchoring capability.
Specifications
Model VR850
Vessel length 8–11m (26–37ft)
Power supply 12V DC
Motor output 800W
Circuit breaker requirement 80A (12V)
Amps work load 75/40A
Maximum load 450kg
Working load 150kg
Maximum line speed 26m/min (85ft/min)
Chain size 6mm (1/4”), 8mm (5/16”), 10mm (3/8”)
Rope/chain combinations
- 12mm rope with 6mm chain
- 14mm rope with 8mm chain
- 16mm rope with 10mm chain
Auto anchor compatible Yes
Net weight DC VR 15kg
Manual operation MOS (standard on most gypsy sizes)
Max deck thickness 75mm (standard) or 155mm (with extension)
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy-duty dual-direction motor
- Oil bath worm drive gearbox for smooth operation
- Rope Chain Management System (RCMS) fitted
- Integrated quick release chain pipe cover
- Self-lubricating bush
- Capstan model with knurled grip
- Independent gypsy and capstan operation
- Suitable for multiple global chain standards
- Deck isolation pad included
Standard Package (Included)
Circuit breaker and mounting panel
Deck switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation and operation booklet
Manual Operation System (MOS)
