- Description

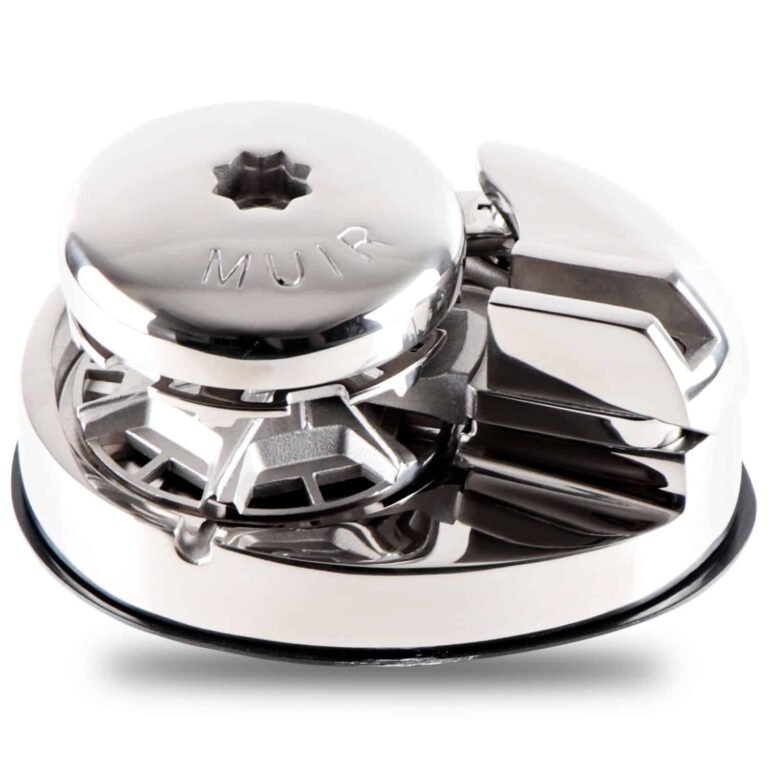

The Muir Storm VR600 Vertical Windlass is a compact and reliable anchoring system designed for vessels between 5 and 9 metres (16–31 feet). Built with polished marine-grade stainless steel, it delivers durable performance and smooth anchor handling in demanding marine environments.
Its vertical configuration allows the motor and gearbox to be mounted below deck, maintaining a clean deck appearance while improving protection from exposure. The integrated rope-chain gypsy and Rope Chain Management System (RCMS) ensure efficient handling of rope and chain combinations for consistent anchoring operation.
This model is equipped with a 12V DC motor rated at 550W and is configured to suit 1/4" (6mm) G4 chain, making it ideal for small to mid-size boats requiring a dependable and space-efficient anchoring solution.
Specifications
Model VR600
Vessel length 5–9m (16–31ft)
Power supply 12V DC
Motor output 550W
Circuit breaker requirement 80A (12V)
Amps work load 75/40A
Maximum load 369kg
Working load 124kg
Maximum line speed 25m/min (82ft/min)
Chain size 6mm (1/4”) or 7mm (7/25”)
Rope size 12mm (1/2”)
Net weight 12kg
Auto anchor compatible Yes
Manual operation N/A
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy-duty dual-direction motor
- Oil bath worm drive gearbox for smooth operation
- Rope Chain Management System (RCMS) fitted
- Quick release integrated chain pipe cover
- Self-lubricating bush
- Suitable for multiple global chain standards
- Compact vertical design (motor below deck)
Standard Package (Included)
Circuit breaker & mounting panel
Rocker switch
Deck mounting studs and fasteners
Clutch release handle
Reversing solenoid kit
Installation/operation booklet
