- Description

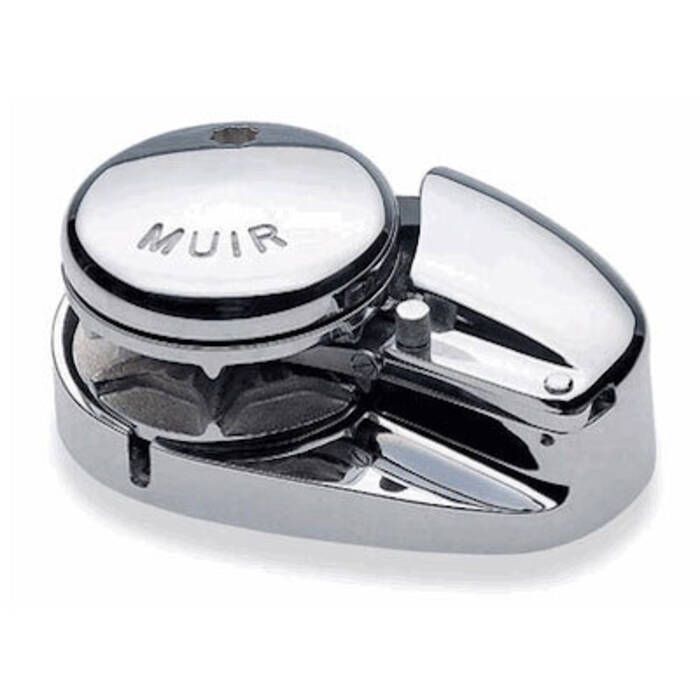

The Muir Storm VR3500 Vertical Windlass is a heavy-duty, high-capacity anchoring system designed for vessels between 15 and 24 metres (48–79 feet). Built with polished marine-grade stainless steel components, it delivers exceptional strength and reliability for demanding anchoring operations on larger vessels.
Its vertical configuration allows the motor and gearbox to be mounted below deck, maintaining a clean deck layout while protecting key components from harsh marine exposure. The integrated rope-chain gypsy and Rope Chain Management System (RCMS) ensure smooth and efficient handling of rope and chain combinations for consistent anchoring performance.
This model features a 12V DC motor rated at 1700W and is configured to suit 3/8" (10mm) G4 chain, making it ideal for large vessels requiring powerful and dependable anchoring capability.
Specifications
Model VR3500
Vessel length 15–24m (48–79ft)
Power supply 12V DC (also available in 24V / 48V / AC / Hydraulic)
Motor output 1700W
Circuit breaker requirement 150A (12V)
Amps work load 185/90A
Maximum load 1650kg
Working load 550kg
Maximum line speed 28m/min (91ft/min)
Chain size 8mm (5/16”), 10mm (3/8”), 13mm (1/2”) (chain only option)
Rope/chain combinations
- 14mm rope with 8mm chain
- 16mm rope with 10mm chain
- 20mm rope with 13mm chain
Auto anchor compatible Yes
Net weight DC VR 42kg
Manual operation Optional upgrade (MORS)
Max deck thickness - Standard: 50mm (2")
- 6" extension: 116mm (4.6")
- 7" extension: 133mm (5.3")
- 8" extension: 159mm (6.2")
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy-duty marine-grade dual-direction motor
- Superior oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Capstan models feature knurled grip
- Independent gypsy and capstan operation
- Suitable for multiple global chain standards
- Deck isolation pad included
Standard Package (Included)
Circuit breaker and mounting panel
Deck switch
Deck mounting studs and fasteners
Clutch release handle
Installation and operation booklet
