- Description

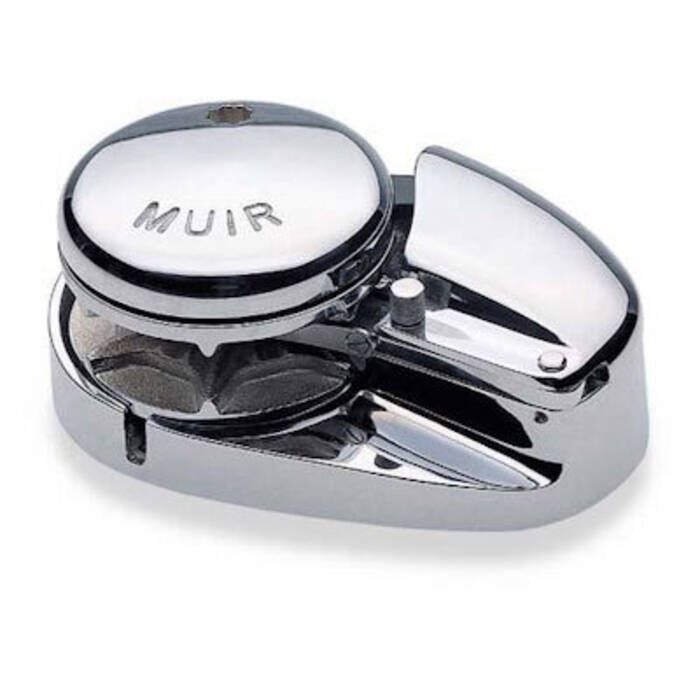

The Muir Storm VR2500 Vertical Windlass is a heavy-duty anchoring system designed for larger vessels requiring powerful and reliable performance. Built with polished marine-grade stainless steel components, it is engineered to handle demanding anchoring conditions while delivering smooth and consistent operation.
Its vertical configuration allows the motor and gearbox to be mounted below deck, maintaining a clean deck layout while protecting critical components from exposure. The integrated rope-chain gypsy and Rope Chain Management System (RCMS) ensure efficient handling of rope and chain combinations for dependable anchoring performance.
This model is available in both 12V and 24V configurations with a 1500W motor and is designed to suit 3/8" (10mm) G4 chain, making it ideal for larger vessels requiring high-capacity anchoring systems.
Specifications (From Catalog)
Model VR2500
Power supply 12V or 24V DC
Motor output 1500W
Chain size 10mm (3/8”) G4
Auto anchor compatible Yes
Net weight DC VR 40kg
Manual operation Optional upgrade (MORS)
Max deck thickness
- Standard: 50mm (2")
- 6" extension: 116mm (4.6")
- 7" extension: 133mm (5.3")
- 8" extension: 159mm (6.2")
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy-duty dual-direction motor
- Superior oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Independent gypsy and capstan operation
- Suitable for multiple global chain standards
- Deck isolation pad included
Standard Package (Included)
Circuit breaker and mounting panel
Deck switch
Deck mounting studs and fasteners
Clutch release handle
Installation and operation booklet
