- Description

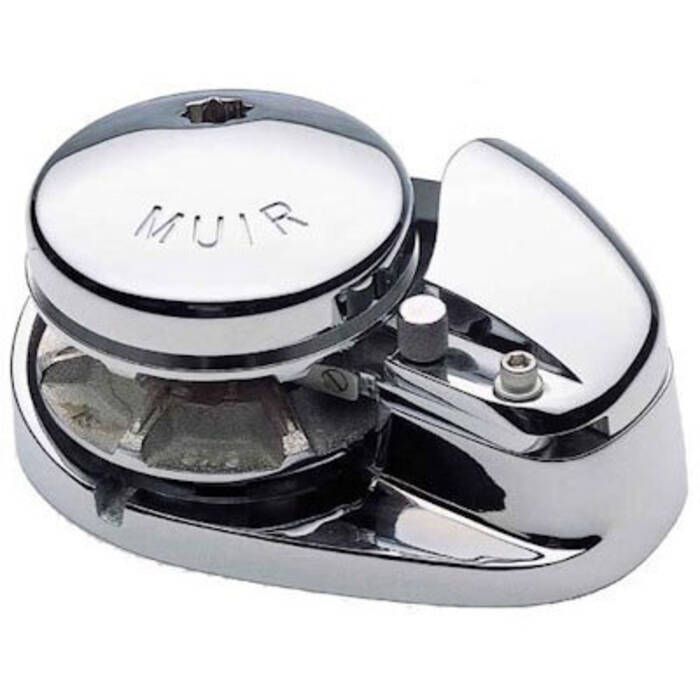

The Muir Storm VR2200 Vertical Windlass is a heavy-duty anchoring system designed for vessels between 12 and 15 metres (38–50 feet). Built with polished marine-grade stainless steel components, it delivers powerful and reliable anchor handling for larger vessels operating in demanding marine environments.
Its vertical configuration allows the motor and gearbox to be mounted below deck, maintaining a clean deck layout while improving protection from exposure. The integrated rope-chain gypsy and Rope Chain Management System (RCMS) ensure smooth and efficient handling of rope and chain combinations for consistent anchoring performance.
This model features a 12V DC motor rated at 1500W and is configured to suit 5/16" (8mm) G4 chain, making it ideal for larger boats requiring strong and dependable anchoring capability.
Specifications (From Catalog)
Model VR2200
Vessel length 12–15m (38–50ft)
Power supply 12V DC
Motor output 1500W
Circuit breaker requirement 150A (12V)
Amps work load 150/70A
Maximum load 1101kg
Working load 367kg
Maximum line speed 30m/min (98ft/min)
Chain size 6mm (1/4”), 8mm (5/16”), 10mm (3/8”)
Rope/chain combinations
- 12mm rope with 6mm chain
- 14mm rope with 8mm chain
- 16mm rope with 10mm chain
Auto anchor compatible Yes
Net weight DC VR 23.5kg
Manual operation MOS (standard on most gypsy sizes)
Max deck thickness 75mm (standard) or 155mm (with extension)
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy-duty dual-direction motor
- Superior oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Capstan models feature knurled grip
- Independent gypsy and capstan operation
- Suitable for multiple global chain standards
- Deck isolation pad included
Standard Package (Included)
Circuit breaker and mounting panel
Deck switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation and operation booklet
Manual Operation System (MOS)
