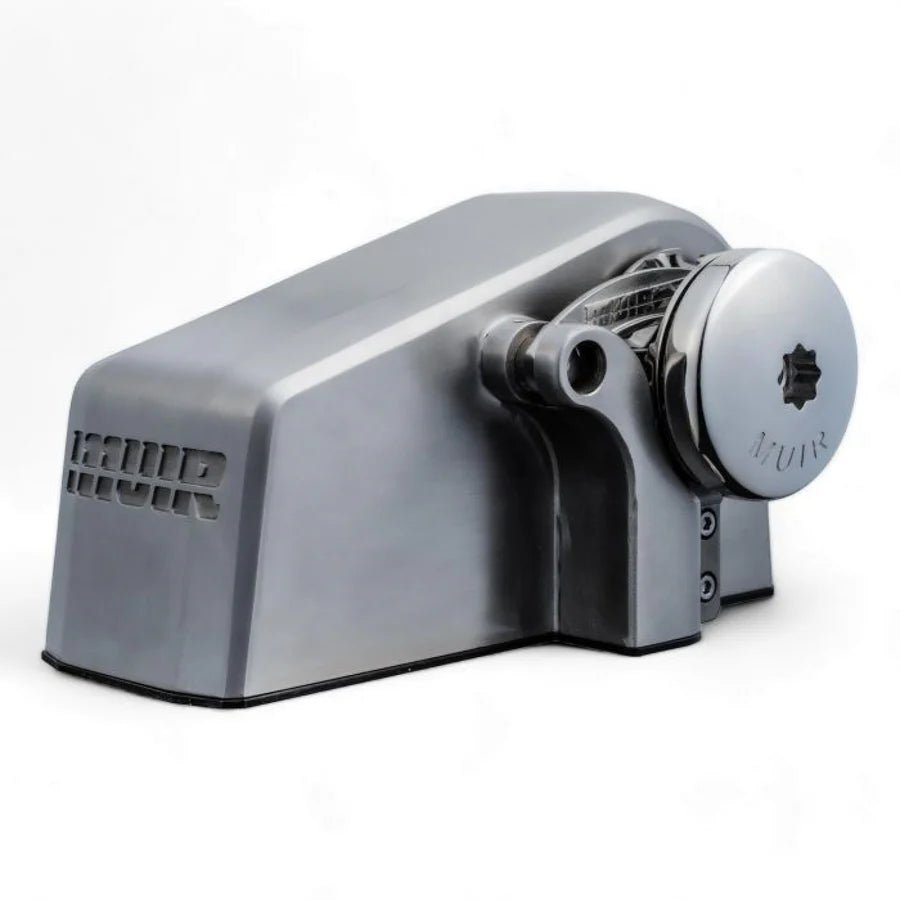

The Muir HR950 Horizontal Windlass is a powerful, heavy‑duty anchoring system designed for vessels 7–11m (23–37 ft). Featuring a bronze worm wheel in a sealed oil‑bath gearbox, the HR950 delivers exceptional torque, smooth operation, and long‑term reliability in demanding marine environments.

With a brushed 316 stainless steel housing, polished stainless components, and a robust 750W dual‑direction motor, the HR950 is engineered for serious boaters who require maximum pulling power and durability.

Key Features

• Brushed‑finish 316 stainless steel housing

• Polished stainless steel components

• High‑torque 750W dual‑direction motor

• Bronze worm wheel in oil‑bath gearbox

• Independent gypsy operation

• Four‑point power connection

• Compatible with global chain standards

• Deck switch included

Specifications

• Model: HR950

• Vessel Length: 7–11m (23–37 ft)

• Power Supply: 12V DC

• Motor: 750W

• Circuit Breaker: 80A

• Working Load: 154.7 kg

• Max Load: 464 kg

• Max Line Speed: 21 m/min

• Chain Size: 8mm (5/16”)

• Rope Size: 14mm (9/16”) 3‑strand

• Net Weight: 27 lb

• Manual Operation: N/A

Standard Package Includes

• Chain breaker & mounting post

• Deck mounting switch

• Circuit breaker

• Handle/operation tool
