- Description

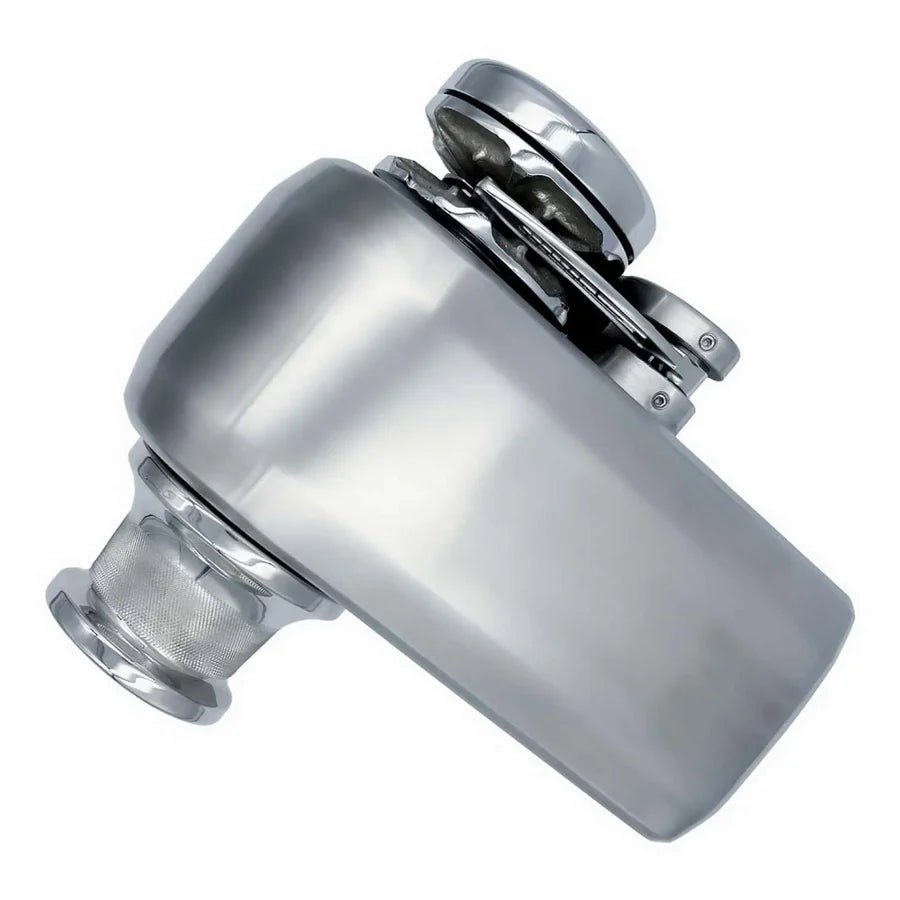

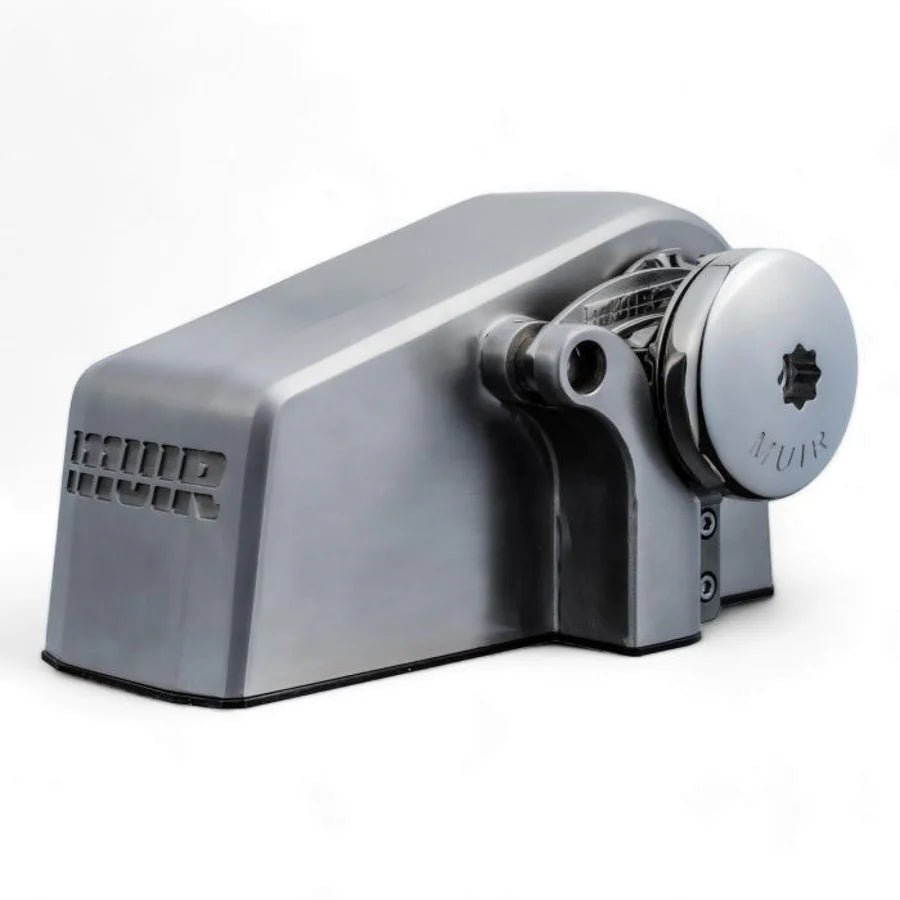

The Muir HR650 Horizontal Windlass is a compact, high‑performance anchoring solution designed for vessels 5–9m (12–30 ft). Built with a class‑leading bronze worm wheel in an oil‑bath gearbox, the HR650 delivers exceptional torque, reliability, and long‑term durability in harsh marine environments.
Constructed from brushed 316 stainless steel with polished stainless components, this windlass provides smooth, dependable operation for recreational and light‑commercial vessels.
Key Features
-
Brushed 316 stainless steel housing
-
Polished stainless steel components
-
High‑torque, heavy‑duty dual‑direction motor
-
Bronze worm wheel in sealed oil‑bath gearbox
-
Independent gypsy & capstan operation
-
Four‑point power connection
-
Compatible with multiple global chain standards
-
Includes deck switch
-
Designed for easy installation and maintenance
Specifications
-
Vessel Length: 5–9m (12–30 ft)
-
Power Supply: 12V DC
-
Motor: 550W
-
Circuit Breaker: 80A
-
Working Load: 133 kg
-
Max Load: 809 kg
-
Max Line Speed: 21 m/min
-
Chain Size: 6mm (1/4”)
-
Rope Size: 12mm (1/2”) 3‑strand
-
Net Weight: 27 lb (HR model)
-
Manual Operation: Not applicable
Standard Package Includes
-
Chain breaker & mounting post
-
Deck mounting switch
-
Circuit breaker
-
Handle/operation tool
