- Description

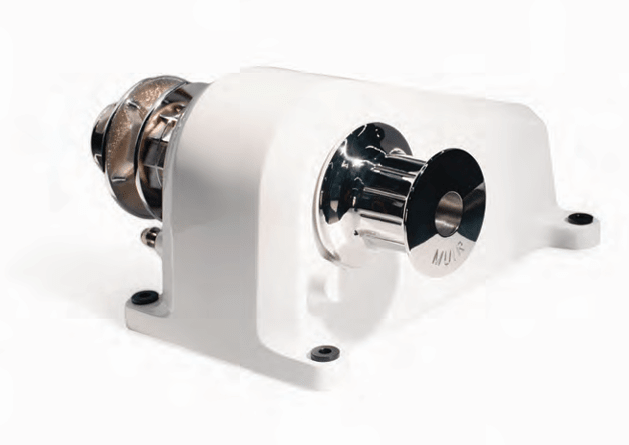

The Muir HR4200 Thor is a high‑capacity horizontal windlass engineered for vessels between 18 and 25 metres (58–82 feet). This hydraulic version is designed for continuous‑duty, high‑torque operation, making it ideal for commercial vessels and large yachts. It features a durable marine‑grade white composite housing paired with chromed bronze and 316 stainless steel running gear. The HR4200 uses a powerful hydraulic motor system that delivers consistent performance under extreme load, supported by a superior oil‑bath worm drive gearbox for smooth and reliable operation.
This model supports multiple global chain standards and is compatible with 8mm, 10mm, 13mm, and 16mm chain. It includes a high‑tensile stainless steel shaft, chain pipe and peeler, independent gypsy and capstan operation, and front double twin footings for secure mounting. The HR4200 is Auto Anchor compatible and includes the MORS manual override system for emergency operation. This version is the hydraulic drive configuration, suitable for vessels equipped with a hydraulic power system.
Specifications
Model HR4200 Thor. Vessel length 18–25m (58–82ft). Power supply hydraulic. Hydraulic pressure 12MPa (1750 PSI). Hydraulic flow 28 litres per minute (7.5 gallons per minute). Motor output equivalent 2200W. Working load 700kg (1543lb). Maximum load 2100kg (4629lb). Maximum line speed 17m/min (55ft/min). Chain compatibility 8mm (5/16”), 10mm (3/8”), 13mm (1/2”), and 16mm (5/8”). Net weight 63kg (hydraulic). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes chain pipe, deck switch, deck mounting studs and fasteners, clutch release handle, installation and operation booklet, and the MORS manual override system. (DC circuit breaker and panel are not included with hydraulic models.)
