- Description

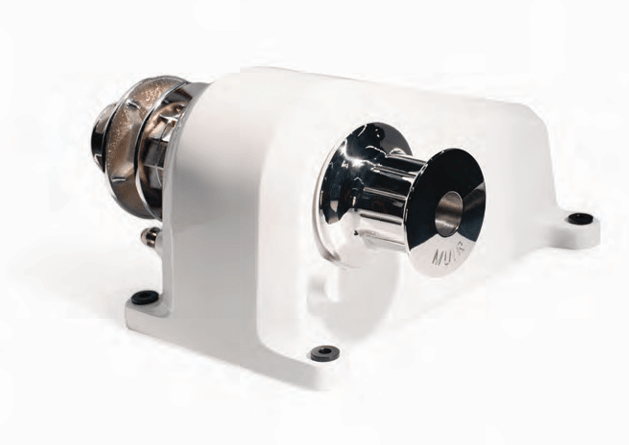

The Muir HR4200 Thor is a high‑capacity horizontal windlass engineered for vessels between 18 and 25 metres (58–82 feet). It features a durable marine‑grade white composite housing combined with chromed bronze and 316 stainless steel running gear. The HR4200 uses a powerful dual‑direction motor rated at 2200 watts, delivering exceptional pulling power and reliable anchoring performance for large yachts and commercial vessels. Its heavy‑duty oil‑bath worm drive gearbox ensures smooth, consistent operation and long service life under demanding conditions.
This model supports multiple global chain standards and is compatible with 8mm, 10mm, 13mm, and 16mm chain. It includes a high‑tensile stainless steel shaft, chain pipe and peeler, independent gypsy and capstan operation, and front double twin footings for secure mounting. The HR4200 is Auto Anchor compatible and includes the MORS manual override system for emergency operation. This version is the 24‑volt DC configuration.
Specifications
Model HR4200 Thor. Vessel length 18–25m (58–82ft). Power supply 24V DC. Motor output 2200W. Circuit breaker requirement 150A (24V). Working load 700kg (1543lb). Maximum load 2100kg (4629lb). Maximum line speed 17m/min (55ft/min). Chain compatibility 8mm (5/16”), 10mm (3/8”), 13mm (1/2”), and 16mm (5/8”). Net weight 64kg (DC). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes circuit breaker and mounting panel (DC models only), chain pipe, deck switch, deck mounting studs and fasteners, clutch release handle, installation and operation booklet, and the MORS manual override system.
