- Description

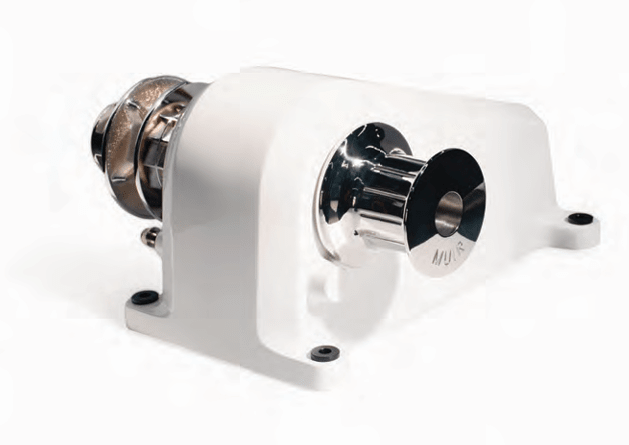

The Muir HR4000 Thor is a heavy‑duty horizontal windlass designed for vessels between 18 and 24 metres (58–79 feet). It features a durable marine‑grade white composite housing combined with chromed bronze and 316 stainless steel running gear. The HR4000 uses a powerful dual‑direction motor rated at 1700 watts, delivering strong, reliable anchoring performance for large vessels. Its oil‑bath worm drive gearbox provides smooth, consistent operation and long service life under demanding conditions.
This model supports multiple global chain standards and is compatible with 8mm, 10mm, 13mm, and 16mm chain. It includes a high‑tensile stainless steel shaft, chain pipe and peeler, independent gypsy and capstan operation, and front double twin footings for secure mounting. The HR4000 is Auto Anchor compatible and includes the MORS manual override system for emergency operation. This version is the 24‑volt DC configuration.
Specifications
Model HR4000 Thor. Vessel length 18–24m (58–79ft). Power supply 24V DC. Motor output 1700W. Circuit breaker requirement 100A (24V). Working load 600kg (1322lb). Maximum load 1800kg (3968lb). Maximum line speed 17m/min (55ft/min). Chain compatibility 8mm (5/16”), 10mm (3/8”), 13mm (1/2”), and 16mm (5/8”). Net weight 64kg (DC). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes circuit breaker and mounting panel (DC models only), chain pipe, deck switch, deck mounting studs and fasteners, clutch release handle, installation and operation booklet, and the MORS manual override system.
