- Description

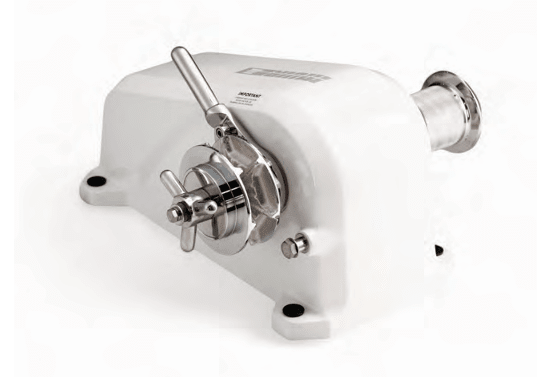

The Muir HR3500 Jaguar is a heavy‑duty horizontal windlass engineered for vessels between 14 and 20 metres (45–67 feet). This hydraulic version is built for continuous‑duty, high‑torque operation, making it ideal for commercial vessels and larger yachts. It features a durable marine‑grade white composite housing paired with chromed bronze and 316 stainless steel running gear. The HR3500 uses a powerful hydraulic motor system that delivers consistent performance under extreme load, supported by a superior oil‑bath worm drive gearbox for smooth and reliable operation.
This model supports multiple global chain standards and is compatible with 8mm, 10mm, and 13mm chain. It includes a high‑tensile stainless steel shaft, chain pipe and peeler, independent gypsy and capstan operation, and front double twin footings for secure mounting. The HR3500 is Auto Anchor compatible and includes the MORS manual override system for emergency operation. This version is the hydraulic drive configuration, requiring a vessel with a hydraulic power system.
Specifications
Model HR3500 Jaguar. Vessel length 14–20m (45–67ft). Power supply hydraulic. Hydraulic pressure 10MPa (1450 PSI). Hydraulic flow 28 litres per minute (7.5 gallons per minute). Motor output equivalent 1700W. Working load 550kg (1212lb). Maximum load 1650kg (3637lb). Maximum line speed 28m/min (91ft/min). Chain compatibility 8mm (5/16”), 10mm (3/8”), and 13mm (1/2”). Net weight 57kg (hydraulic). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes circuit breaker and mounting panel (DC models only), chain pipe, deck switch, deck mounting studs and fasteners, clutch release handle, installation and operation booklet, and the MORS manual override system.
