- Description

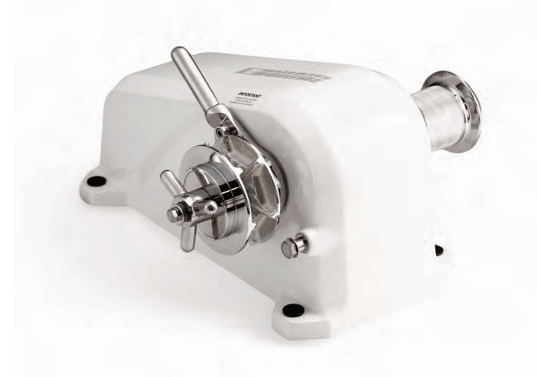

The Muir HR3500 Jaguar is a heavy‑duty horizontal windlass designed for vessels between 14 and 20 metres (45–67 feet). It features a durable marine‑grade white composite housing combined with chromed bronze and 316 stainless steel running gear. The HR3500 uses a powerful dual‑direction motor rated at 1700 watts, delivering exceptional pulling power for large vessels and demanding anchoring conditions. Its oil‑bath worm drive gearbox provides smooth, consistent operation and long service life.
This model supports multiple global chain standards and is compatible with 8mm, 10mm, and 13mm chain. It includes a high‑tensile stainless steel shaft, chain pipe and peeler, independent gypsy and capstan operation, and front double twin footings for secure mounting. The HR3500 is Auto Anchor compatible and includes the MORS manual override system for emergency operation. This version is the DC model and requires the voltage to be specified (12V, 24V, or 48V).
Specifications
Model HR3500 Jaguar. Vessel length 14–20m (45–67ft). Power supply 12V, 24V, or 48V DC. Motor output 1700W. Circuit breaker requirement 150A (12V) or 100A (24V). Working load 550kg (1212lb). Maximum load 1650kg (3637lb). Maximum line speed 28m/min (91ft/min). Chain compatibility 8mm (5/16”), 10mm (3/8”), and 13mm (1/2”). Net weight 58kg (DC). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes circuit breaker and mounting panel (DC models only), chain pipe, deck switch, deck mounting studs and fasteners, clutch release handle, installation and operation booklet, and the MORS manual override system.
