- Description

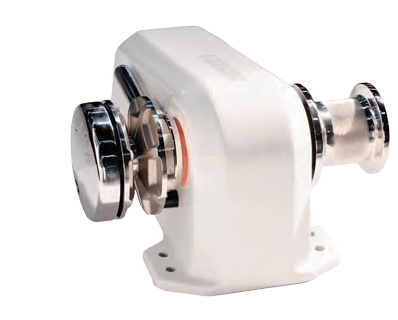

The Muir HR2500 Cheetah is a high‑capacity horizontal windlass designed for vessels between 13 and 17 metres (42–57 feet). It features a durable marine‑grade white composite housing combined with chromed bronze and 316 stainless steel running gear. The HR2500 uses a heavy‑duty dual‑direction motor rated at 1500 watts, delivering exceptional pulling power for larger vessels and demanding anchoring conditions. Its oil‑bath worm drive gearbox ensures smooth, reliable operation and long service life.
This model supports multiple global chain standards and is compatible with 8mm, 10mm, and 13mm chain. It includes a high‑tensile stainless steel shaft, gypsy lock pawl, chain pipe and panel, independent gypsy and capstan operation, and front double‑row bearings for added strength. The HR2500 is Auto Anchor compatible and includes the MORS manual override system for emergency operation. It is available in 12‑volt or 24‑volt DC configurations.
Specifications
Model HR2500 Cheetah. Vessel length 13–17m (42–57ft). Power supply 12V or 24V DC. Motor output 1500W (1200W alt rating). Circuit breaker requirement 150A (12V) or 100A (24V). Working load 400kg (881lb). Maximum load 1200kg (2645lb). Maximum line speed 28m/min (91ft/min). Chain compatibility 8mm (5/16”), 10mm (3/8”), and 13mm (1/2”). Net weight 36kg (79lb). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes deck plate switch and chain pipe cover.
The Muir HR2500 Cheetah is a high-capacity horizontal windlass engineered for vessels 13–17 metres (42–57 feet). Built with marine-grade white composite housing, chromed bronze, and 316 stainless steel components, it delivers robust performance in demanding anchoring conditions. Powered by a dual-direction 1500-watt motor, the HR2500 provides exceptional pulling force with a working load of 400kg and maximum load of 1200kg. The oil-bath worm drive gearbox ensures smooth, reliable operation and extended service life. Independent gypsy and capstan operation, front double-row bearings, and a high-tensile stainless steel shaft add durability and strength. Compatible with 8mm, 10mm, and 13mm chain standards, this model supports multiple global specifications. The MORS manual override system provides emergency operation capability, while Auto Anchor compatibility enhances convenience. Available in 12-volt or 24-volt DC configurations to match your vessel's electrical system. Standard package includes deck plate switch and chain pipe cover. Maximum line speed reaches 28m/min (91ft/min) for efficient anchor handling.
