- Description

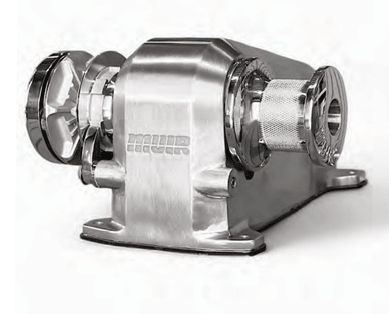

The Muir HR1600 Cougar is a heavy‑duty horizontal windlass designed for vessels between 10 and 14 metres (33–46 feet). Built with a brushed 316 stainless steel housing and polished stainless components, it delivers exceptional durability and long‑term reliability in harsh marine environments. The HR1600 uses a powerful 1200‑watt dual‑direction motor paired with a superior oil‑bath worm drive gearbox, providing smooth, consistent pulling power for demanding anchoring situations. It supports multiple global chain standards and offers simple rope and chain handling for both powerboats and sailboats.
This model includes a high‑tensile stainless steel shaft, gypsy lock and pawl, chain pipe and peeler, independent gypsy and capstan operation, and front double twin footings for secure deck mounting. The HR1600 is Auto Anchor compatible and includes a manual override (MORS) system for emergency operation. It is the 12‑volt stainless steel version of the Cougar series.
Specifications
Model HR1600 Cougar. Vessel length 10–14m (33–46ft). Power supply 12V DC. Motor output 1200W (1000W alt rating). Circuit breaker requirement 100A (12V). Working load 207kg (456lb). Maximum load 621kg (1369lb). Maximum line speed 30m/min (98ft/min). Chain compatibility 6mm (1/4”), 8mm (5/16”), and 10mm (3/8”). Net weight 25kg (55lb). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes circuit breaker and mounting panel (DC models only), chain pipe, deck switch, clutch release handle, installation and operation booklet, and deck mounting studs and fasteners.
The Muir HR1600 Cougar delivers professional-grade anchoring power for vessels 10–14 metres. Its brushed 316 stainless steel construction and polished components resist corrosion in demanding marine conditions, while the 1200-watt dual-direction motor and oil-bath worm drive gearbox provide smooth, reliable pulling force when you need it most. Engineered for versatility, the HR1600 handles multiple global chain standards (6mm, 8mm, 10mm) and works seamlessly with both rope and chain on powerboats and sailboats. Independent gypsy and capstan operation gives you precise control, and the Auto Anchor compatibility streamlines modern anchoring workflows. A manual override (MORS) system ensures you can operate the windlass even if power fails. Built tough for the job: high-tensile stainless steel shaft, gypsy lock and pawl, integrated chain pipe and peeler, and front double twin footings for secure deck mounting. The 12-volt system pulls up to 207 kg working load (621 kg maximum) at 30 m/min line speed. Includes circuit breaker, mounting panel, deck switch, and all fasteners needed for installation.
