- Description

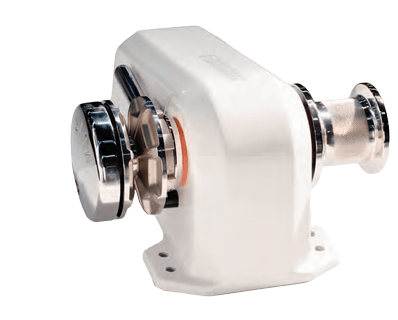

The Muir HR1600 Cougar is a compact, high‑power horizontal windlass designed for vessels between 10 and 14 metres (33–46 feet). It features a durable marine‑grade white composite housing combined with chromed bronze and 316 stainless steel running gear. The HR1600 uses a heavy‑duty dual‑direction motor rated at 1200 watts, delivering strong, reliable anchoring performance for demanding conditions. Its oil‑bath worm drive gearbox ensures smooth operation and long service life.
This model supports multiple global chain standards and is compatible with 6mm, 8mm, and 10mm chain. It includes a high‑tensile stainless steel shaft, gypsy lock pawl, chain pipe and panel, independent gypsy and capstan operation, and front double‑row bearings for added strength. The HR1600 is Auto Anchor compatible and includes the MORS manual override system for emergency operation. This version is the 12‑volt DC model.
Specifications
Model HR1600 Cougar. Vessel length 10–14m (33–46ft). Power supply 12V DC. Motor output 1200W (1000W alt rating). Circuit breaker requirement 100A (12V). Working load 207kg (456lb). Maximum load 621kg (1369lb). Maximum line speed 30m/min (98ft/min). Chain compatibility 6mm (1/4”), 8mm (5/16”), and 10mm (3/8”). Net weight 25kg (55lb). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes deck plate switch and chain pipe cover.
The Muir HR1600 Cougar is a compact, high-power horizontal windlass engineered for vessels between 10 and 14 metres. Built with marine-grade white composite housing, chromed bronze, and 316 stainless steel components, it delivers robust anchoring performance in demanding conditions. Powered by a 1200-watt dual-direction motor, the HR1600 features an oil-bath worm drive gearbox for smooth, reliable operation. It accommodates 6mm, 8mm, and 10mm chain standards and includes a high-tensile stainless steel shaft, gypsy lock pawl, independent gypsy and capstan operation, and front double-row bearings for added durability. This 12V DC model is Auto Anchor compatible and equipped with the MORS manual override system for emergency anchoring. Maximum working load reaches 207kg with line speeds up to 30m/min. Standard package includes deck plate switch and chain pipe cover. Requires 100A circuit breaker.
