- Description

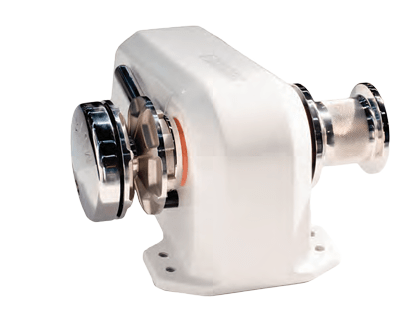

The Muir HR1600 Cougar is a powerful horizontal windlass designed for vessels between 10 and 14 metres (33–46 feet). It features a durable marine‑grade white composite housing paired with chromed bronze and 316 stainless steel running gear. The HR1600 uses a heavy‑duty dual‑direction motor rated at 1200 watts, delivering strong and reliable anchoring performance for demanding conditions. Its oil‑bath worm drive gearbox provides smooth, consistent operation and long service life.
This model supports multiple global chain standards and is compatible with 6mm, 8mm, and 10mm chain. It includes a high‑tensile stainless steel shaft, gypsy lock pawl, chain pipe and panel, independent gypsy and capstan operation, and front double‑row bearings for added strength. The HR1600 is Auto Anchor compatible and includes the MORS manual override system for emergency operation.
Specifications
Model HR1600 Cougar. Vessel length 10–14m (33–46ft). Power supply 12V DC. Motor output 1200W (1000W alt rating). Circuit breaker requirement 100A (12V). Working load 207kg (456lb). Maximum load 621kg (1369lb). Maximum line speed 30m/min (98ft/min). Chain compatibility 6mm (1/4”), 8mm (5/16”), and 10mm (3/8”). Net weight 25kg (55lb). Manual operation MORS (standard). Auto Anchor compatible.
Standard Package
Includes deck plate switch and chain pipe cover.
The Muir HR1600 Cougar is a robust horizontal windlass engineered for vessels 10–14 metres, combining marine-grade white composite housing with chromed bronze and 316 stainless steel components. Its 1200-watt dual-direction motor delivers dependable anchoring power in demanding conditions, while the oil-bath worm drive gearbox ensures smooth, long-lasting operation. Built for versatility, the HR1600 accommodates 6mm, 8mm, and 10mm chain across multiple global standards. Key features include a high-tensile stainless steel shaft, independent gypsy and capstan operation, front double-row bearings for enhanced strength, and the MORS manual override system for emergency use. Auto Anchor compatible. Specifications: 12V DC, 1200W motor, 100A circuit breaker, 207kg working load, 621kg maximum load, 30m/min line speed, 25kg net weight. Includes deck plate switch and chain pipe cover.
