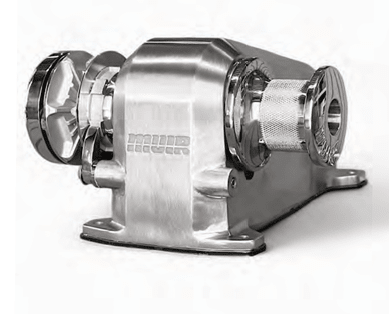

The Muir HR1200 Cougar is a premium horizontal windlass engineered for vessels 8–12m (26–39 ft). Built with a brushed 316 stainless steel housing, polished stainless components, and a heavy‑duty dual‑direction motor, the HR1200 delivers exceptional pulling power and long‑term durability.

Its oil‑bath worm drive gearbox, gypsy lock/pawl, and manual override (MORS) ensure smooth, reliable anchoring performance in demanding marine environments. Designed for both power and sailboats, the HR1200 supports multiple global chain standards and offers simple rope/chain handling.

This model (HR1200SS‑12) is the 12V stainless steel version.

Key Features

• Brushed‑finish 316 stainless steel housing

• Polished stainless steel components

• High‑tensile stainless steel shaft

• Heavy‑duty, marine‑grade dual‑direction motor

• Superior oil‑bath worm drive gearbox

• Gypsy lock/pawl

• Chain pipe & peeler

• Independent gypsy and capstan operation

• Front double twin footings

• Suits multiple global chain standards

• Deck isolation pad included

Specifications (from the full catalog page)

• Model: HR1200 Cougar

• Vessel Length: 8–12m (26–39 ft)

• Power Supply: 12V DC

• Motor: 800W

• Circuit Breaker: 80A (12V)

• Working Load: 166 kg (366 lb)

• Max Load: 500 kg (1102 lb)

• Max Line Speed: 26 m/min (85 ft/min)

• Chain Sizes: 6mm (1/4”), 8mm (5/16”), 10mm (3/8”)

• Net Weight: 25 kg (55 lb)

• Manual Operation: MORS (standard)

• Auto Anchor Compatible: Yes

Standard Package Includes

• Circuit breaker & mounting panel (DC models only)

• Chain pipe

• Deck switch

• Clutch release handle

• Installation/operation booklet

• Deck mounting studs & fasteners
