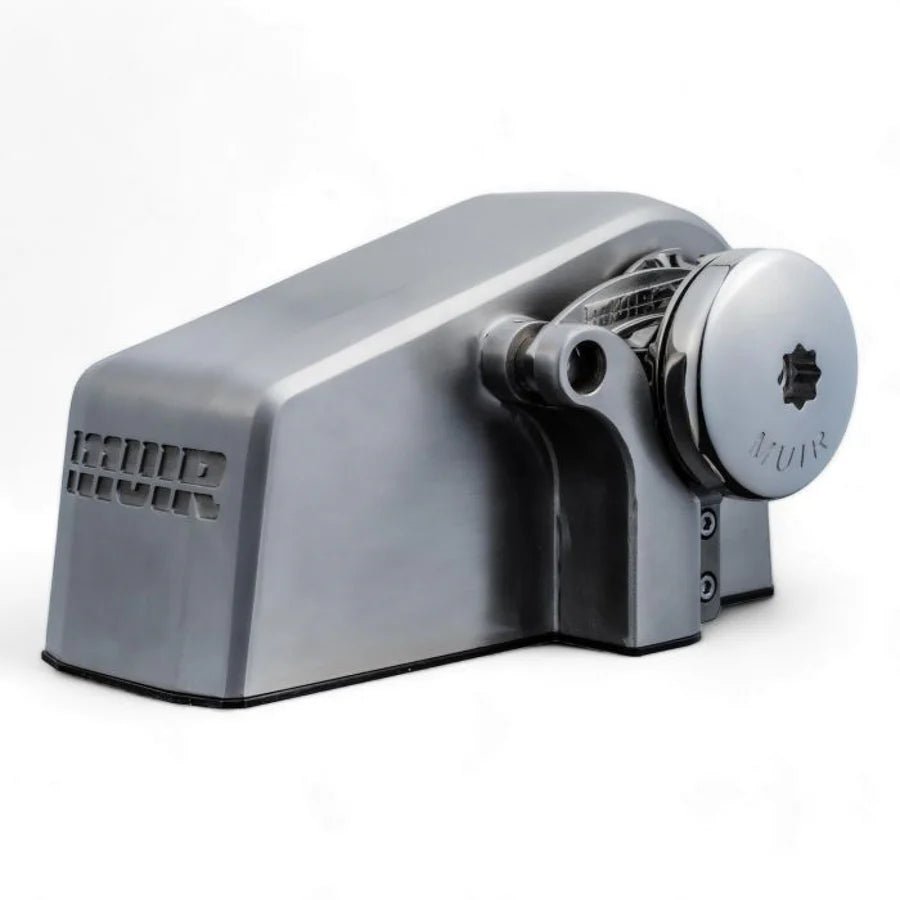

The Muir HC950 Horizontal Windlass with Capstan is a high‑performance anchoring system engineered for vessels 7–11m (23–37 ft). Featuring a bronze worm wheel in a sealed oil‑bath gearbox, the HC950 delivers exceptional torque, smooth operation, and long‑term reliability.

With a powerful 750W dual‑direction motor, brushed 316 stainless steel housing, and an integrated capstan for rope handling, the HC950 is ideal for cruisers, sport boats, and light‑commercial vessels that demand maximum pulling power and versatility.

Key Features

• Brushed‑finish 316 stainless steel housing

• Polished stainless steel components

• High‑torque 750W dual‑direction motor

• Bronze worm wheel in oil‑bath gearbox

• Integrated capstan for rope handling

• Independent gypsy & capstan operation

• Four‑point power connection

• Compatible with global chain standards

• Deck switch included

Specifications

• Model: HC950

• Vessel Length: 7–11m (23–37 ft)

• Power Supply: 12V DC

• Motor: 750W

• Circuit Breaker: 80A

• Working Load: 154.7 kg

• Max Load: 464 kg

• Max Line Speed: 21 m/min

• Chain Size: 8mm (5/16”)

• Rope Size: 14mm (9/16”) 3‑strand

• Net Weight: 29 lb

• Manual Operation: N/A

Standard Package Includes

• Chain breaker & mounting post

• Deck mounting switch

• Circuit breaker

• Handle/operation tool
