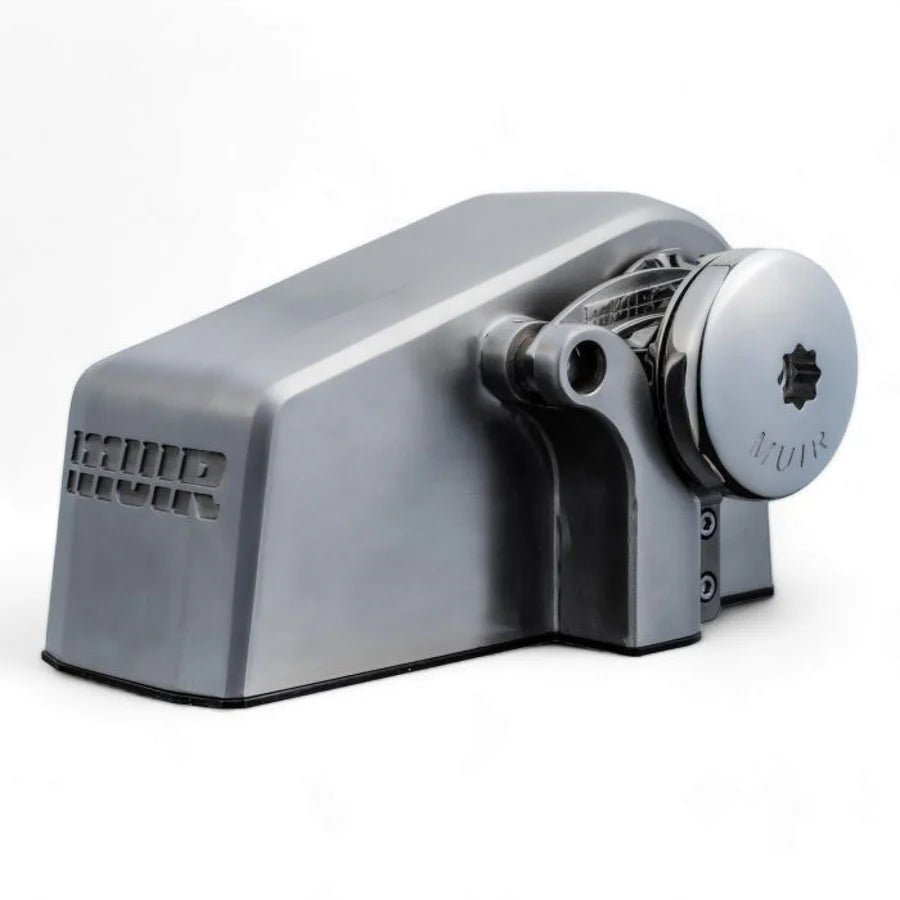

The Muir HC650 Horizontal Windlass with Capstan delivers powerful, reliable anchoring performance for vessels 5–9m (12–30 ft). Built with a bronze worm wheel in a sealed oil‑bath gearbox, the HC650 provides exceptional torque, smooth operation, and long‑term durability.

The integrated capstan adds versatility for rope handling, making it ideal for cruisers, sport boats, and light‑commercial vessels. With a brushed 316 stainless steel housing and polished stainless components, the HC650 is engineered to withstand harsh marine environments.

Key Features

• Brushed‑finish 316 stainless steel housing

• Polished stainless steel components

• High‑torque 550W dual‑direction motor

• Bronze worm wheel in oil‑bath gearbox

• Integrated capstan for rope handling

• Independent gypsy & capstan operation

• Four‑point power connection

• Compatible with global chain standards

• Deck switch included

Specifications

• Model: HC650

• Vessel Length: 5–9m (12–30 ft)

• Power Supply: 12V DC

• Motor: 550W

• Circuit Breaker: 80A

• Working Load: 133 kg

• Max Load: 809 kg

• Max Line Speed: 21 m/min

• Chain Size: 6mm (1/4”)

• Rope Size: 12mm (1/2”) 3‑strand

• Net Weight: 29 lb

• Manual Operation: N/A

Standard Package Includes

• Chain breaker & mounting post

• Deck mounting switch

• Circuit breaker

• Handle/operation tool
