- Description

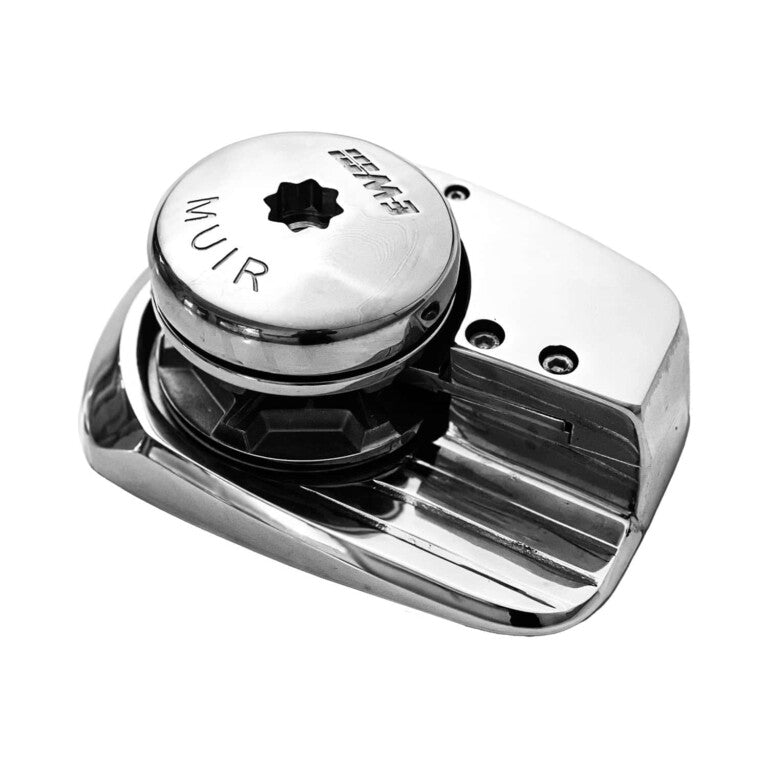

Muir Easyweigh V900 Windlass – 12V, 600W with 1/4" G4 Chain Kit
The Muir Easyweigh V900 Windlass is a compact and efficient anchoring solution designed for vessels between 6 and 11 metres (20–39 feet). Featuring a polished stainless steel deck unit and a rope-chain management system (RCMS), the V900 ensures smooth and reliable anchor deployment and retrieval.
Built for performance and durability, this vertical windlass is ideal for boats requiring a clean deck layout with below-deck motor installation. It provides dependable anchoring capability for recreational vessels and meets multiple global chain standards.
This package includes a 12-volt DC configuration with a 600W motor and is supplied with a 1/4" G4 chain kit, making it a complete anchoring solution ready for installation.
Specifications
Model V900. Vessel length 6–11m (20–39ft). Power supply 12V DC. Motor output 900W. Circuit breaker requirement 100A. Amps work load 80A. Maximum load 300kg. Working load 100kg. Maximum line speed 23m/min (75ft/min). Chain size 6mm (1/4”) or 8mm (5/16”). Rope size (3 ply) 12mm (1/2”) or 14mm (9/16”). Net weight 9kg. Manual operation N/A. Rope Chain Management System (RCMS) fitted.
Features
- Polished stainless steel deck unit
- Rope Chain Management System (RCMS) fitted
- Compact vertical windlass design
- Smooth and reliable anchor handling
- Suitable for multiple global chain standards
- Ideal for boats with below-deck motor setup
- Lightweight and efficient anchoring solution
Standard Package (Included)
Circuit breaker & mounting panel, deck switch, deck mounting studs and fasteners, clutch release handle, reversing solenoid kit, installation/operation booklet
