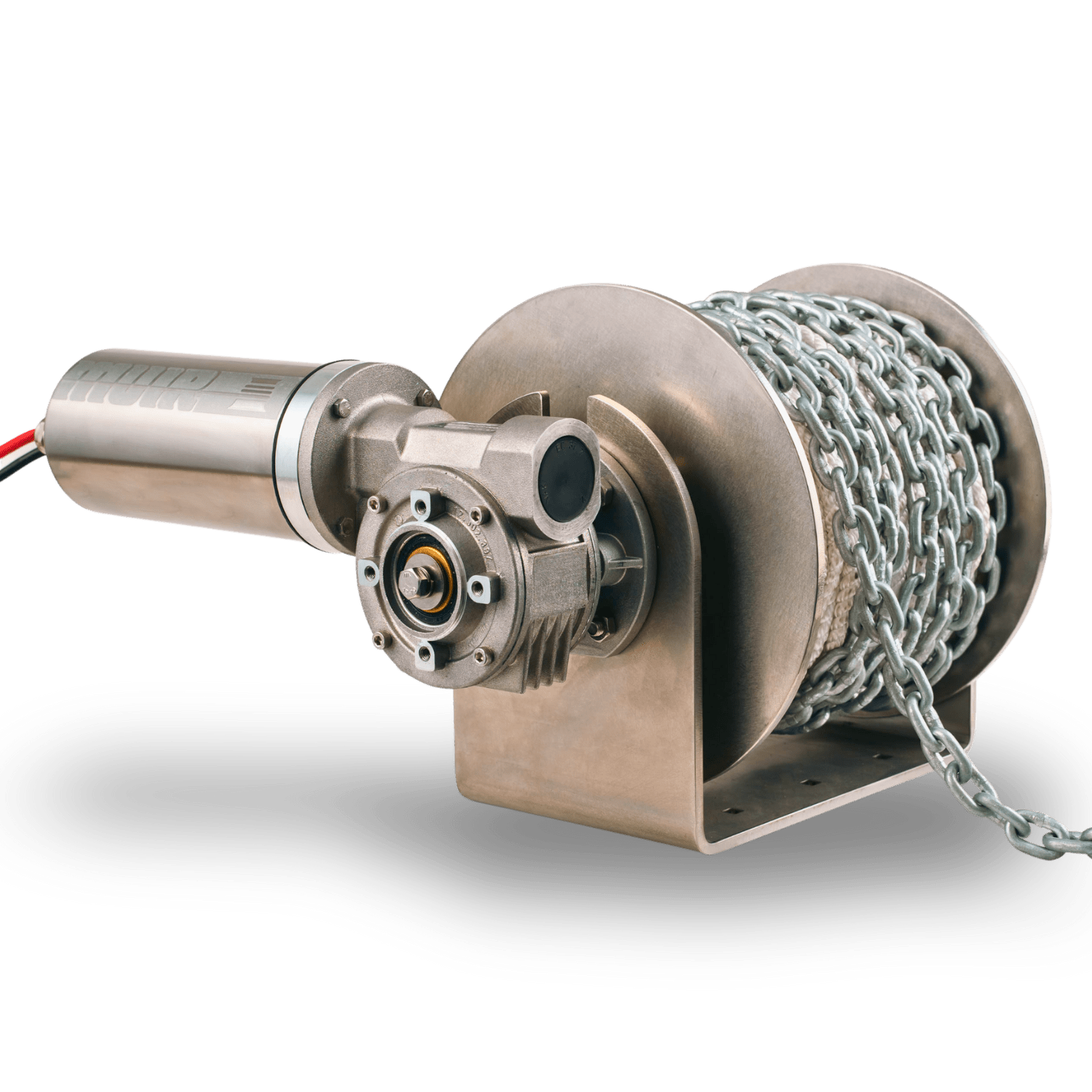

Muir DW15 Drum Windlass Package – 12V, 1700W

The Muir DW15 Drum Windlass is a heavy-duty anchoring system designed for vessels between 12 and 14 metres (40–49 feet). It features a marine-grade 316 stainless steel drum, a powerful dual-direction motor, and a superior oil-bath worm drive gearbox for smooth and reliable operation. The DW15 is ideal for larger vessels requiring higher load capacity, offering dependable performance for both recreational and light-commercial applications.

This package includes the full 12-volt DC configuration with a 1700-watt motor, circuit breaker, reversing solenoid, and toggle helm switch. The DW15 provides power-up and power-down operation for controlled anchoring in demanding marine conditions. It is designed to handle 10mm or 12mm chain and 12mm rope, with drum capacity suitable for larger vessel anchoring systems.

Specifications
Model DW15. Vessel length 12–14m (40–49ft). Power supply 12V DC. Motor output 1700W. Circuit breaker requirement 150A (12V). Working load 130kg at 25m/min. Maximum load 390kg at 8m/min. Maximum line speed 25m/min. Chain size 10mm (3/8”) or 12mm (1/2”). Rope size 12mm (1/2”). Drum capacity 120m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Net weight 35–37kg. Oil-bath worm drive gearbox. Power-up/power-down operation.

Standard Package (Included)
Circuit breaker & mounting panel, reversing solenoid kit, helm toggle switch & panel, deck mounting studs and fasteners, installation/operation booklet.

The Muir DW15 Drum Windlass is a heavy-duty anchoring system engineered for vessels between 12 and 14 metres (40–49 feet). Built with marine-grade 316 stainless steel construction and a superior oil-bath worm drive gearbox, it delivers smooth, reliable performance in demanding marine conditions. The dual-direction motor provides controlled power-up and power-down anchoring operation. This complete 12-volt DC package includes a 1700-watt motor, 150A circuit breaker, reversing solenoid, and toggle helm switch—everything needed for installation and operation. The DW15 handles 10mm or 12mm chain and 12mm rope, with drum capacity of 120m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Key Specifications Model: DW15 Vessel length: 12–14m (40–49ft) Power supply: 12V DC Motor output: 1700W Working load: 130kg at 25m/min Maximum load: 390kg at 8m/min Maximum line speed: 25m/min Chain size: 10mm (3/8") or 12mm (1/2") Rope size: 12mm (1/2") Net weight: 35–37kg What's Included Circuit breaker and mounting panel Reversing solenoid kit Helm toggle switch and panel Deck mounting studs and fasteners Installation and operation booklet Ideal for recreational and light-commercial applications requiring dependable anchoring performance.
