  • Description

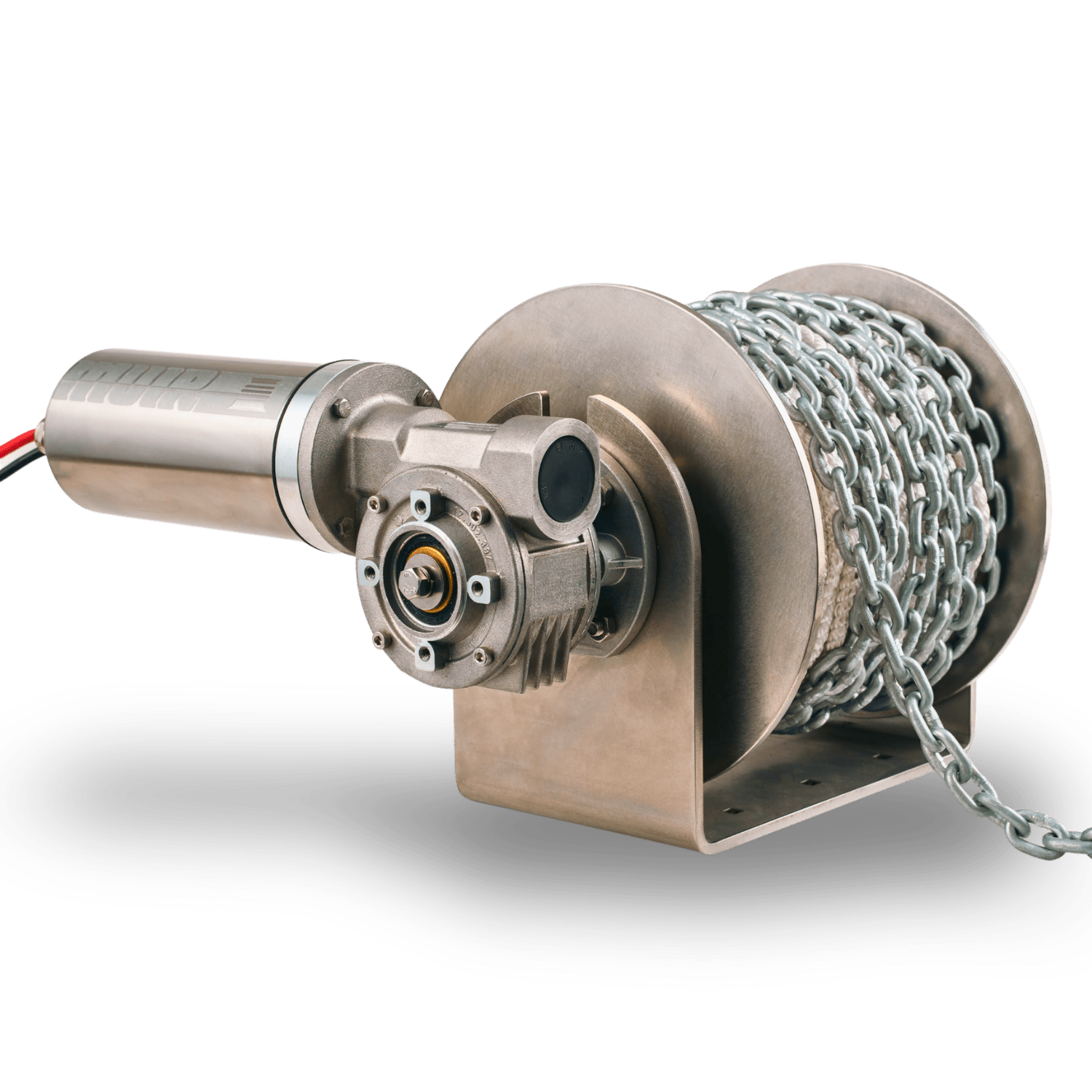

The Muir DW10 Drum Windlass is a high-performance anchoring system designed for vessels between 8 and 10 metres (26–36 feet). It features a marine-grade 316 stainless steel drum, a heavy-duty dual-direction motor, and a superior oil-bath worm drive gearbox for smooth and reliable operation. The DW10 is ideal for boats with limited anchor locker space, offering simple installation and dependable performance for both recreational and light-commercial vessels.

This package includes the full 12-volt DC configuration with a 1200-watt motor, circuit breaker, reversing solenoid, and toggle helm switch. The DW10 provides power-up and power-down operation, delivering consistent anchoring performance in demanding marine conditions. It is designed to handle 8mm or 10mm chain and 10mm rope, with drum capacity suitable for mid-size vessel anchoring systems.

Specifications
Model DW10. Vessel length 8–10m (26–36ft). Power supply 12V DC. Motor output 1200W. Circuit breaker requirement 100A (12V). Working load 87kg at 33m/min. Maximum load 261kg at 7m/min. Maximum line speed 33m/min. Chain size 8mm (5/16”) or 10mm (3/8”). Rope size 10mm (3/8”). Drum capacity 120m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Net weight 30kg. Oil-bath worm drive gearbox. Power-up/power-down operation.

Standard Package (Included)
Circuit breaker & mounting panel, reversing solenoid kit, helm toggle switch & panel, deck mounting studs and fasteners, installation/operation booklet.

The Muir DW10 Drum Windlass is a high-performance anchoring system designed for vessels between 8 and 10 metres (26–36 feet). It features a marine-grade 316 stainless steel drum, a heavy-duty dual-direction motor, and a superior oil-bath worm drive gearbox for smooth and reliable operation. The DW10 is ideal for boats with limited anchor locker space, offering simple installation and dependable performance for both recreational and light-commercial vessels. This package includes the full 12-volt DC configuration with a 1200-watt motor, circuit breaker, reversing solenoid, and toggle helm switch. The DW10 provides power-up and power-down operation, delivering consistent anchoring performance in demanding marine conditions. It is designed to handle 8mm or 10mm chain and 10mm rope, with drum capacity suitable for mid-size vessel anchoring systems. Specifications Model DW10. Vessel length 8–10m (26–36ft). Power supply 12V DC. Motor output 1200W. Circuit breaker requirement 100A (12V). Working load 87kg at 33m/min. Maximum load 261kg at 7m/min. Maximum line speed 33m/min. Chain size 8mm (5/16") or 10mm (3/8"). Rope size 10mm (3/8"). Drum capacity 120m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Net weight 30kg. Oil-bath worm drive gearbox. Power-up/power-down operation. Standard Package (Included) Circuit breaker & mounting panel, reversing solenoid kit, helm toggle switch & panel, deck mounting studs and fasteners, installation/operation booklet.
