- Description

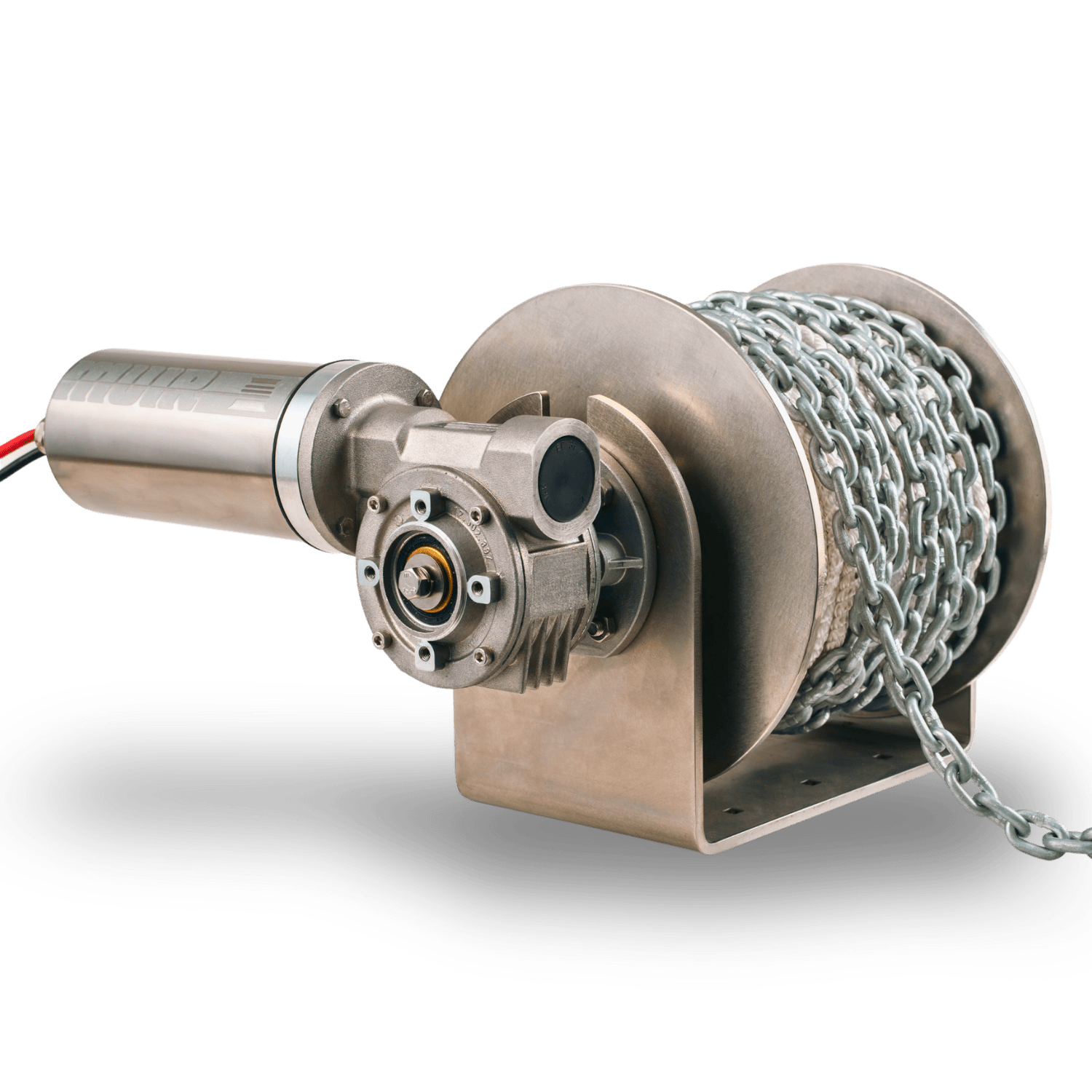

The Muir DW08 Drum Windlass is a compact, high‑performance anchoring system designed for vessels between 5 and 8 metres (16–28 feet). It features a marine‑grade 316 stainless steel drum, a heavy‑duty dual‑direction motor, and a superior oil‑bath worm drive gearbox for smooth, reliable operation. The DW08 is ideal for boats with limited anchor locker space, offering simple installation and dependable performance for recreational and light‑commercial vessels.
This package includes the full 12‑volt DC configuration with an 800‑watt motor, circuit breaker, reversing solenoid, and toggle helm switch. The DW08 provides power‑up and power‑down operation, with the ability to manually freefall by loosening the dedutcher. It is designed to handle 6mm or 8mm chain and 8mm rope, with drum capacity suitable for typical mid‑size vessel anchoring systems.
Specifications
Model DW08. Vessel length 5–8m (16–28ft). Power supply 12V DC. Motor output 800W. Circuit breaker requirement 100A (12V). Working load 60kg at 33m/min. Maximum load 180kg at 7m/min. Maximum line speed 33m/min. Chain size 6mm (1/4”) or 8mm (5/16”). Rope size 8mm (5/16”). Drum capacity 100m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Net weight 15–16kg. Oil‑bath worm drive gearbox. Power‑up/power‑down operation with manual freefall capability.
Standard Package (Included)
Circuit breaker & mounting panel, reversing solenoid kit, helm toggle switch & panel, deck mounting studs and fasteners, installation/operation booklet.
