- Description

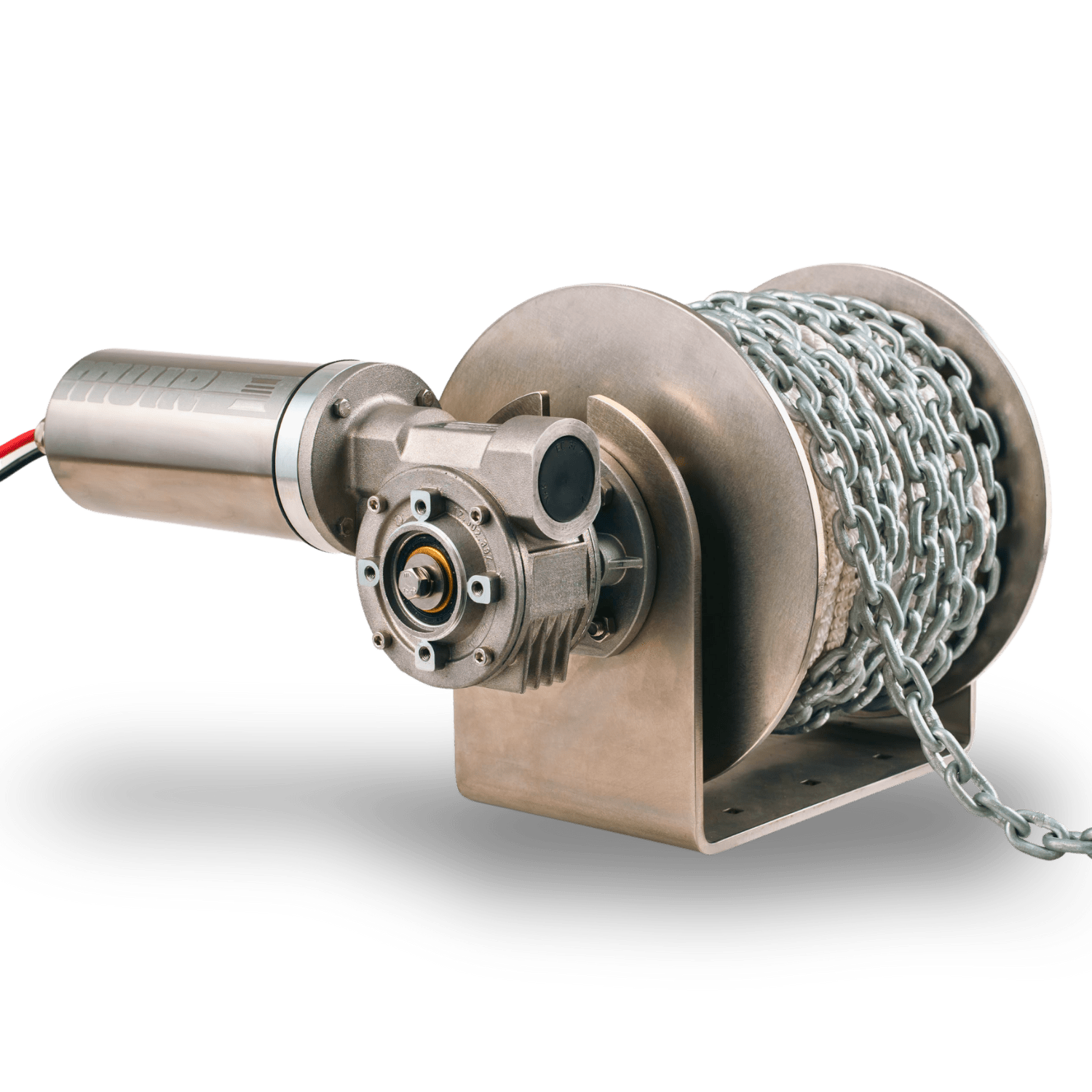

The Muir DW06 Drum Windlass is a compact anchoring system designed for vessels between 4 and 7 metres (12–16 feet). It features a marine‑grade 316 stainless steel drum, a heavy‑duty dual‑direction motor, and a superior oil‑bath worm drive gearbox for smooth, reliable operation. The DW06 is ideal for boats with limited anchor locker space, offering simple installation and dependable performance for small craft.
This package includes the full 12‑volt DC configuration with a 550‑watt motor, circuit breaker, reversing solenoid, and toggle helm switch. The DW06 provides power‑up and power‑down operation, with the ability to manually freefall by loosening the dedutcher. It is designed to handle 6mm chain and 6mm rope, with a drum capacity suitable for typical small‑vessel anchoring systems.
Specifications
Model DW06. Vessel length 4–7m (12–16ft). Power supply 12V DC. Motor output 550W. Circuit breaker requirement 80A. Working load 40kg at 33m/min. Maximum load 120kg at 6m/min. Maximum line speed 33m/min. Chain size 6mm (1/4”). Rope size 6mm (1/4”). Drum capacity 50m of 6mm rope plus 5m of 6mm chain. Net weight 15–16kg. Oil‑bath worm drive gearbox. Power‑up/power‑down operation with manual freefall capability.
Standard Package (Included)
Circuit breaker & mounting panel, reversing solenoid kit, helm toggle switch & panel, deck mounting studs and fasteners, installation/operation booklet.
