- Description

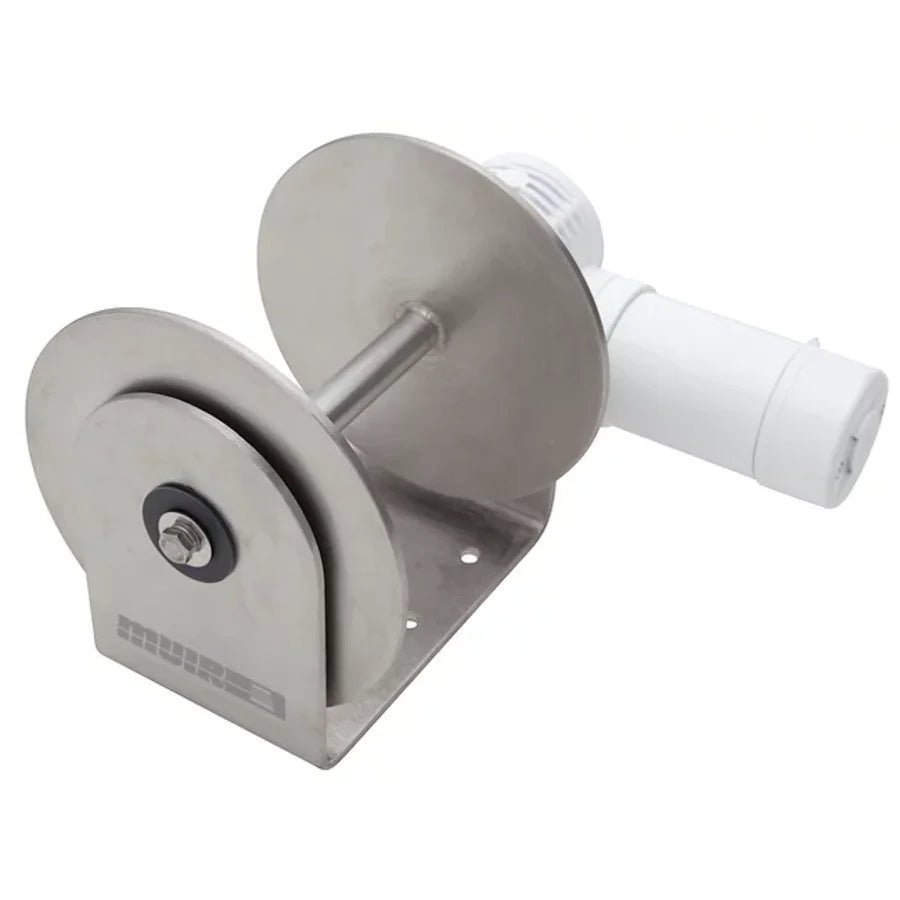

The Muir DFF10 Free Fall Drum Winch is a high-performance anchoring system designed for vessels between 8 and 10 metres (26–36 feet). It features a marine-grade 316 stainless steel drum, a heavy-duty dual-direction motor, and a superior oil-bath worm drive gearbox for smooth and reliable operation. The DFF10 is ideal for boats requiring fast anchor deployment with efficient retrieval, making it suitable for both recreational and light-commercial applications.
This package includes the full 12-volt DC configuration with a 1200-watt motor, circuit breaker, reversing solenoid, and toggle helm switch. The DFF10 provides powered retrieval with manual free fall deployment, allowing quick anchor release when needed. It is designed to handle 8mm or 10mm chain and 10mm rope, with drum capacity suitable for mid-size vessel anchoring systems.
Specifications
Model DFF10. Vessel length 8–10m (26–36ft). Power supply 12V DC. Motor output 1200W. Circuit breaker requirement 100A (12V). Working load 87kg at 33m/min. Maximum load 261kg at 7m/min. Maximum line speed 33m/min. Chain size 8mm (5/16”) or 10mm (3/8”). Rope size 10mm (3/8”). Drum capacity 120m of 6mm rope or 80m of 8mm rope plus 5m of 8mm chain. Net weight 30–31kg. Oil-bath worm drive gearbox. Power-up operation with manual free fall capability.
Standard Package (Included)
Circuit breaker & mounting panel, reversing solenoid kit, helm toggle switch & panel, deck mounting studs and fasteners, installation/operation booklet.
